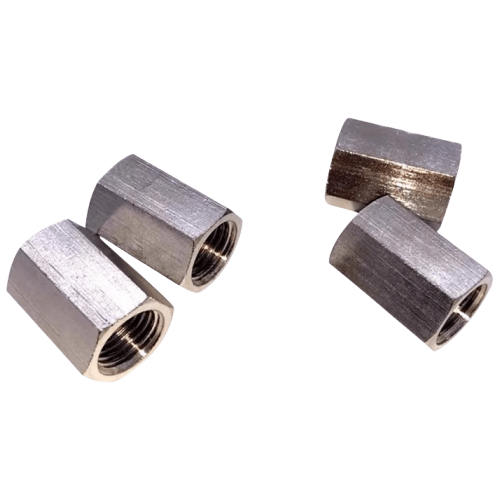

Airtac X-AUA Union - Female Thread Straight X-AUA02
AirTAC X-AUA02 Female Threaded Straight Connector Specifications
- Model: X-AUA02
- Type: Female threaded straight connector (BSPP thread)
- Thread specification: G1/8 (ISO 228-1 compliant)
- Material: Lead-free brass alloy (CuZn39Pb0.5)
- Surface treatment: Electroless nickel plating (5-8μm thickness)
- Pressure rating: 0.05-1.0 MPa (7-145 PSI)
- Burst pressure: ≥3.0 MPa (435 PSI)
- Temperature range: -20℃ to 120℃ (continuous use)
- Seal material: NBR (Nitrile) O-ring (70±5 Shore A)
- Weight: 18.5±0.5g
- Dimensions: 20mm(Length) × 14mm(Width) × 14mm(Height)
- Thread engagement depth: 7.5mm
- Flow coefficient (Cv): 0.15
- Compatibility: Air, inert gases, and non-flammable hydraulic fluids
- Certification: RoHS compliant, REACH SVHC-free
Precision-machined pneumatic connector featuring leak-proof tapered thread design with 360° rotatable union nut. The electroless nickel coating provides superior corrosion resistance in humid environments. Internal flow path optimized for minimal pressure drop (ΔP < 0.02MPa at 0.5MPa supply).
- Pneumatic cylinder port connections in automation lines
- Modular assembly of FRL (Filter-Regulator-Lubricator) units
- Vacuum system plumbing for packaging machinery
- Medical gas line junctions (oxygen/nitrogen supply)
- Robotic end-effector air supply interfaces
Installation guidelines:
Apply 2-3 wraps of PTFE tape on male threads (do not over-tighten - recommended torque 12-15N·m).
For vertical installations, orient seal groove downward to prevent debris accumulation.
Perform pressure test at 1.5x working pressure after assembly.
| Property | Property Value |
|---|---|
| sku | X-AUA02 |
