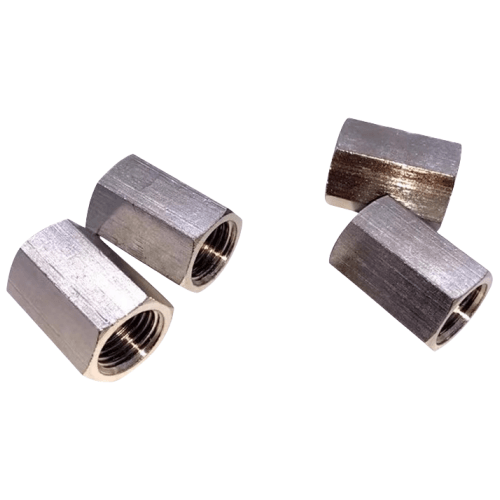

Airtac X-AUA Union - Female Thread Straight X-AUA03
AirTAC X-AUA03 Internal Thread Straight Connector Specifications
- Model: X-AUA03
- Type: Metric straight thread (internal thread)
- Thread specification: M5×0.8 (female)
- Material: Cold forged brass (CuZn39Pb3) with nickel plating
- Surface hardness: ≥HV200
- Pressure rating: 0.2–1.5 MPa
- Burst pressure: ≥8 MPa
- Temperature range: -5℃ to 100℃
- Seal type: Embedded O-ring (NBR material)
- Flow coefficient (Cv): 0.15
- Weight: 4.2±0.3g
- Dimensions: 12mm(OD) × 16mm(L) × 8mm(Hex)
- Thread engagement depth: 6mm
- Surface treatment: Electroless nickel plating (5-8μm)
- Certification: RoHS compliant
Precision-engineered straight connector featuring cold-forged construction for enhanced structural integrity. The 60° cone sealing surface ensures leak-proof connections in dynamic pressure conditions. Nickel plating provides corrosion resistance against hydraulic oils and mild chemicals.
- Pneumatic circuit branching in automation equipment
- Sensor mounting interfaces on robotic arms
- Modular pneumatic manifold assemblies
- Compressed air distribution in packaging lines
- Vacuum system connections for material handling
Installation guidance:
Apply PTFE tape or liquid sealant on male threads before assembly.
Tighten to 0.7-1.2 N·m torque using 8mm wrench. Avoid overtightening
to prevent thread deformation. Inspect O-ring for debris before installation.
| Property | Property Value |
|---|---|
| sku | X-AUA03 |
