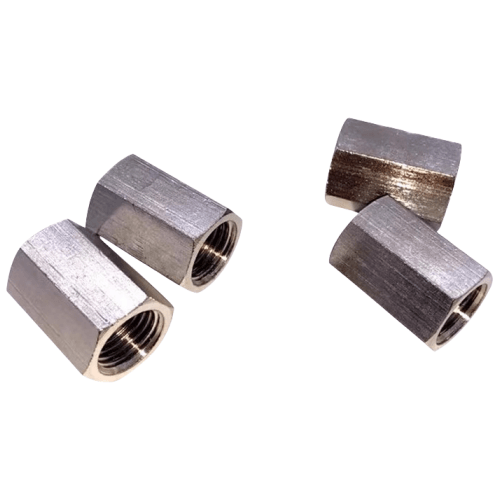

Airtac X-AUA Union - Female Thread Straight X-AUA04
AirTAC X-AUA04 Internal Thread Straight Fitting Specifications
- Model: X-AUA04
- Type: Female-threaded straight connector (BSPP/BSPT)
- Thread standard: ISO 228 (G-thread) / ISO 7 (R-thread)
- Port size: 1/8" (G1/8 or R1/8)
- Material: Brass (CuZn39Pb3) with nickel plating
- Pressure rating: 0.5-1.5 MPa (72-217 PSI)
- Temperature range: -20℃ to 80℃ (continuous use)
- Seal type: Embedded O-ring (NBR rubber)
- Surface treatment: Electroless nickel plating (5-8μm)
- Weight: 18.5g ±0.5g
- Dimensions: 30mm(L) × 12mm(OD) × 10mm(ID passage)
- Torque specification: 10-12 N·m (installation)
- Compatibility: Works with PU, nylon, and rubber tubing (4mm OD)
- Certifications: RoHS compliant, ISO 9001:2015
Precision-engineered straight connector featuring dual-thread compatibility (BSPP/BSPT) for universal pneumatic system integration. The electroless nickel plating provides superior corrosion resistance in humid environments, while the captive NBR O-ring ensures leak-free connections up to 1.5 MPa. Designed with a compact hexagonal body for tool grip during installation.
- Modular pneumatic circuit assembly in automation cells
- Vacuum system interconnections for pick-and-place robots
- Cooling air line distribution in laser cutting machines
- Medical gas handling equipment manifolds
- Compressed air branching in automotive test benches
Installation protocol:
Apply thread sealant only to male threads (not required for BSPP with O-ring).
Tighten using a 12mm open-end wrench on the hex body while holding the mating component stationary.
Maximum angular misalignment tolerance: 3°.
