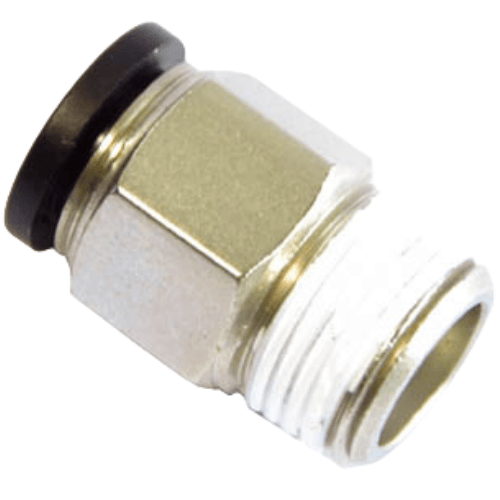

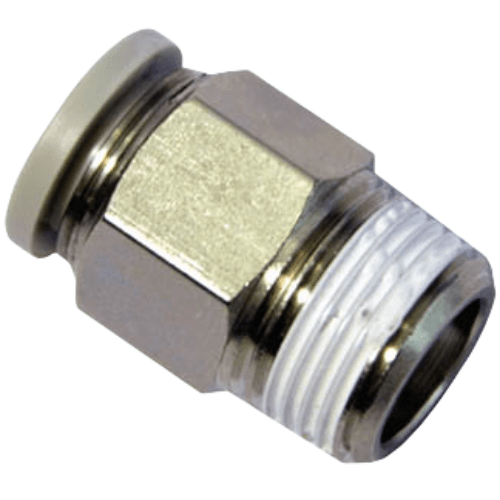

Airtac X-EPC Threaded Straight Adapter X-EPC16M20
AirTAC X-EPC16M20 Threaded Straight Fitting Detailed Specifications
- Model: X-EPC16M20
- Series: X-EPC (Metal Threaded Connector Series)
- Thread type: Metric coarse thread (external)
- Thread size: M20×1.5
- Port connection: G1/4 (BSPP) female thread
- Material: Brass (nickel-plated) / Carbon steel (zinc-plated)
- Max working pressure: 20 bar (290 psi)
- Burst pressure: ≥60 bar (870 psi)
- Temperature range: -20℃ to +80℃ (-4°F to 176°F)
- Seal material: NBR (standard) / FKM (optional)
- Surface treatment: Electroplated corrosion protection
- Weight: 118g ±2g
- Dimensions: 60mm(L) × 16mm(Dia) × 16mm(Port width)
- Flow coefficient (Cv): 0.45
- Compliance: ISO 228 (G-series threads)
- IP rating: IP40 (dust protected)
Heavy-duty pneumatic connector featuring dual-thread design (M20 external + G1/4 internal) for secure pipeline transitions. Precision-machined with triple-lead thread for vibration resistance, compatible with most industrial lubricants. Includes integrated O-ring groove for leak-free sealing under dynamic pressure variations.
- Pneumatic cylinder port adapters in assembly lines
- Compressed air distribution manifolds
- Hydraulic test bench connections (non-corrosive fluids)
- Robotic arm tooling interfaces
- CNC machine pneumatic clutch linkages
Installation protocol:
Apply 25-30 N·m torque during assembly. Use thread sealant only on male threads,
avoiding contamination of sealing surfaces. Perform pressure test at 1.5×
working pressure after installation.
Compatibility note:
Not recommended for use with acetylene or oxygen systems.
Max angular misalignment tolerance: 3° for optimal seal life.
