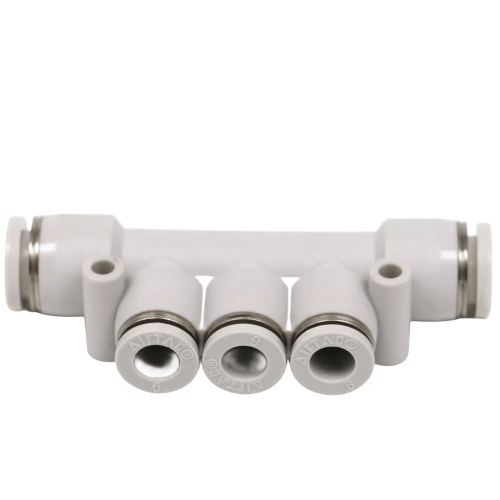

Airtac X-EPKG Reducing Five-Way Fitting X-EPKG64
AirTAC X-EPKG64 Reducing Tee Fitting (Quintuple Port) Technical Details
- Model: X-EPKG64
- Type: Reducing tee manifold with 5 ports
- Primary port size: PT1/8 (G1/8)
- Secondary port sizes: PT1/4 (G1/4) ×4 ports
- Material: Aluminum alloy ADC12 with oxidation treatment
- Seal material: NBR (Nitrile) rubber
- Pressure range: 0.2-1.0 MPa
- Temperature range: -5℃ to 80℃
- Weight: 218±5g
- Dimensions: 80mm(L) × 50mm(W) × 50mm(H)
- Thread standard: ISO 228 (G-series parallel threads)
- Surface hardness: HV 120±15
- Leakage rate: ≤3 bubbles/min under 0.5 MPa
- Vibration resistance: 10-55Hz, 1.5mm amplitude
High-density pneumatic distribution block designed for multi-branch piping systems requiring flow reduction. Features precision-machined internal channels (Ø3.5mm primary restriction) for balanced pressure distribution. Anodized surface provides corrosion resistance in humid environments. Compatible with ISO 15407-1 standard actuators.
- Multi-cylinder synchronization systems
- Compact pneumatic control panels
- Automated assembly line manifolds
- Plastic injection molding machine air circuits
- Semiconductor manufacturing equipment
Installation protocol:
Apply 2-3 wraps of PTFE tape on male threads. Tighten to 12-15N·m torque using crowfoot wrench.
Maintain 30°C minimum ambient temperature during sealant curing.
- Max flow capacity: 350 NL/min (ANR)
- Pressure drop: ≤0.02 MPa at 0.5 MPa supply
- Flow direction: Bi-directional (non-restrictive)
| Property | Property Value |
|---|---|
| sku | X-EPKG64 |
