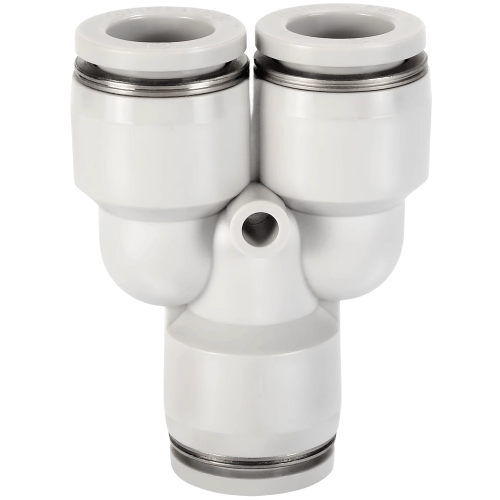

Airtac X-EPY Connector - Y Type Tee X-EPY4
AirTAC X-EPY4 Y-Type Tee Fitting Specifications
- Model: X-EPY4
- Type: Y-shaped three-way connector (equal distribution)
- Thread standard: Metric (M5×0.8) / Optional NPT 1/8"
- Material: Nickel-plated brass (standard) / Stainless steel (SS304 optional)
- Max working pressure: 1.5 MPa (217 psi)
- Burst pressure: ≥4.5 MPa (653 psi)
- Temperature range: -20℃ to 150℃
- Surface hardness: HV0.3 ≥200
- Flow coefficient (Cv): 0.23
- Weight: 15g ±0.5g
- Dimensions: 24mm(L) × 19mm(W) × 19mm(H)
- Seal compatibility: Compatible with air, inert gases, and light hydraulic fluids
- Vibration resistance: 10-2000Hz, 20m/s² max
Precision-engineered Y-connector featuring triple-helix flow channels for balanced pressure distribution. The 120° branch angle minimizes turbulence and pressure drop during flow division/combination. Nickel plating provides corrosion resistance exceeding 96hrs in salt spray tests. Designed for high-cycle applications with integrated O-ring grooves for leak-free connections.
- Pneumatic circuit branching in automated assembly lines
- Vacuum system manifold distribution
- Medical gas line splitting equipment
- Robotic end-effector air supply networks
- Compressed air instrumentation systems
Installation note:
Apply thread sealant to male threads only. Avoid overtightening beyond 1.5Nm torque.
For vertical mounting, orient Y-axis perpendicular to gravity vector to prevent particle accumulation.
- Laminar flow transition at 12-15 L/min (ANR)
- Pressure loss ≤0.02MPa at 0.5MPa supply pressure
- Optimal flow velocity: 15-25 m/s
| Property | Property Value |
|---|---|
| sku | X-EPY4 |
