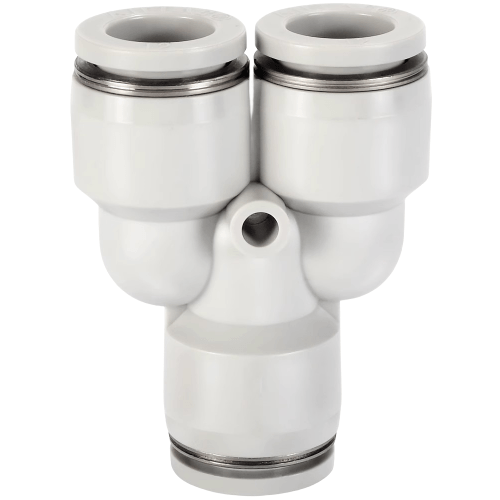

Airtac X-EPY Connector - Y Type Tee X-EPY8
AirTAC X-EPY8-Y Tee Fitting (Y-Type Connector) Technical Details
- Model: X-EPY8-Y
- Type: Y-shaped triple union (equal tee)
- Material: Brass with nickel plating (stainless steel optional)
- Thread standard: G1/8 (BSPP) / PT1/8 (NPT optional)
- Port configuration: Three M5 female threads (one inlet, two outlets)
- Pressure rating: 0.05-1.0 MPa
- Temperature range: -20℃ to 80℃ (with NBR seals)
- Weight: 15g ±0.5g
- Dimensions: 30mm (L) × 16mm (W) × 28mm (H)
- Surface roughness: Ra ≤1.6μm
- Leakage rate: <0.1 NL/min under 0.5 MPa
- Vibration resistance: 10-55Hz, 1.5mm amplitude
- Certification: RoHS compliant
Precision-machined Y-connector featuring low-pressure loss design (flow coefficient Cv=0.12) with 120° branch angle for optimized airflow distribution. The internal smooth bore (φ3.2mm) minimizes turbulence, while the hexagon base allows wrench tightening (recommended torque 1.2-1.5N·m). Compatible with ISO 1179-1 standards.
- Pneumatic circuit branching in compact automation cells
- Modular pneumatic manifold systems
- Medical gas line distribution assemblies
- Robotic end-effector air supply networks
- Laboratory instrumentation pneumatic routing
Installation guidelines:
Apply thread sealant (Loctite 5452 recommended) on male threads.
Avoid overtightening - maximum 2 full rotations after hand-tight.
For vertical mounting, position main flow port downward to prevent debris accumulation.
| Property | Property Value |
|---|---|
| sku | X-EPY8 |
