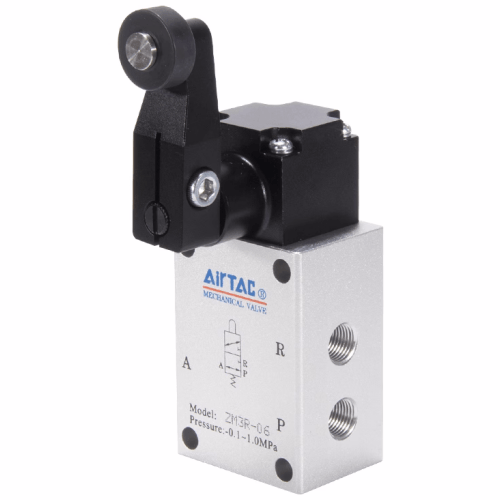

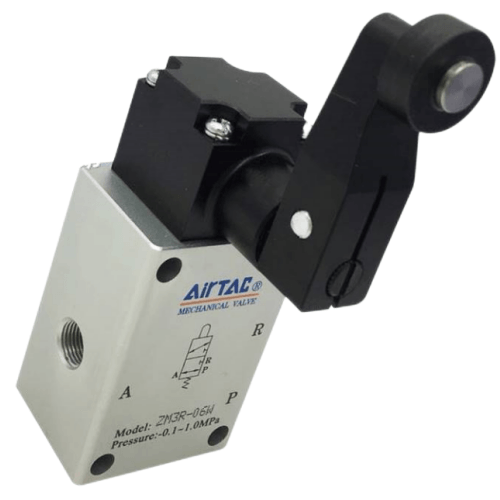

Airtac ZM3R Roller Lever Type Mechanical Valve ZM3R06
1. Operation direction adjustable (Applies to standard type only; angle type excludes this feature)
2. Roller can be mounted on inner side of lever
3. Lever mounting position configurable
4. Head orientation adjustable
5. Contact pin length adjustable
Category: Mechanical Valves | Brand: AIRTAC | Series: ZM3R
AirTAC ZM3R06 Roller Lever Mechanical Valve Technical Details
- Model: ZM3R06
- Type: 3-way roller lever operated mechanical valve
- Port size: PT1/8 (G1/8 thread standard)
- Operating pressure: 0.05–0.7 MPa
- Temperature range: -5℃ to 60℃
- Actuation force: 2.5N±0.5N (lever operation)
- Mounting style: Sub-base (ISO 15407-1 compliant)
- Body material: Anodized aluminum alloy
- Seal material: NBR (Nitrile rubber)
- Roller material: Stainless steel (SUS304)
- Protection rating: IP40
- Repeat accuracy: ±0.5mm
- Mechanical life: 3 million cycles
- Weight: 180g ±5g
- Dimensions: 50mm(L) × 25mm(W) × 30mm(H)
Position-sensing mechanical valve with roller lever actuator designed for precise machine sequencing. Features zero air consumption at rest and maintenance-free operation. The stainless steel roller provides smooth cam follower action with 180° adjustable lever rotation. Optimized for ISO mounting systems with integrated silencer.
- Conveyor position detection in automated warehouses
- Cartesian robot end effector positioning
- Packaging machine safety interlocks
- Assembly line pallet stopper mechanisms
- Automatic door limit sensing
- Textile machinery thread break detection
Installation guidelines:
Mount within 10° of vertical plane. Adjust lever angle using the M3 set screw
before operation. Maintain 2-3mm clearance between roller and actuator cam
surface. Lubricate pivot point with ISO VG32 hydraulic oil annually.
