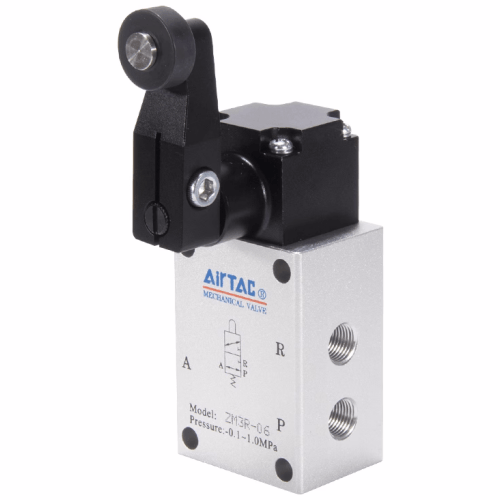

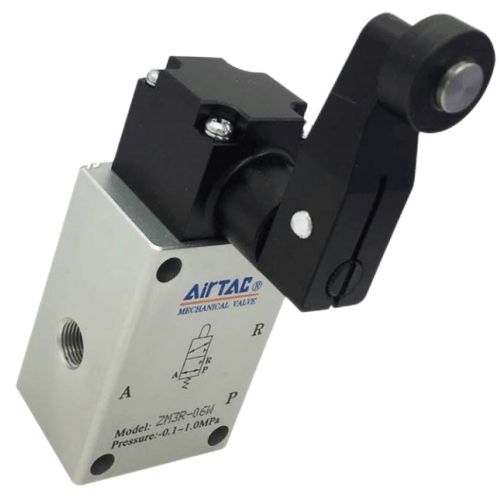

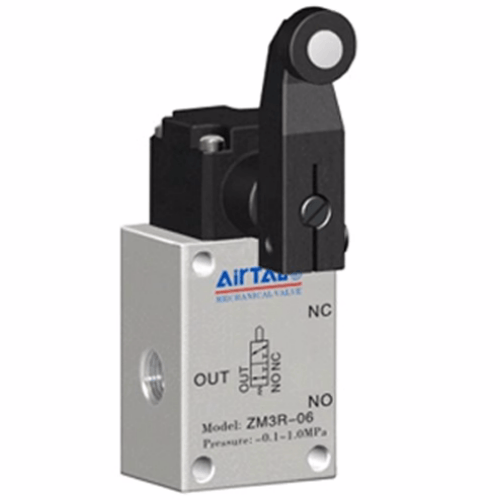

Airtac ZM3R Roller Lever Type Mechanical Valve ZM3R06W
1. Operation direction adjustable (Applies to standard type only; angle type excludes this feature)
2. Roller can be mounted on inner side of lever
3. Lever mounting position configurable
4. Head orientation adjustable
5. Contact pin length adjustable
Category: Mechanical Valves | Brand: AIRTAC | Series: ZM3R
AirTAC ZM3R06W Roller Lever Mechanical Valve Specifications
- Model: ZM3R06W
- Type: 3/2-way normally closed roller lever valve (direct-acting)
- Port size: PT1/8 (G1/8 optional)
- Operating pressure: 0.1–0.8 MPa
- Max flow rate: 450 L/min (ANR)
- Valve body material: Anodized aluminum alloy
- Seal material: Polyurethane (NBR optional)
- Lever stroke: 5mm ±0.5mm
- Reset force: ≤1.5N
- Operating temperature: -20℃ to 80℃
- Weight: 210g ±5g
- Dimensions: 52mm(L) × 32mm(W) × 68mm(H)
- Mounting: Panel mount with M5 threaded holes
- Roller material: POM with stainless steel shaft
- Protection rating: IP67 (dust/water resistant)
Heavy-duty mechanical valve featuring a wear-compensating roller lever mechanism for precise position detection in pneumatic systems. The chrome-plated stainless steel spring ensures consistent reset performance after >1 million cycles. Optimized flow path design reduces pressure drop by 15% compared to standard models.
- Clamping fixture position feedback in CNC machines
- Safety door interlocks for industrial robots
- Cartesian coordinate actuator end-stop detection
- Material handling conveyor jam detection
- Textile machinery thread tension control
Installation note:
Lever arm must be aligned within ±3° of actuator motion path.
Apply silicone-free grease (ISO VG32 equivalent) quarterly
to roller bearing surfaces. Avoid lateral overload exceeding 10N.
