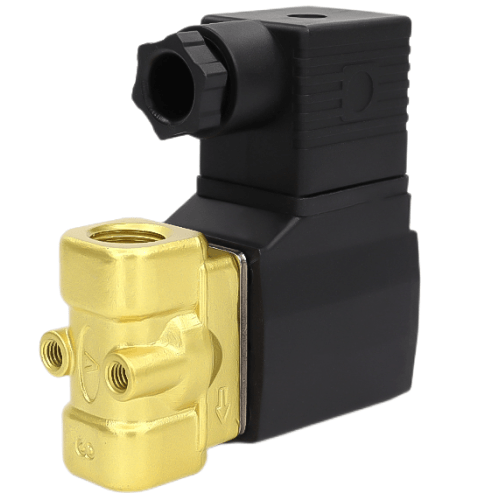

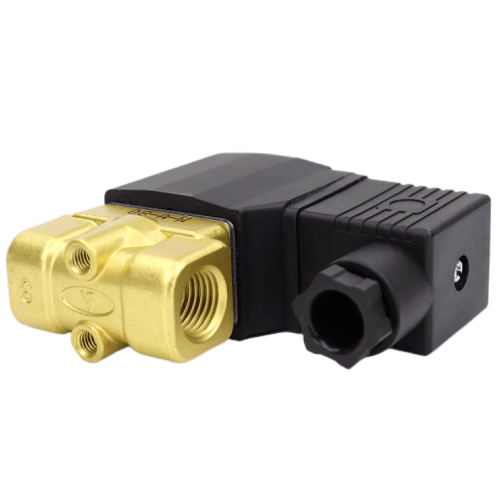

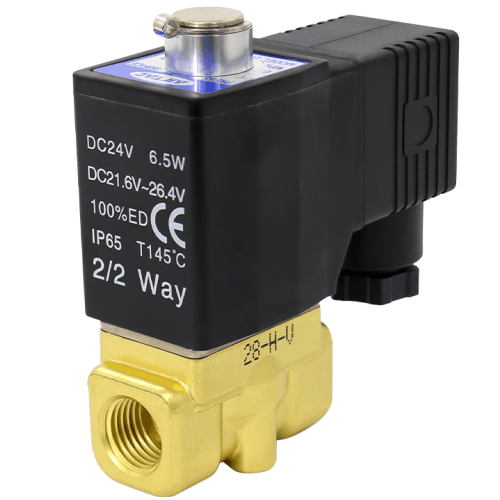

Airtac 2KWX Fluid Solenoid Valve 2KWX03006A
$52.33
Regular price
$59.83
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
2KWX03006A
Product type:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
1. Direct-acting normally open 2-port 2-position solenoid valve with rapid switching and high response sensitivity;
2. Wide pressure range adaptability – options include Ultra-High Pressure (X), High Pressure (H), Standard, and Large Flow (L) configurations;
3. Compact structure with minimized footprint, lightweight design, and tool-free assembly/disassembly capability;
4. Brass valve body construction with Class B thermal-rated coil. Standard FPM (Fluorocarbon Rubber) seals ensure compatibility with multiple media. Custom seal materials available upon consultation with our technical department;
5. IP65-rated coil protection, available in direct lead wire or DIN connector wiring configurations.
Category: Fluid Solenoid Valves | Brand: AirTAC | Series: 2KWX Series
Installation guidelines:
Mount in any orientation except coil-down position. Maintain minimum
50mm clearance from adjacent valves for heat dissipation. Use thread
sealant on male ports (Teflon tape not recommended). Perform monthly
manual cycling if system remains inactive >30 days.
2. Wide pressure range adaptability – options include Ultra-High Pressure (X), High Pressure (H), Standard, and Large Flow (L) configurations;
3. Compact structure with minimized footprint, lightweight design, and tool-free assembly/disassembly capability;
4. Brass valve body construction with Class B thermal-rated coil. Standard FPM (Fluorocarbon Rubber) seals ensure compatibility with multiple media. Custom seal materials available upon consultation with our technical department;
5. IP65-rated coil protection, available in direct lead wire or DIN connector wiring configurations.
Category: Fluid Solenoid Valves | Brand: AirTAC | Series: 2KWX Series
AirTAC 2KWX03006A Fluid Solenoid Valve Specifications
- Model: 2KWX03006A
- Type: 2-position, 3-way normally closed (direct-acting)
- Port size: PT1/8 (G1/8 optional)
- Operating pressure: 0.1–1.0 MPa
- Max flow rate: 800 L/min (at 0.5 MPa)
- Voltage options: DC12V (±10%), DC24V (±10%), AC110V (50/60Hz), AC220V (50/60Hz)
- Power consumption: DC: 2.5W max / AC: 3.5VA max
- Weight: 210g ±5g
- Dimensions: 53mm(L) × 35mm(W) × 72mm(H) (excluding connectors)
- Seal material: FKM (Fluorocarbon Rubber) standard (NBR available on request)
- Fluid temperature range: -5℃ to 80℃
- Ambient temperature range: -20℃ to 60℃
- Protection rating: IP67 (coil part)
- Response time: ≤15ms (at rated voltage)
- Vibration resistance: 10–55Hz with 1.5mm amplitude
High-flow compact solenoid valve featuring corrosion-resistant brass body and dust/waterproof coil assembly. Designed for aggressive environments with 300,000+ cycle durability. Requires 25μm filtration (40μm max). Optional manual override available for system debugging.
Typical Applications:
- Industrial cleaning machine liquid control systems
- Chemical dosing equipment in water treatment plants
- Beverage dispensing automation lines
- Coolant control in CNC machining centers
- Medical sterilization device fluid circuits
- Agricultural irrigation control systems
Installation guidelines:
Mount in any orientation except coil-down position. Maintain minimum
50mm clearance from adjacent valves for heat dissipation. Use thread
sealant on male ports (Teflon tape not recommended). Perform monthly
manual cycling if system remains inactive >30 days.
| Property | Property Value |
|---|---|
| sku | 2KWX03006A |
| Port Size | PT1/8 |
| Flow Aperture | 1.5mm |
| Coil Voltage | AC220V |
