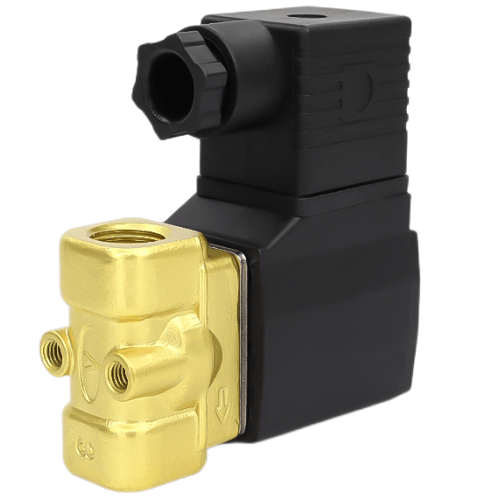

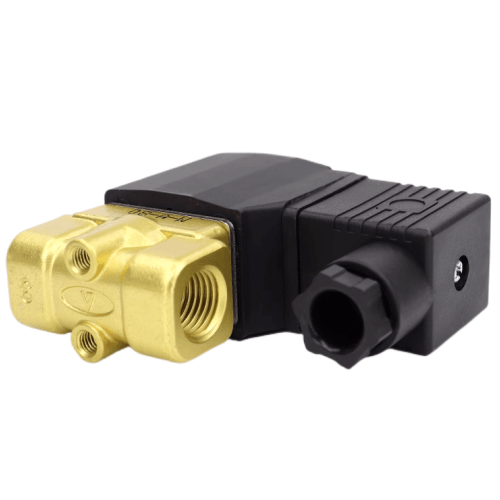

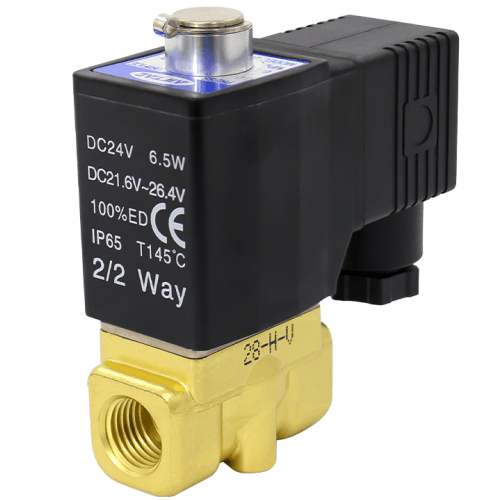

Airtac 2KWX Fluid Solenoid Valve 2KWX03008EI
2. Wide pressure range adaptability – options include Ultra-High Pressure (X), High Pressure (H), Standard, and Large Flow (L) configurations;
3. Compact structure with minimized footprint, lightweight design, and tool-free assembly/disassembly capability;
4. Brass valve body construction with Class B thermal-rated coil. Standard FPM (Fluorocarbon Rubber) seals ensure compatibility with multiple media. Custom seal materials available upon consultation with our technical department;
5. IP65-rated coil protection, available in direct lead wire or DIN connector wiring configurations.
Category: Fluid Solenoid Valves | Brand: AirTAC | Series: 2KWX Series
AirTAC 2KWX03008EI Fluid Solenoid Valve Technical Details
- Full model designation: 2KWX03008EI
- Valve type: 2-way normally closed (direct-acting)
- Port configuration: G1/8 (ISO228/1 standard)
- Flow capacity: 1300 l/min (Cv=2.0)
- Pressure range: 0.02–1.0 MPa (operating), 1.5 MPa max
- Voltage variants: DC12V (±10%), DC24V (±10%), AC110V (50/60Hz), AC220V (50/60Hz)
- Coil insulation: Class F (155℃)
- Weight: 430g ±3% (including coil)
- Body dimensions: 76mm(L) × 50mm(W) × 55mm(H)
- Orifice diameter: Φ8mm
- Seal materials: Main seal NBR, secondary seals FKM
- Ambient temperature: -5℃ to 80℃ (non-freezing)
- Fluid temperature: 0℃ to 60℃
- Power consumption: 4.8W (DC), 5.5VA (AC)
- Response time: ≤15ms (open/close cycle)
- Protection class: IP67 (coil), IP40 (valve body)
- Certifications: CE, RoHS, REACH compliant
High-flow compact solenoid valve with full brass construction and multi-seal system. Features zero-pressure start capability and surge protection circuitry. Designed for aggressive duty cycles (≥10 million operations) with ≤1.5W standby power in pulse-width modulation mode. Requires 25μm filtration with optional silencer (AS-02 accessory).
- Beverage filling line liquid control (water/neutral media)
- Coolant circulation systems in CNC machinery
- Industrial dishwasher chemical dosing mechanisms
- Reverse osmosis plant flush valve operations
- Mobile hydraulic test bench manifolds
Installation protocol:
Mount with vibration-damping brackets in high-shock environments.
Maintain 30° maximum deviation from vertical orientation.
Pipe connections must use anaerobic sealant (Loctite 577 recommended).
| Property | Property Value |
|---|---|
| sku | 2KWX03008EI |
| Port Size | PT1/4 |
| Flow Aperture | 1.5mm |
| Coil Voltage | AC24V |
