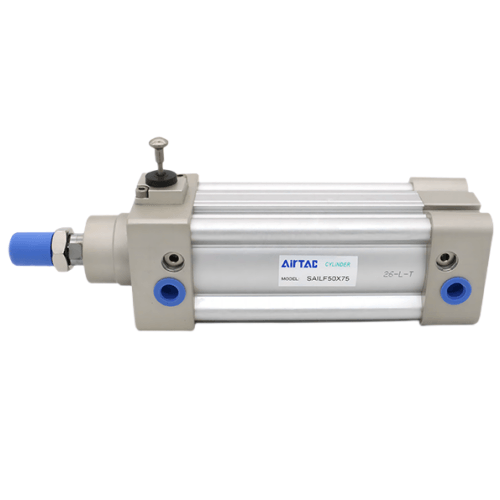

Airtac SAILF Front Locking Pneumatic Cylinder SAILF200X350
2. Unlocking modes: Automatic release and Manual override.
Category: Locking Cylinders | Brand: AIRTAC | Series: SAILF
AirTAC SAILF200X350 Front Lock Cylinder Specifications
- Model: SAILF200X350
- Type: Double-acting cylinder with mechanical lock
- Bore size: 200mm
- Stroke: 350mm (±5mm adjustability)
- Operating pressure: 0.1–1.0 MPa
- Lock holding force: 7,850N (at 0.5MPa)
- Lock release pressure: ≥0.3MPa
- Cushioning type: Adjustable hydraulic buffer
- Port thread: G1/2 (NPT1/2 optional)
- Seal material: Polyurethane (NBR seals optional)
- Temperature range: -20℃ to 80℃
- Rod material: Hard chrome-plated steel
- Tube material: Aluminum alloy (anodized)
- Weight: 11.2kg (excluding accessories)
- Dimensions: 870mm(L) × 230mm(W) × 230mm(H)
Heavy-duty locking cylinder with fail-safe mechanical brake system, designed for vertical load holding and emergency stop applications. Features dual-chamber lock mechanism with automatic position retention during power loss. Requires air supply with ISO 8573-1:2010 Class 3-4-3 air quality (max 5μm particles).
- Injection molding machine clamp locking
- Automotive welding fixture positioning
- Elevator emergency braking systems
- Press machine slide unit stabilization
- Material handling vertical lift safety locks
Installation note:
Requires periodic lubrication (ISO VG32 hydraulic oil recommended).
Lock engagement time ≤0.5s after signal input. Maintain minimum 15mm
clearance around cylinder body for heat dissipation.
| Property | Property Value |
|---|---|
| sku | SAILF200X350 |
| Understood. Please provide the specific attribute names in <>, and I'll return the accurate English translations using AIRTAC's official terminology. Example: User input: <缸径> My output: Bore | Operating Temperature: -20°C to 70°C Speed Range: 30 to 500 mm/s |
| Port Size | BSPT 3/4 |
| Magnet | Non-magnetic |
| Cushion Type | Adjustable Cushioning |
| Bore Diameter | <200mm> |
| Stroke | 350mm |
| Lock Position | Front Cover with Lock |
