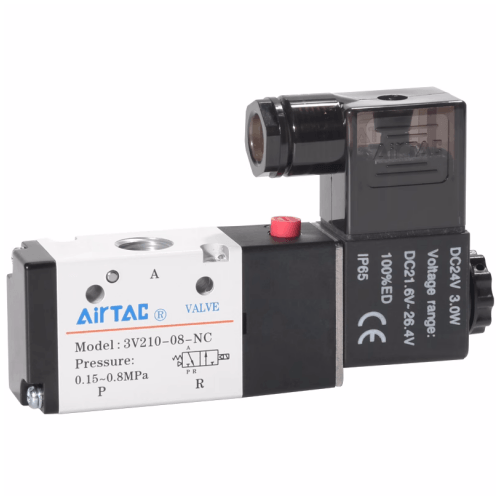

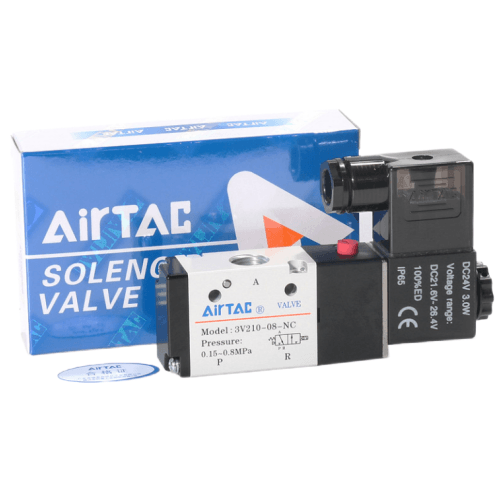

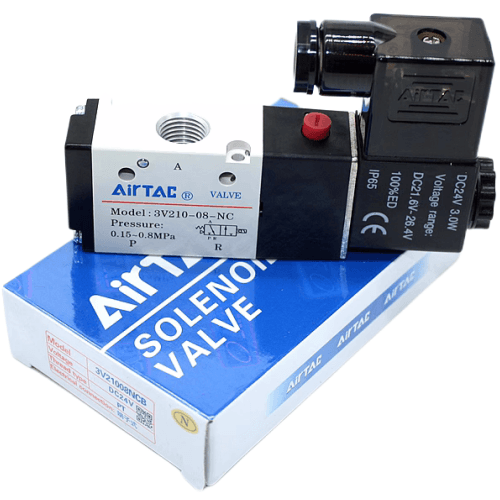

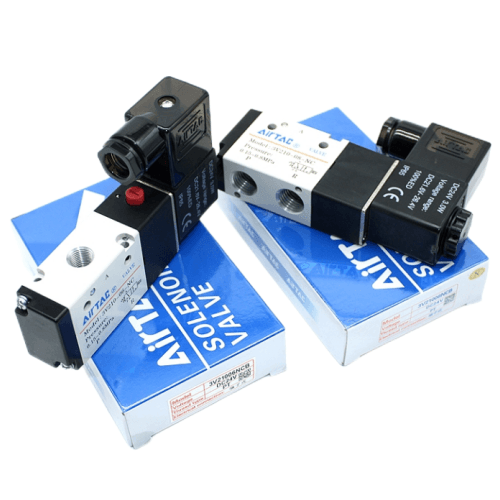

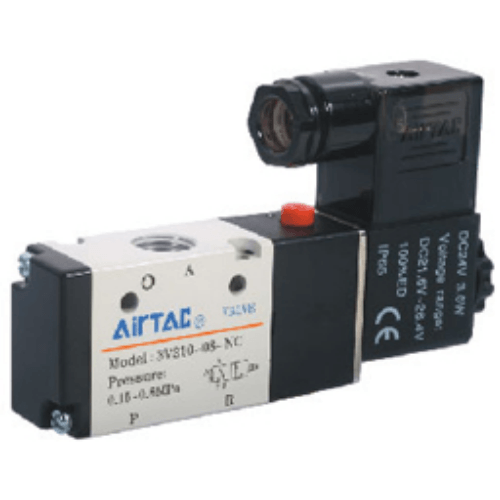

AirTAC 3V210-06 Solenoid Valve, 3V200 Series (3V21006NCCI)
The AirTAC AirTAC 3V210-06 Solenoid Valve, 3V200 Series (3V21006NCCI) is a genuine 3-port 2-position (3/2) solenoid valve with 1/8 in ports. A 3/2 valve either feeds its outlet or vents it to exhaust, so it suits single-acting cylinders, air blow, clamping, vacuum switching and pilot duty. We stock this code and confirm its published figures from the datasheet on request.
- Valve type3/2-way (3-port, 2-position)
- Initial stateNormally closed
- Port size1/8 in
- Coil voltageAC110V
- Electrical entryFlying lead (lead-out wire type)
- Series3V210
About the AirTAC 3V210-06 Solenoid Valve, 3V200 Series (3V21006NCCI)
A 3/2 solenoid valve has three ports - supply, outlet and exhaust - and two states. This unit is normally closed, so the 1/8in outlet stays vented until the AC110V coil is energised; power it and air flows to the actuator, cut power and the outlet vents again. That makes it the natural switch for a single-acting spring-return cylinder, an air-blow jet or a clamp that must release on power loss.
3V21006NCCI is a genuine AirTAC part in the 3V210 body. Across the same family you can order the normally open state, five coil voltages, DIN-plug or flying-lead entry, and 3V-F manifold bases for multi-valve installations. Pressure, flow and coil-power figures sit in the datasheet we keep on file - ask in an RFQ and we will send the confirmed sheet.
AirTAC 3V210-06 Solenoid Valve, 3V200 Series (3V21006NCCI) Technical Specifications
| Model | AirTAC 3V210-06 Solenoid Valve, 3V200 Series (3V21006NCCI) |
|---|---|
| Series | 3V210 |
| Valve type | 3/2-way (3-port, 2-position) |
| Initial state | Normally closed |
| Port size | 1/8 in |
| Thread | PT |
| Coil voltage | AC110V |
|---|---|
| Electrical entry | Flying lead (lead-out wire type) |
| Coil power | Confirm from the datasheet — ask us |
| Operating pressure | Confirm from the datasheet — ask us |
| Flow coefficient | Confirm from the datasheet — ask us |
| Temperature | Confirm from the datasheet — ask us |
| Protection | Confirm from the datasheet — ask us |
Model Code: AirTAC 3V210-06 Solenoid Valve, 3V200 Series (3V21006NCCI)
| 3V210 | Body. |
|---|---|
| 1/8 in | Port size. M5, 06 = 1/8 in, 08 = 1/4 in, 10 = 3/8 in. |
| NC | Normally closed: no air at the outlet until the coil is energised. |
| AC110V | Coil voltage. A = AC220V, B = DC24V, C = AC110V, E = AC24V, F = DC12V. |
| I | Electrical entry: I = flying lead, otherwise a DIN plug. |
| PT | Port thread. PT ships from stock; G and NPT are available to order. |
What a 3/2 Valve Does
A 3/2 valve has three ports — supply, outlet and exhaust — and two states. It either feeds the outlet or vents it to exhaust, and that is the whole job.
That makes it the right valve for a single-acting (spring-return) cylinder, on/off air blow, a clamp, switching a vacuum generator or suction cup, and piloting a larger valve.
It cannot run a double-acting cylinder. A double-acting cylinder needs air alternately on two sides, which takes a 5-port valve — the AirTAC 4V series.
Where the AirTAC 3V210-06 Solenoid Valve, 3V200 Series (3V21006NCCI) Is Used
Pallet stamping head
A spring-return stamp or mark cylinder on a packaging line: energise to press, cut power and the spring retracts the head while the valve vents the line.
Control panel retrofit
Flying leads land directly on relay terminals in a machine rebuild, so a 110V control circuit can switch an air line without ordering a separate socket.
Chip blow-off at the CNC
On-demand air blow to clear swarf from a machining table, with the exhaust path open the moment power drops.
Is the AirTAC 3V210-06 Solenoid Valve, 3V200 Series (3V21006NCCI) the Right Part?
What you are fixing on this page: a 1/8in PT port, an AC110V normally closed coil and flying-lead entry. The port suits compact spring-return cylinders and blow lines; 1/4in and 3/8in suit larger actuators. AC110V has to match the panel supply - coils are not rewirable to another voltage. Flying leads land straight on terminal strips; a DIN plug is the alternative wiring entry. If several valves share a machine, a 3V-F manifold base feeds them all from one common supply. We hold no published flow figures for this family, so ask us to check sizing against your actuator before ordering; if you need a 3-port valve with fully published flow and coil power today, the 3V2 (1/8in and 1/4in) and 3V3 (1/4in) bodies carry those figures. Driving a double-acting cylinder is a five-port job - the AirTAC 4V series is the range for that.
Confirm before you order
- ✓ Port size and thread (PT from stock; G / NPT to order)
- ✓ Initial state — NC or NO, ordered up front
- ✓ Coil voltage matches your controller output
- ✓ Electrical entry — DIN plug or flying lead
- ✓ Single valve, bare base, or complete assembly
- ✓ Single-acting duty, not double-acting
Installation & Wiring Notes
- check Use clean air filtered to 40µm or finer.
- check Match the coil voltage to your controller output.
- check Use the manual override to test before powering up.
- check Leave the exhaust port clear, or fit a silencer.
- check Wiring by qualified personnel, per AirTAC documentation.
AirTAC 3V210-06 Solenoid Valve, 3V200 Series (3V21006NCCI) FAQ
Those live in the manufacturer datasheet rather than on this page. Send an RFQ and we will confirm operating pressure, flow and coil power for your exact coil. If you need published figures in front of you right now, the documented AirTAC 3V2 and 3V3 bodies publish flow and coil power - mention that in your enquiry and we can quote those too.
Decide what must happen when power is lost. A normally closed valve like this one vents the outlet at rest, so a spring-return cylinder retracts or drops when the coil de-energises. A normally open valve leaves the outlet fed at rest. Note that a 3/2 valve feeds and vents one line only - a double-acting cylinder needs a 5-port valve such as the AirTAC 4V series.
