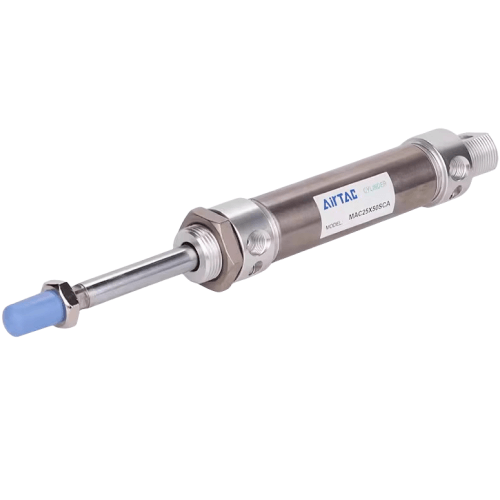

Airtac B06-MAC Battery-Specific Cylinder B06-MAC16X20SCA
AirTAC B06-MAC16X20SCA Battery-Powered Cylinder Specifications
- Model: B06-MAC16X20SCA
- Type: Rodless linear actuator (DC motor-driven)
- Bore size: 16mm
- Stroke length: 20mm (±1mm adjustability)
- Operating voltage: 7.4V DC (Li-ion battery powered)
- Thrust force: 60N max @ full charge
- Speed range: 10-300mm/s (load-dependent)
- Positioning repeatability: ±0.3mm
- Battery runtime: 8-12hrs (typical use)
- Charging time: 2.5hrs (USB-C fast charging)
- Position feedback: Built-in magnetic scale sensor
- Protection rating: IP54 (dust/water resistant)
- Weight: 450g (including battery)
- Dimensions: 180mm(L) × 42mm(W) × 38mm(H)
- Operating temperature: -10℃ to 60℃
- Material: Aluminum alloy body, stainless steel guide rails
Compact cordless actuator combining precision mechanics with brushless motor technology. Features silent operation (＜45dB) and programmable stroke memory via mobile app. Integrated overload protection prevents gear damage during stalls. Includes auto-sleep mode (0.1W standby consumption) and low-battery vibration alert.
- Mobile laboratory automation platforms
- Portable medical dosing systems
- Stage lighting positioners in theater systems
- Solar-powered agricultural actuators
- Educational robotics kits
- Compact packaging machinery
Installation tip:
Mount using M4 screws through base slots (torque ≤1.2Nm). Maintain 15mm
clearance around cylinder for heat dissipation. For vertical installations,
use included anti-rotation bracket (P/N: MAC-SUP16).
| Property | Property Value |
|---|---|
| sku | B06-MAC16X20SCA |
