Airtac BD Female-Male Straight Connector BD0102
The AirTAC Airtac BD Female-Male Straight Connector BD0102 is a genuine male and female connector rated to 3.0 MPa proof pressure and 0 to +150 °C, for joining threaded pipe runs.
- TypeMale and female connector
- SeriesBD
- Working pressure0 - 1.0 MPa (0 - 10 kgf/cm2)
- Proof pressure3.0 MPa
- Temperature0 to +150 °C
- No minimum order. A single piece can be ordered.
- Ready in 3–5 business days. That is the time we take to process the order and hand it to the carrier. Transit time after that depends on the destination.
About the Airtac BD Female-Male Straight Connector BD0102

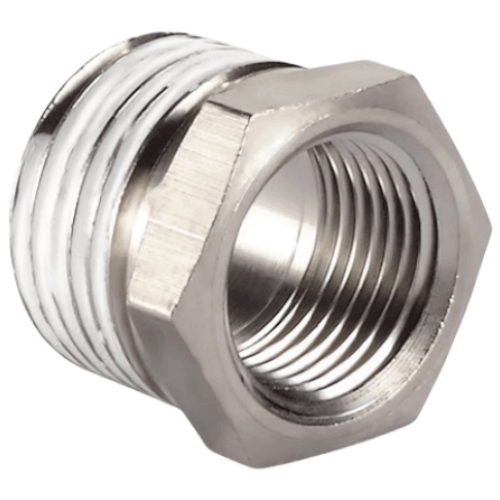

The BD0102 is a reducing connector that marries two thread sizes in one nickel-plated part: Thread I is a 1/8in PT female port, Thread II is a 1/4in PT male stud. It exists so a line can step from a small branch port up to a 1/4in supply without stacking a straight connector on a separate reducing bush.
This family is built for conditions that stop a push-in resin fitting cold. Working pressure is 0-1.0 MPa with a -750 mmHg vacuum rating, and the proof pressure is 3.0 MPa - three times the working figure - while the temperature window runs from 0 to +150 C. The resin one-touch range tops out around 70 C, which is why these metal connectors turn up on hot compressors, ovens and moulding tools instead. Note the thread standard is PT throughout; no NPT or G variant exists.
Airtac BD Female-Male Straight Connector BD0102 Technical Specifications
| Model | Airtac BD Female-Male Straight Connector BD0102 |
|---|---|
| Type | Male and female connector |
| Series | BD |
| Connection | Threaded both ends |
| Working pressure | 0 - 1.0 MPa (0 - 10 kgf/cm2) |
|---|---|
| Negative pressure | -750 mmHg (10 Torr) |
| Proof pressure | 3.0 MPa |
| Temperature | 0 to +150 °C |
| Thread standard | PT (Rc tapered) unless the code says otherwise |
Nickel-plated metal body. AirTAC does not publish a per-part material breakdown for this family. This family is rated to 150 °C, but the TUBE is usually the limit - confirm your tubing's temperature rating before running it hot. AirTAC publishes flow as a characteristic curve rather than a single figure, so no L/min value is listed.
Model Code: Airtac BD Female-Male Straight Connector BD0102
| BD | Male and female connector. |
|---|---|
| 4 / 6 / 8 / 10 / 12 | Tube outside diameter in mm (3.2 mm exists on the mini series). |
| M5 / 01 / 02 / 03 / 04 | Thread: M5x0.8, 1/8", 1/4", 3/8", 1/2" (M3 on the mini series). |
| D | Black. Blank = grey. |
Fitting & Sealing Notes
- check Cut the tube square and clean before pushing it home, or the seal will leak.
- check Push until it stops, then pull back to check the chuck has gripped.
- check To release, press the collet ring fully in and pull the tube out.
- check Threaded parts arrive with sealant on the thread; M5 sizes use a sealing gasket.
- check Match the tube OD exactly - a 6 mm fitting will not hold 1/4" tube.
Where the Airtac BD Female-Male Straight Connector BD0102 Is Used
Trailer brake and auxiliary air lines
Commercial vehicle and trailer pneumatic circuits step between 1/8in gauge take-offs and 1/4in supply runs; the 3.0 MPa proof margin covers the shock loads of compressor cut-out and emergency braking.
Autoclave and steriliser instrumentation
Laboratory autoclaves run sensor and actuator lines close to steam temperature. The 0 to +150 C window lets the BD0102 sit near the chamber where a resin fitting would soften, and the -750 mmHg rating survives the vacuum draw-down phase.
Textile stenter frame actuators
Stenter and heat-setting machines run heated air well above 100 C across their gantries. The 1/4in male stud plugs straight into the frame's tapped branches, and the nickel-plated body resists the finish-laden atmosphere.
Is the Airtac BD Female-Male Straight Connector BD0102 the Right Part?
BD0102 is the smallest combination in the BD ladder - there is no reducing pair below it. The equal-size alternatives at 1/8in are the BB0101 male connector or BU0101 double female; step up to BD0103 (1/8in female x 3/8in male) when the mating stud is a half-inch-equivalent branch. Going one step up in the male thread gains bore and flow capacity but costs a size in the female port you are threading into.
Choose a BD over a BB plus a bushing wherever the connection is made up permanently: one joint, one thread path, one potential leak point instead of three. If the 1/8in port is simply unused, a BZ01 plug is the more honest answer than an adapter.
Quick checklist
- ✓ Tube outside diameter matches exactly
- ✓ Thread size and standard match the port
- ✓ Working pressure within 0 - 1.0 MPa (0 - 10 kgf/cm2)
- ✓ Temperature within 0 to +150 °C
Airtac BD Female-Male Straight Connector BD0102 FAQ
It is a reducing connector with a PT 1/8in female thread (Thread I) and a PT 1/4in male thread (Thread II). Working pressure 0-1.0 MPa (0-10 kgf/cm2), negative pressure -750 mmHg (10 Torr), proof pressure 3.0 MPa, and a temperature range of 0 to +150 C. The body is nickel plated. No flow coefficient is published; capacity follows the orifice, so treat the 1/8in female port as the restrictive side.
AirTAC does not define which physical end carries Thread I versus Thread II, so confirm by measuring the two ends before assembly - one is the 1/8in female bore, the other the 1/4in male stud. Both are PT (tapered pipe) threads, so use PTFE sealant tape or pipe dope on the male 1/4in thread; do not substitute NPT hardware, which has a different thread form and will not seal reliably.
