Airtac DS1B Electronic Sensor DS1B7020

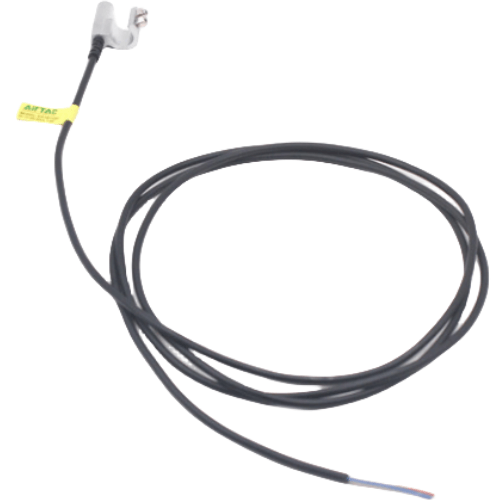

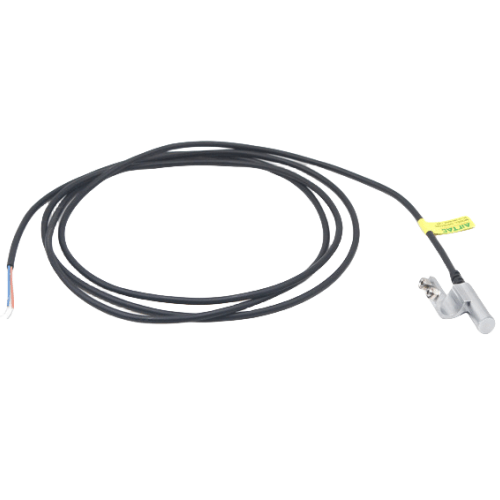

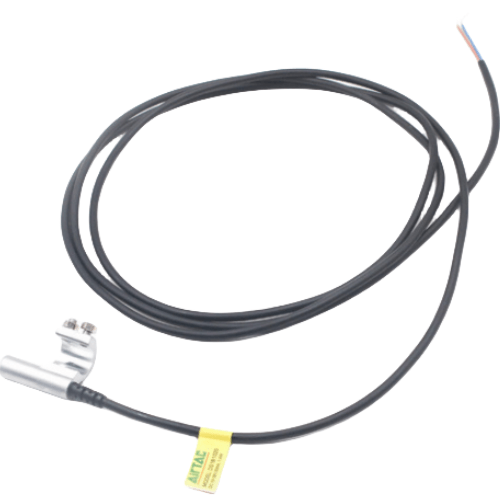

The AirTAC Airtac DS1B Electronic Sensor DS1B7020 is a genuine DS1 contactless solid-state magnetic switch (normally open) that senses the piston magnet in a pneumatic cylinder. It is the 2-wire version, supplied with a 2 m cable. The B7 type fits SI200. A red LED shows output; the housing is rated IP67.
- TypeContactless solid-state, normally open
- Wiring2-wire (2-wire)
- Supply10 - 28 V DC
- Max current50 mA
- Connection2 m cable
- Fits (B7)SI200
- Sensitivity25-700 Gauss
- ProtectionIP67 (NEMA6)
- No minimum order. A single piece can be ordered.
- Ready in 3–5 business days. That is the time we take to process the order and hand it to the carrier. Transit time after that depends on the destination.
About the Airtac DS1B Electronic Sensor DS1B7020
The AirTAC DS1B7020 is a contactless solid-state magnetic switch, normally open, for the large SI200 cylinder. It is the 2-wire form on 10-28 V DC at up to 50 mA, wiring in series with the load like a reed but with no moving contact, so it switches fast and lasts. A red LED shows output on the 2 m cable.
The B7 type clips straight onto the SI200 body with no accessory and, like all B-types, adds output short-circuit protection on top of the reverse-polarity and surge protection. It is IP67 rated over a -10 to 70 C range. Exact fit is confirmed from the datasheet.
Airtac DS1B Electronic Sensor DS1B7020 Technical Specifications
| Model | Airtac DS1B Electronic Sensor DS1B7020 |
|---|---|
| Switch kind | Contactless transistor, normally open |
| Wiring | 2-wire (2-wire) |
| Supply voltage | 10 - 28 V DC |
| Max switching current | 50 mA |
| Max contact capacity | 1.4 W |
| Residual voltage | 2.65 V max |
| Connection | 2 m cable |
| Sensitivity | 25-700 Gauss |
|---|---|
| Indicator | Red LED |
| Max switching frequency | 1000 Hz |
| Shock / vibration | 500 / 90 m/s2 |
| Temperature | -10 to 70 C |
| Protection rating | IP67 (NEMA6) |
| Circuit protection | Reverse-polarity, surge, output short-circuit |
| Fits (B7 type) | SI200 |
Specifications follow the official AirTAC DS1 data. Clips onto the cylinder body; no accessory. Exact fit and accessory codes are confirmed from the datasheet on request.
How to choose
The 2-wire form is the simplest wiring for a PLC input, but it leaks up to 90 uA and drops about 2.65 V; for a very high-impedance input or 5 V logic, step up to the 3-wire NPN or PNP form (0.01 mA leakage, 0.5 V drop, 200 mA). Choose the solid-state DS1 over the reed CS1 for fast, high-cycle duty.
At 24 V the 2.65 V drop is about 11 percent, which most inputs tolerate. Keep the load under 50 mA on the 2-wire form.
Applications
SI200 stroke-end confirm
Confirms the large SI200 cylinder has reached its stroke end before unclamping.
Heavy-press position
Signals ram position on a heavy SI200-driven press station.
2-wire PLC input
Feeds a 24 V PLC input with the simplest two-wire series connection.
FAQ
What protection does the B7 add?
Like all DS1 B-types it adds output short-circuit protection on top of reverse-polarity and surge protection. It is the 2-wire 10-28 V form.
When should I choose 3-wire instead?
For a very high-impedance input or 5 V logic: the 3-wire form leaks only 0.01 mA and drops 0.5 V, versus the 2-wire's 90 uA leakage and 2.65 V drop.
