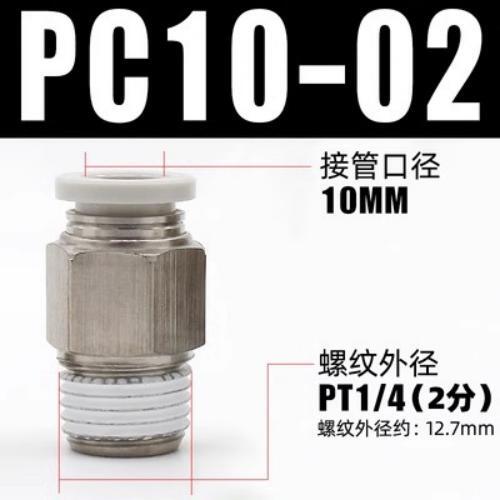

Airtac PC Threaded Straight Connector PC1002
The AirTAC Airtac PC Threaded Straight Connector PC1002 is a genuine male connector for push-in tube connection, rated 0 - 1.0 MPa (0 - 10 kgf/cm2) with a 1.5 MPa proof pressure.
- TypeMale connector
- SeriesPC
- Working pressure0 - 1.0 MPa (0 - 10 kgf/cm2)
- Proof pressure1.5 MPa
- Temperature-20 to +70 °C
- No minimum order. A single piece can be ordered.
- Ready in 3–5 business days. That is the time we take to process the order and hand it to the carrier. Transit time after that depends on the destination.
About the Airtac PC Threaded Straight Connector PC1002
The PC1002 is an AirTAC PC series one-touch male connector: a straight fitting that joins a Dia 10 mm soft nylon or polyurethane tube to a 1/4in PT male thread. Push the tube into the chuck and the stainless spring gasket grips it for a pressure-tight seal; press the POM release ring and the tube slides straight back out. The body on the PC series is brass, with an aluminium-alloy guide, NBR O-ring and a POM release button.
This is the standard resin and brass spec profile, not the metal BPC line: working pressure 0-1.0 MPa (0-10 kgf/cm2), vacuum to -750 mmHg (10 Torr), proof pressure 1.5 MPa and a service temperature of -20 to +70 C. The 1/4in thread arrives pre-coated with sealant, so no extra tape or paste is needed on the port, and the PT taper does the sealing as you tighten.
Airtac PC Threaded Straight Connector PC1002 Technical Specifications
| Model | Airtac PC Threaded Straight Connector PC1002 |
|---|---|
| Type | Male connector |
| Series | PC |
| Connection | Push-in one-touch |
| Working pressure | 0 - 1.0 MPa (0 - 10 kgf/cm2) |
|---|---|
| Negative pressure | -750 mmHg (10 Torr) |
| Proof pressure | 1.5 MPa |
| Temperature | -20 to +70 °C |
| Applicable tubing | Soft nylon or polyurethane tube |
| Thread standard | PT (Rc tapered) unless the code says otherwise |
POM release button and chuck, aluminium-alloy guide, stainless spring gasket, NBR O-ring; body brass or PBT depending on the part. AirTAC publishes flow as a characteristic curve rather than a single figure, so no L/min value is listed.
Model Code: Airtac PC Threaded Straight Connector PC1002
| PC | Male connector. |
|---|---|
| 4 / 6 / 8 / 10 / 12 | Tube outside diameter in mm (3.2 mm exists on the mini series). |
| M5 / 01 / 02 / 03 / 04 | Thread: M5x0.8, 1/8", 1/4", 3/8", 1/2" (M3 on the mini series). |
| D | Black. Blank = grey. |
Fitting & Sealing Notes
- check Cut the tube square and clean before pushing it home, or the seal will leak.
- check Push until it stops, then pull back to check the chuck has gripped.
- check To release, press the collet ring fully in and pull the tube out.
- check Threaded parts arrive with sealant on the thread; M5 sizes use a sealing gasket.
- check Match the tube OD exactly - a 6 mm fitting will not hold 1/4" tube.
Where the Airtac PC Threaded Straight Connector PC1002 Is Used
Valve manifold outlet to a cylinder
A 1/4in PT port on a solenoid manifold steps straight out to a Dia 10 supply line, feeding a medium-bore actuator without a reducer in between.
Pick-and-place gantry drop
On a Cartesian pick-and-place unit, the Dia 10 trunk line drops into a 1/4in port at the gantry base, and the pre-applied thread sealant saves re-taping after maintenance.
Packaging machine conveyor clamps
Conveyor clamp cylinders on a carton sealer tap off the Dia 10 main at a 1/4in threaded take-off point, with push-in release making seasonal changeovers quick.
Is the Airtac PC Threaded Straight Connector PC1002 the Right Part?
On the PC ladder with a 1/4in thread, the neighbouring tube sizes are Dia 8 (PC802) below and Dia 12 (PC1202) above. Stepping down to Dia 8 trims the bore and suits lighter-demand branches; stepping up to Dia 12 gives you the largest bore the 1/4in thread supports and feeds big-bore cylinders with less restriction. Every size from Dia 4 to Dia 12 is made on this thread, so the ladder is wide if you need to consolidate on one thread across a machine.
The tube OD must match exactly: a Dia 10 chuck will not seal on 1/4in (6.35 mm) tube, and forcing a smaller tube in leaks under vacuum. If you need to pass the fitting through a panel wall instead of threading into a port, the PM1002 bulkhead union is the equivalent shape and takes an M20x1 locknut on Dia 10.
Quick checklist
- ✓ Tube outside diameter matches exactly
- ✓ Thread size and standard match the port
- ✓ Working pressure within 0 - 1.0 MPa (0 - 10 kgf/cm2)
- ✓ Temperature within -20 to +70 °C
Airtac PC Threaded Straight Connector PC1002 FAQ
It is a PC series one-touch male connector for Dia 10 mm tube with a 1/4in PT male thread. Working pressure is 0-1.0 MPa (0-10 kgf/cm2), vacuum to -750 mmHg (10 Torr), proof pressure 1.5 MPa, and the temperature range is -20 to +70 C. Applicable tubing is soft nylon or polyurethane.
No. AirTAC ships this fitting with sealant already applied to the 1/4in PT thread, so it seals on the taper as installed. Just confirm the port is also PT; mating it to a parallel port will not seal reliably, and the Dia 10 tube must be cut square and pushed fully home past the chuck before pressurising.
Authorized Export Seller
Genuine AirTAC parts produced by AirTAC factory.
1-Year Warranty
Covers non-human-caused product damage.
Fast Dispatch
Standard parts are processed and dispatched in 3-5 business days.
Fast Reply
Most inquiries answered within 7-8 hours.
