Airtac PGJ Plug Pin Reducing Straight Connector PGJ12-10
The AirTAC Airtac PGJ Plug Pin Reducing Straight Connector PGJ12-10 is a genuine plug-in reducer for push-in tube connection, rated 0 - 1.0 MPa (0 - 10 kgf/cm2) with a 1.5 MPa proof pressure.
- TypePlug-in reducer
- SeriesPGJ
- Working pressure0 - 1.0 MPa (0 - 10 kgf/cm2)
- Proof pressure1.5 MPa
- Temperature-20 to +70 °C
- No minimum order. A single piece can be ordered.
- Ready in 3–5 business days. That is the time we take to process the order and hand it to the carrier. Transit time after that depends on the destination.
About the Airtac PGJ Plug Pin Reducing Straight Connector PGJ12-10

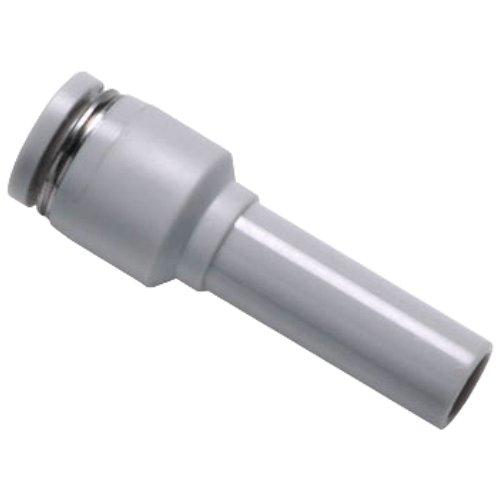

The AirTAC PGJ12-10 is a plug-in reducer from the PGJ range of different diameter straight unions: a one-touch fitting that joins Dia 12 mm tube on the large socket to Dia 10 mm tube on the small socket in a straight line, with no threaded port anywhere in the part. Push each tube home and the internal chuck grips it against the seal; press the POM release ring to free it again.
This is the resin spec profile, not the 0.9 MPa metal BP line: working pressure 0-1.0 MPa (0-10 kgf/cm2), vacuum down to -750 mmHg (10 Torr), proof pressure 1.5 MPa and a temperature window of -20 to +70 C. Tubing must be soft nylon or polyurethane. Because there is no thread, there is no sealant to apply and no torque to worry about - the connection is purely push-fit. The standard body is grey; adding the D suffix to the code changes the body to black.
Airtac PGJ Plug Pin Reducing Straight Connector PGJ12-10 Technical Specifications
| Model | Airtac PGJ Plug Pin Reducing Straight Connector PGJ12-10 |
|---|---|
| Type | Plug-in reducer |
| Series | PGJ |
| Connection | Push-in one-touch |
| Working pressure | 0 - 1.0 MPa (0 - 10 kgf/cm2) |
|---|---|
| Negative pressure | -750 mmHg (10 Torr) |
| Proof pressure | 1.5 MPa |
| Temperature | -20 to +70 °C |
| Applicable tubing | Soft nylon or polyurethane tube |
| Thread standard | PT (Rc tapered) unless the code says otherwise |
POM release button and chuck, aluminium-alloy guide, stainless spring gasket, NBR O-ring; body brass or PBT depending on the part. AirTAC publishes flow as a characteristic curve rather than a single figure, so no L/min value is listed.
Model Code: Airtac PGJ Plug Pin Reducing Straight Connector PGJ12-10
| PGJ | Plug-in reducer. |
|---|---|
| 4 / 6 / 8 / 10 / 12 | Tube outside diameter in mm (3.2 mm exists on the mini series). |
| M5 / 01 / 02 / 03 / 04 | Thread: M5x0.8, 1/8", 1/4", 3/8", 1/2" (M3 on the mini series). |

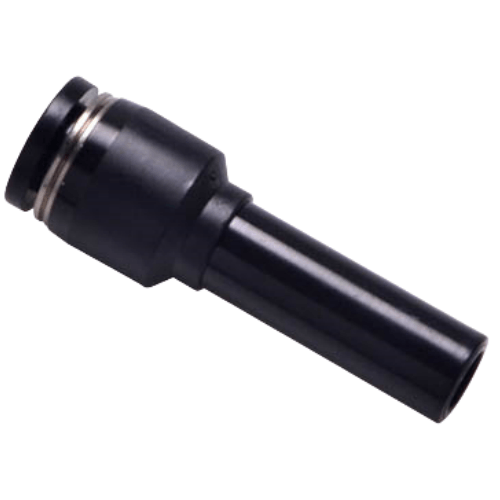

| D | Black. Blank = grey. |
Fitting & Sealing Notes
- check Cut the tube square and clean before pushing it home, or the seal will leak.
- check Push until it stops, then pull back to check the chuck has gripped.
- check To release, press the collet ring fully in and pull the tube out.
- check Threaded parts arrive with sealant on the thread; M5 sizes use a sealing gasket.
- check Match the tube OD exactly - a 6 mm fitting will not hold 1/4" tube.
Where the Airtac PGJ Plug Pin Reducing Straight Connector PGJ12-10 Is Used
Press shop ring main drop
At a stamping press, step a Dia 12 mm ring-main feed down to Dia 10 mm hose on its way to the clamping cylinder, with no threaded adaptor to seal or work loose under vibration.
Vacuum pick-and-place array
The -750 mmHg (10 Torr) negative pressure rating lets this reducer sit in the vacuum circuit of a packaging machine's suction cup array, where a Dia 12 trunk feeds Dia 10 drop legs to the cups.
Palletiser hose changeover
On an automated palletiser, maintenance can swap a worn Dia 10 actuator hose straight into a Dia 12 manifold drop - press the old tube out, press the new line in, and the line is back up.
Is the Airtac PGJ Plug Pin Reducing Straight Connector PGJ12-10 the Right Part?
PGJ12-10 is the mildest step available off the Dia 12 bore. The next fitting down on the same inlet is PGJ12-8, which takes Dia 12 down to Dia 8 mm in one part when the drop needs to be smaller, and Dia 12 is the largest tube OD in this catalogue, so no larger entry exists. On the small side, PGJ10-8 handles a Dia 10 to Dia 8 step if you are stepping between the two smaller bores instead. Tube OD must match exactly on both ends - the Dia 10 socket will not seal or hold 8 mm tube, and neither end accepts inch tubing.
Quick checklist
- ✓ Tube outside diameter matches exactly
- ✓ Thread size and standard match the port
- ✓ Working pressure within 0 - 1.0 MPa (0 - 10 kgf/cm2)
- ✓ Temperature within -20 to +70 °C
Airtac PGJ Plug Pin Reducing Straight Connector PGJ12-10 FAQ
Working pressure 0-1.0 MPa (0-10 kgf/cm2), negative pressure to -750 mmHg (10 Torr), proof pressure 1.5 MPa, operating temperature -20 to +70 C. The fitting steps Dia 12 mm tube down to Dia 10 mm and takes soft nylon or polyurethane tubing only. It is a straight union with no thread.
No. Each one-touch socket is cut for a single tube OD, so the Dia 10 half of the PGJ12-10 will not grip or seal Dia 8 tube. Order PGJ12-8, which steps Dia 12 down to Dia 8 in one fitting, for that combination.
