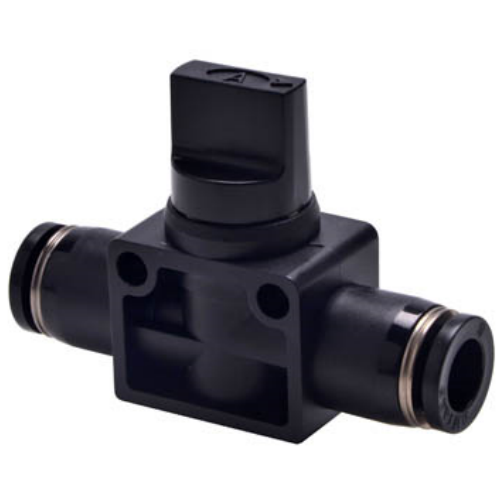

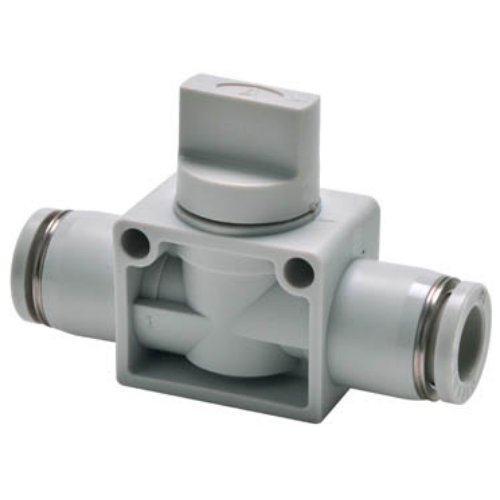

Airtac PHV Hand Valve Connector PHV8AD
2. When closing the three-way configuration, the exhaust port vents pressure from the outlet side, ensuring safe system debugging and maintenance operations.
3. Features responsive directional switching with superior flow capacity for efficient pneumatic control.
Category: Manual Valve Fittings , Brand: AIRTAC , Series: PHV
AirTAC PHV Series Manual Valve Connector PHV8AD Specifications
- Model: PHV8AD (Metal Handle Type)
- Type: Manual shut-off valve with push-to-connect fittings
- Thread standard: G1/8 (BSPP)
- Port configuration: 5 ports (1 inlet, 4 outlets)
- Body material: Nickel-plated brass
- Seal material: NBR + POM composite
- Operating pressure: 0.05–1.0 MPa
- Max flow rate: 450 L/min (ANR)
- Temperature range: -5℃ to 80℃
- Weight: 185g ±5g
- Dimensions: 78mm(L) × 42mm(W) × 34mm(H)
- Tube compatibility: Ø4mm, Ø6mm, Ø8mm polyurethane/nylon tubing
- Vibration resistance: ≤10 Hz (1.5mm amplitude)
- Installation torque: 1.2–1.5 N·m
Heavy-duty manual distribution valve featuring one-touch tube connections and 90° lever operation. The PHV8AD's chrome-plated handle provides positive tactile feedback with 50,000+ cycle durability. Internal flow channels are optimized for minimal pressure drop (ΔP ≤0.02 MPa at 0.5 MPa).
- Multi-station pneumatic tool air distribution
- CNC machine auxiliary circuit control
- Plastic injection molding machine air line switching
- Assembly line emergency shut-off systems
- Laboratory pneumatic device manifolds
Installation note:
Apply 2-3 drops of pneumatic oil (ISO VG32) to rotating parts monthly.
For vertical mounting, orient handle upward to prevent debris accumulation.
Maximum lateral tubing force ≤3N.
