Airtac POC Round Thread Straight Connector POC1001
The AirTAC Airtac POC Round Thread Straight Connector POC1001 is a genuine male connector (compact) for push-in tube connection, rated 0 - 1.0 MPa (0 - 10 kgf/cm2) with a 1.5 MPa proof pressure.
- TypeMale connector (compact)
- SeriesPOC
- Working pressure0 - 1.0 MPa (0 - 10 kgf/cm2)
- Proof pressure1.5 MPa
- Temperature-20 to +70 °C
- No minimum order. A single piece can be ordered.
- Ready in 3–5 business days. That is the time we take to process the order and hand it to the carrier. Transit time after that depends on the destination.
About the Airtac POC Round Thread Straight Connector POC1001

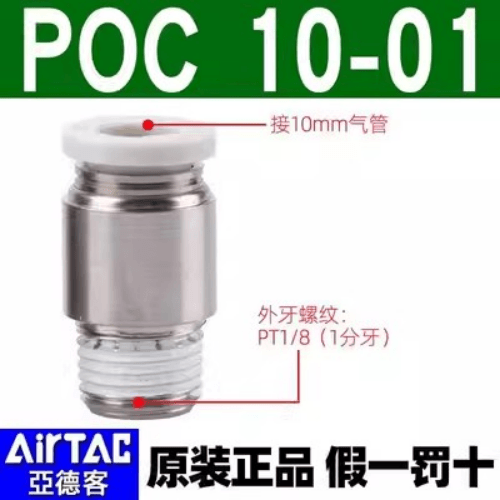

The POC1001 is an AirTAC POC male connector, the compact-bodied member of the resin one-touch range. It screws into a 1/8in PT male thread and grips a Dia 10 mm soft nylon or polyurethane tube. The shortened body earns its keep where port spacing is tight: valve manifolds, small cylinders and crowded junction blocks that will not accept the taller PC head.
Connection is genuinely one-touch. Push the Dia 10 tube fully home and the internal stainless spring gasket and chuck close around it for an immediate seal; press the POM release ring and the tube is free again. This is the resin spec profile: 0 to 1.0 MPa working pressure, -750 mmHg vacuum, 1.5 MPa proof pressure and -20 to +70 C. The body is PBT with a brass stud, and the 1/8in thread arrives with sealant already applied.
Airtac POC Round Thread Straight Connector POC1001 Technical Specifications
| Model | Airtac POC Round Thread Straight Connector POC1001 |
|---|---|
| Type | Male connector (compact) |
| Series | POC |
| Connection | Push-in one-touch |
| Working pressure | 0 - 1.0 MPa (0 - 10 kgf/cm2) |
|---|---|
| Negative pressure | -750 mmHg (10 Torr) |
| Proof pressure | 1.5 MPa |
| Temperature | -20 to +70 °C |
| Applicable tubing | Soft nylon or polyurethane tube |
| Thread standard | PT (Rc tapered) unless the code says otherwise |
POM release button and chuck, aluminium-alloy guide, stainless spring gasket, NBR O-ring; body brass or PBT depending on the part. AirTAC publishes flow as a characteristic curve rather than a single figure, so no L/min value is listed.
Model Code: Airtac POC Round Thread Straight Connector POC1001
| POC | Male connector (compact). |
|---|---|
| 4 / 6 / 8 / 10 / 12 | Tube outside diameter in mm (3.2 mm exists on the mini series). |
| M5 / 01 / 02 / 03 / 04 | Thread: M5x0.8, 1/8", 1/4", 3/8", 1/2" (M3 on the mini series). |
| D | Black. Blank = grey. |
Fitting & Sealing Notes
- check Cut the tube square and clean before pushing it home, or the seal will leak.
- check Push until it stops, then pull back to check the chuck has gripped.
- check To release, press the collet ring fully in and pull the tube out.
- check Threaded parts arrive with sealant on the thread; M5 sizes use a sealing gasket.
- check Match the tube OD exactly - a 6 mm fitting will not hold 1/4" tube.
Where the Airtac POC Round Thread Straight Connector POC1001 Is Used
Compact pneumatic slide ports
Small-bore pneumatic slides and grippers on assembly stations often carry 1/8in ports set close together; the short POC head lets two Dia 10 lines sit side by side without the fittings fouling each other.
Packaging machine valve manifolds
Pilot and signal ports on packaging machinery valve islands are typically 1/8in; POC1001 turns each port straight into a Dia 10 drop line to actuators or vacuum ejectors without an elbow.
Vacuum sheet-handling manifolds
Rated to -750 mmHg, it feeds Dia 10 suction lines from 1/8in ports on vacuum generator blocks used in cardboard and film pick-and-place cells.
Is the Airtac POC Round Thread Straight Connector POC1001 the Right Part?
Within the POC ladder on a 1/8in port, the step down is POC801 (Dia 8 tube): a slimmer bore that costs capacity on any run longer than a few hundred millimetres. POC1001 is the LARGEST tube AirTAC offers on a POC with a 1/8in thread - the interface table stops at Dia 10 here. To run Dia 12 you must step the port up to 1/4in (POC1202) or 3/8in (POC1203). Remember that tube OD must match exactly: a Dia 10 chuck will not seal on 3/8in imperial tube, and there is no imperial variant in this catalogue.
Quick checklist
- ✓ Tube outside diameter matches exactly
- ✓ Thread size and standard match the port
- ✓ Working pressure within 0 - 1.0 MPa (0 - 10 kgf/cm2)
- ✓ Temperature within -20 to +70 °C
Airtac POC Round Thread Straight Connector POC1001 FAQ
It joins Dia 10 mm soft nylon or polyurethane tube to a 1/8in PT male thread. Working pressure is 0 to 1.0 MPa, negative pressure is -750 mmHg (10 Torr), proof pressure is 1.5 MPa, and the temperature range is -20 to +70 C. The body is PBT with a brass stud, the release button and chuck are POM, the guide is aluminium alloy, and the O-ring is NBR. Note that Dia 10 is the largest tube size offered on a POC with a 1/8in thread.
No. The chuck is machined for exactly Dia 10 mm outside diameter and will neither seal nor grip on imperial tube of any size. Forcing an undersized or oversized tube in risks a line that blows off under pressure. If your run uses 3/8in hose, keep it off this fitting entirely and terminate it on a matching hose tail or an adapter instead.
