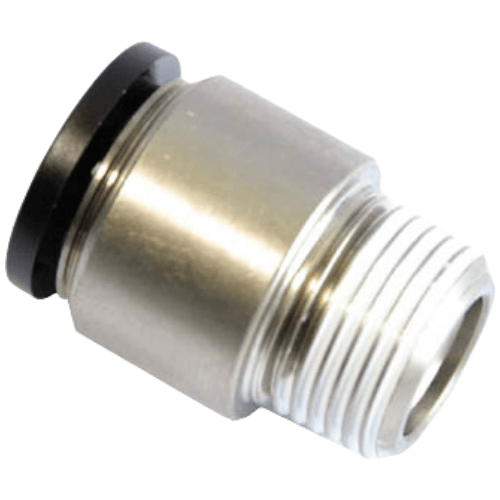

Airtac POC Round Thread Straight Connector POC1204D
2、Threaded section integrated with sealing element, M5 metric threads feature integrated sealing washers to ensure leak-free connections;

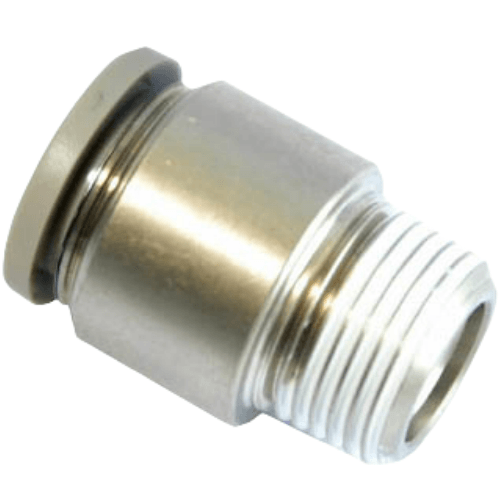

3、Polymer connectors available in gray and black color options for optimal coordination with piping systems.
AirTAC POC1204D Metric BSPP Thread Straight Fitting Detailed Specifications
- Model: POC1204D
- Thread Standard: BSPP (Parallel) DIN 3852-2
- Thread Size: 1/4" (G1/4)
- Material: Zinc-plated Steel Body + POM Sealing
- Surface Treatment: Electro-galvanized (8-12μm)
- Max Working Pressure: 1.5 MPa (15 bar)
- Temperature Range: -20°C to +80°C
- Proof Pressure: 2.25 MPa
- Burst Pressure: ≥3 MPa
- Weight: 12.5g ±0.3g
- Dimensions: 32mm(Total Length) × 12mm(Outer Diameter) × 14mm(Hex Across Flats)
- Port Configuration: Male-to-Male Straight Through
- Seal Type: Double O-ring (NBR Material)
- Vibration Resistance: 10-55Hz, 1.5mm Amplitude
- Certification: RoHS Compliant
High-density forged brass core with precision-machined POM (polyoxymethylene) seals ensures leak-free performance in dynamic pressure conditions. The electro-galvanized surface provides corrosion resistance for humid environments. Features dual O-ring design for redundancy in sealing integrity.
- Pneumatic cylinder port extensions in automated assembly lines
- Modular connection nodes in semiconductor wafer handling systems
- High-cycle-rate packaging machinery with frequent component changes
- Coolant line junctions in CNC machining centers
- Vacuum system interconnects (when paired with vacuum-rated seals)
Installation protocol:
Apply 2-3 wraps of PTFE tape clockwise on male threads. Tighten to 12-15 N·m torque using
crowfoot wrench. Perform pressure test at 1.1x system pressure after installation.
Replace O-rings every 5,000 actuation cycles in high-vibration environments.
| Property | Property Value |
|---|---|
| sku | POC1204D |
