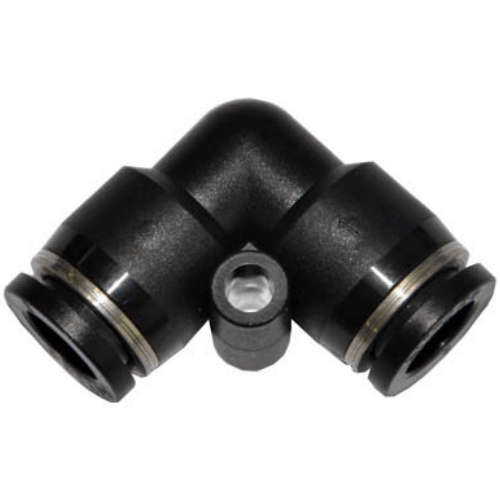

Airtac PV Series L-Type Elbow Fitting PV6D
The AirTAC Airtac PV Series L-Type Elbow Fitting PV6D is a genuine union elbow for push-in tube connection, rated 0 - 1.0 MPa (0 - 10 kgf/cm2) with a 1.5 MPa proof pressure.
- TypeUnion elbow
- SeriesPV
- Working pressure0 - 1.0 MPa (0 - 10 kgf/cm2)
- Proof pressure1.5 MPa
- Temperature-20 to +70 °C
- No minimum order. A single piece can be ordered.
- Ready in 3–5 business days. That is the time we take to process the order and hand it to the carrier. Transit time after that depends on the destination.
About the Airtac PV Series L-Type Elbow Fitting PV6D
The PV6D is an AirTAC PV union elbow, a tube-to-tube one-touch fitting that turns a Dia 6 mm airline through 90 degrees with no threaded port involved. Push each tube into its chuck until it bottoms, and the stainless spring gasket and chuck grip it for a sealed joint; press the release ring and the tube slides free. Because it is a union, both ends accept tube only, so it bridges two runs of the same size rather than adapting to a valve or cylinder port.
This SKU carries the D suffix, which on the PV family colours the body black rather than grey, a useful visual tag when you want air lines to disappear against dark machine frames or to mark one circuit apart from another. It belongs to the resin and brass one-touch profile: working pressure 0-1.0 MPa (0-10 kgf/cm2), vacuum down to -750 mmHg (10 Torr), proof pressure 1.5 MPa, and a temperature window of -20 to +70 C with soft nylon or polyurethane tubing. Capacity follows the 6 mm bore, so size the circuit around that internal diameter rather than expecting large-volume flow.
Airtac PV Series L-Type Elbow Fitting PV6D Technical Specifications
| Model | Airtac PV Series L-Type Elbow Fitting PV6D |
|---|---|
| Type | Union elbow |
| Series | PV |
| Connection | Push-in one-touch |
| Working pressure | 0 - 1.0 MPa (0 - 10 kgf/cm2) |
|---|---|
| Negative pressure | -750 mmHg (10 Torr) |
| Proof pressure | 1.5 MPa |
| Temperature | -20 to +70 °C |
| Applicable tubing | Soft nylon or polyurethane tube |
| Thread standard | PT (Rc tapered) unless the code says otherwise |
POM release button and chuck, aluminium-alloy guide, stainless spring gasket, NBR O-ring; body brass or PBT depending on the part. AirTAC publishes flow as a characteristic curve rather than a single figure, so no L/min value is listed.
Model Code: Airtac PV Series L-Type Elbow Fitting PV6D
| PV | Union elbow. |
|---|---|
| 4 / 6 / 8 / 10 / 12 | Tube outside diameter in mm (3.2 mm exists on the mini series). |
| M5 / 01 / 02 / 03 / 04 | Thread: M5x0.8, 1/8", 1/4", 3/8", 1/2" (M3 on the mini series). |
| D | Black. Blank = grey. |
Fitting & Sealing Notes
- check Cut the tube square and clean before pushing it home, or the seal will leak.
- check Push until it stops, then pull back to check the chuck has gripped.
- check To release, press the collet ring fully in and pull the tube out.
- check Threaded parts arrive with sealant on the thread; M5 sizes use a sealing gasket.
- check Match the tube OD exactly - a 6 mm fitting will not hold 1/4" tube.
Where the Airtac PV Series L-Type Elbow Fitting PV6D Is Used
Corner routing on a pick-and-place gantry
Air feed to the gripper on a Cartesian robot crosses a 90 degree frame corner; a PV6D on each leg keeps the Dia 6 PU tube straight into the chucks instead of letting the tube rub the aluminium edge.
Autosampler pneumatic circuit
Laboratory autosamplers run 6 mm nylon lines between solenoid manifolds and probe actuators through cramped channels; the black PV6D body sits unobtrusively inside the enclosure and releases quickly when the tubing is serviced.
Packaging machine corner turn
On a cartoning line, the Dia 6 run from the vacuum ejector supply to the box-forming station changes direction twice; union elbows at each turn prevent the kinked-tube flow restriction that slows cylinder cycling.
Is the Airtac PV Series L-Type Elbow Fitting PV6D the Right Part?
Step down to PV4D for Dia 4 sensing and pilot lines, or up to PV8D when the actuator draw needs a 8 mm bore; each step changes the internal passage and the tubing you must order. Tube OD must match exactly - a Dia 6 chuck will not hold 1/4 inch (6.35 mm) hose, and the error only shows up as a leak at pressure. If your turn instead has to land on a threaded port, a PL male elbow is the shape to look at; PV is purely for joining tube to tube.
Polyurethane tubing bends fairly tightly, but a repeated 90 degree flex at a moving member eventually kinks or fatigues the tube wall. Fitting a PV6D at the corner converts that bend into a supported pivot: the fitting takes the angle, and the tube runs straight into each chuck. On the PV series the D suffix changes the body itself to black, unlike on PC and POC where it only affects the release button.
Quick checklist
- ✓ Tube outside diameter matches exactly
- ✓ Thread size and standard match the port
- ✓ Working pressure within 0 - 1.0 MPa (0 - 10 kgf/cm2)
- ✓ Temperature within -20 to +70 °C
Airtac PV Series L-Type Elbow Fitting PV6D FAQ
It is an AirTAC PV union elbow joining two Dia 6 mm tubes, with no thread. Working pressure 0-1.0 MPa (0-10 kgf/cm2), negative pressure -750 mmHg (10 Torr), proof pressure 1.5 MPa, operating temperature -20 to +70 C. It suits soft nylon or polyurethane tubing, and the D suffix gives a black body.
No. The chuck is cut for 6 mm OD only, and 1/4 inch tube measures about 6.35 mm, so it will neither seat nor seal properly. Use a Dia 6 tube on both ends, or move to the PV4D or PV8D if your line is 4 mm or 8 mm.
