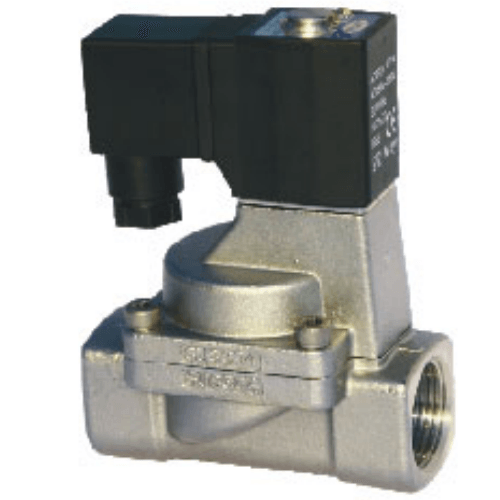

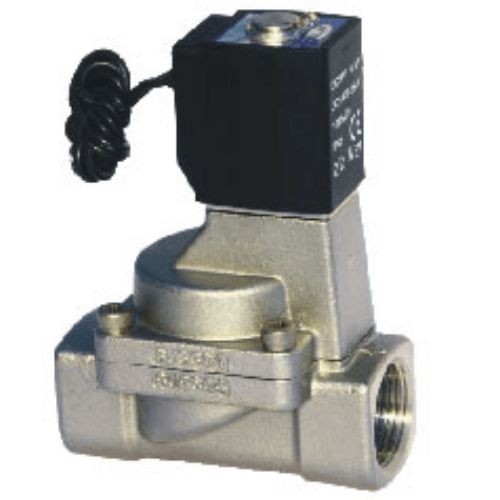

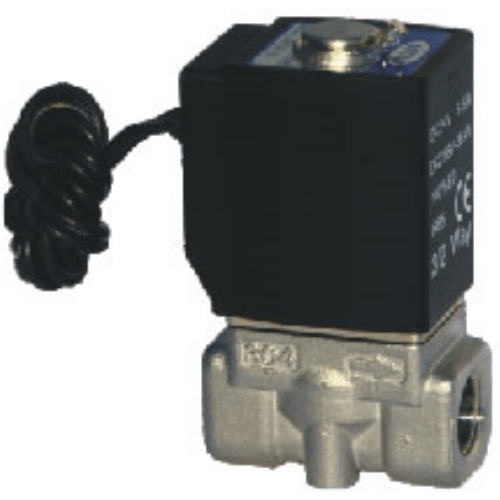

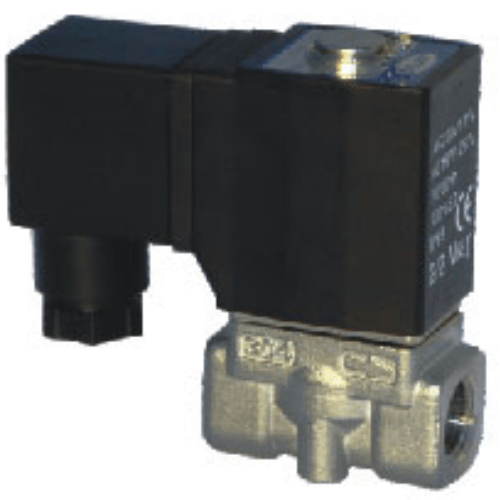

Airtac 2L Solenoid Valve 2L03006F
2. Pilot-operated piston type normally closed 2-port 2-way solenoid valve featuring fast actuation and high flow capacity;
3. Extended pressure range compatibility, available in high-pressure (H) and standard configurations;
4. Compact, lightweight design with space-saving dimensions for easy installation and maintenance;
5. SUS304 stainless steel body construction, Class H thermal-rated coil, and PTFE (Teflon) seals ensuring compatibility with diverse media including high-temperature water and saturated steam;
6. IP65-rated coil protection with wiring options: direct lead wire or DIN connector interface.
Category: Solenoid Valves | Brand: AIRTC | Series: 2L
AirTAC 2L Series Solenoid Valve 2L03006F Technical Details
- Model: 2L03006F (2-position 5-way)
- Operation type: Double solenoid pilot-operated
- Port configuration: 5 ports (P, A, B, R, S)
- Port size: PT1/4 (G1/4 equivalent)
- Operating pressure range: 0.15–0.8 MPa (21.7–116 PSI)
- Voltage variants: DC12V (±10%), DC24V (±10%), AC110V (50/60Hz), AC220V (50/60Hz)
- Flow capacity: 850 l/min (Cv=1.2 at 0.5 MPa)
- Response time: ≤30ms (energize), ≤20ms (de-energize)
- Body material: Aluminum alloy with hard anodizing
- Seal material: Heat-resistant NBR (-5℃ to 80℃)
- Ambient temperature: -5℃ to 60℃ (non-freezing)
- Protection class: IP65 (dust-tight & water jet resistant)
- Electrical connection: DIN43650 Form A connector
- Weight: 500g ±3% (excluding accessories)
- Dimensions: 60mm (L) × 30mm (W) × 80mm (H)
- Manual override: Optional (side-mounted button)
- Service life: ≥10 million cycles (under rated conditions)
High-performance 5/2-way pneumatic valve engineered for bidirectional cylinder control in automated systems. Features low-hysteresis spool design with copper-free aluminum construction, compliant with RoHS standards. Requires ISO 8573-1:2010 Class 3 lubricated or non-lubricated air (40μm filtration recommended).
- Robotic gripper actuation in automotive assembly
- Rotary indexing tables in CNC machinery
- Clamping mechanisms for injection molding
- Bagging/palletizing systems in food processing
- Textile machinery thread tension control
Installation guidelines:
Mount in vibration-free location using M4 screws (max 0.5Nm torque).
Maintain ≥15mm clearance around exhaust ports. Perform monthly
function tests in high-cycling applications (>5,000 cycles/day).
Critical notes:
Not compatible with phosphate ester fluids. For vacuum applications,
use model 2L03006FV variant. Allow 2-minute cooldown after continuous
8-hour operation at maximum pressure.
| Property | Property Value |
|---|---|
| sku | 2L03006F |
| Port Size | PT1/8 |
| Flow Aperture | <3mm> |
| Coil Voltage | DC12V |
