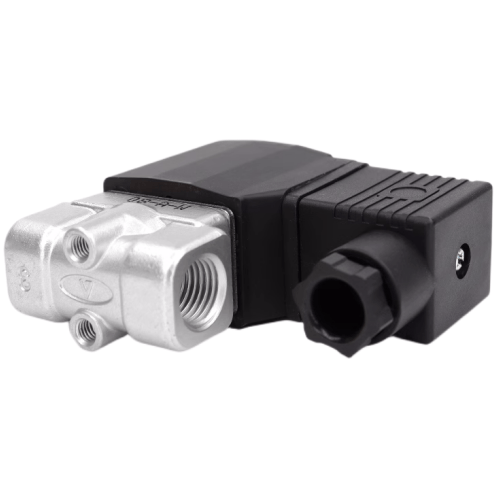

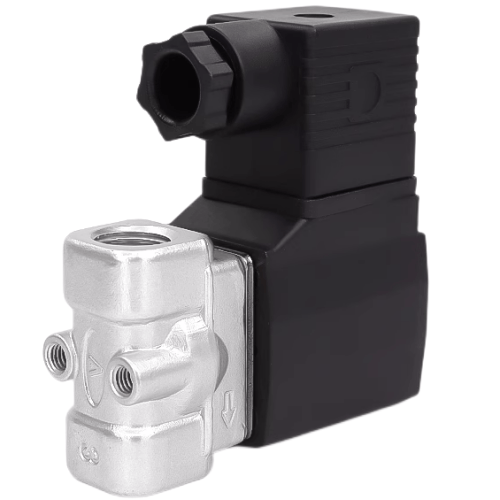

Airtac 2SX Fluid Control Valve 2SX05010B
2. Extensive pressure range options: Ultra-High Pressure (X), High Pressure (H), Standard, Large Flow (L), and Extra-Large Flow (T) configurations;
3. Compact design with reduced footprint, lightweight construction, and tool-free installation/maintenance;
4. SUS304 stainless steel body, B-class heat-resistant coil, standard FPM (Fluorocarbon Rubber) seals for multi-media compatibility. Custom seal materials available upon technical consultation;
5. IP65-rated coil protection with wiring options: direct lead wire or DIN connector.
Category: Fluid Solenoid Valves | Brand: AirTAC | Series: 2SX
AirTAC 2SX05010B Fluid Control Valve Technical Details
- Model: 2SX05010B
- Type: 5-port 2-position (5/2-way) solenoid valve
- Port size: G1/8 (ISO228 standard)
- Operating pressure: 0.1–1.0 MPa (14.5–145 PSI)
- Voltage options: DC12V, DC24V, AC110V 50/60Hz, AC220V 50/60Hz
- Flow capacity: 1,200 NL/min (Cv=1.8)
- Response time: ≤15ms (at 0.5 MPa)
- Seal material: Heat-resistant NBR (Nitrile) with PTFE coating
- Temperature range: -10℃ to 80℃ (non-freezing)
- Power consumption: 2.8W (DC), 4.5VA (AC)
- Protection rating: IP67 (dustproof & water immersion resistant)
- Weight: ~650g (including coil)
- Dimensions: 75mm(L) × 50mm(W) × 100mm(H)
High-flow directional control valve with double electrical interlock protection, featuring manual override and position indicator. Optimized spool design reduces pressure loss by 18% compared to previous generation. Compatible with ISO 15407-1 standard mounting interfaces. Requires 40μm filtration and lubrication-free air (NBR seals) or ISO VG32 oil-mist lubrication.
- Pneumatic cylinder sequencing in assembly lines
- Vacuum cup control for robotic material handling
- Mold clamping mechanisms in injection molding
- Packaging machine diverters & actuator control
- Food processing equipment (certified for incidental contact)
Installation guidelines:
Mount horizontally with arrow aligned to flow direction.
Use M5x12 mounting screws (torque ≤0.8 N·m).
Allow 20mm clearance below for tubing access.
Perform monthly manual cycling for seal maintenance.
| Property | Property Value |
|---|---|
| sku | 2SX05010B |
| Port Size | PT3/8 |
| Flow Aperture | <3mm> |
| Coil Voltage | DC24V |
