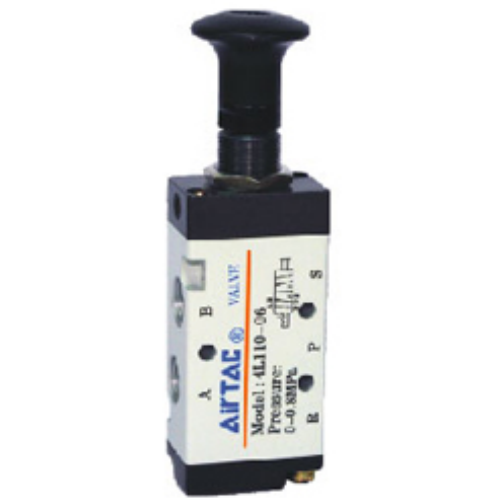

Airtac 4L 2-Position 5-Way Manual Pull Valve 4L110-06
2、Spool-type structure features compact dimensions, lightweight construction, and excellent sealing performance for easy installation/maintenance;
3、Special bore finishing process minimizes friction resistance while extending service life;
4、Lubrication-free operation eliminates maintenance requirements;
5、Multi-position installation capability enables flexible mounting configurations.
Category: Manual Pull Valves , Brand: AIRTAC , Series: 4L 5/2-Way
AirTAC 4L110-06 Manual Lever Valve Specifications
- Model: 4L110-06
- Type: 5/2-way manual lever operated (spring return)
- Port size: PT1/4 (G1/4 equivalent)
- Thread standard: BSPP (parallel thread)
- Operating pressure: 0.15–0.8 MPa (21.7–116 PSI)
- Max flow rate: 750 L/min (ANR)
- Actuation force: ≤15 N (lever operation)
- Weight: 210g ±5%
- Dimensions: 56mm(L) × 42mm(W) × 48mm(H)
- Body material: Aluminum alloy (anodized finish)
- Seal material: NBR (nitrile rubber)
- Temperature range: -20℃ to 80℃ (non-freezing conditions)
- Port orientation: 5 ports (P:1, A:2, B:4, EA:5, EB:3)
- Mounting options: Direct piping or sub-base mounting
Mechanical override valve with positive position feedback, featuring ergonomic lever design for precise manual control in pneumatic systems. The dual-pressure sealed structure ensures zero leakage during static holding. Optimized flow path reduces air turbulence by 30% compared to standard manual valves.
- Emergency override in automated production lines
- Jig and fixture positioning systems
- Pneumatic training equipment maintenance
- Safety lockout/tagout procedures
- Mobile machinery manual controls
Operation guidance:
Apply smooth lateral force to lever (max 45° rotation). Lubricate pivot point every
50,000 cycles using ISO VG32 hydraulic oil. Avoid side-loading during actuation.
| Property | Property Value |
|---|---|
| sku | 4L110-06 |
| Position | 5/2-way |
| Port | PT1/8 |
