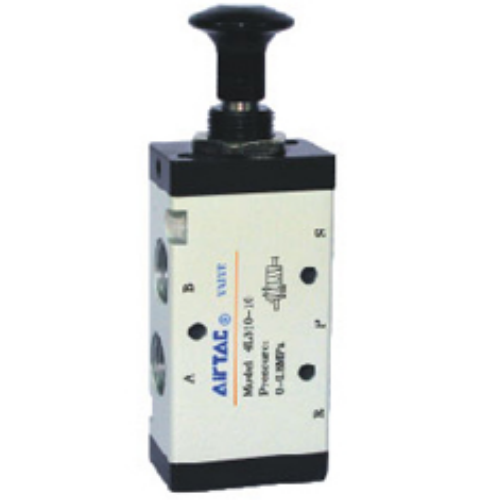

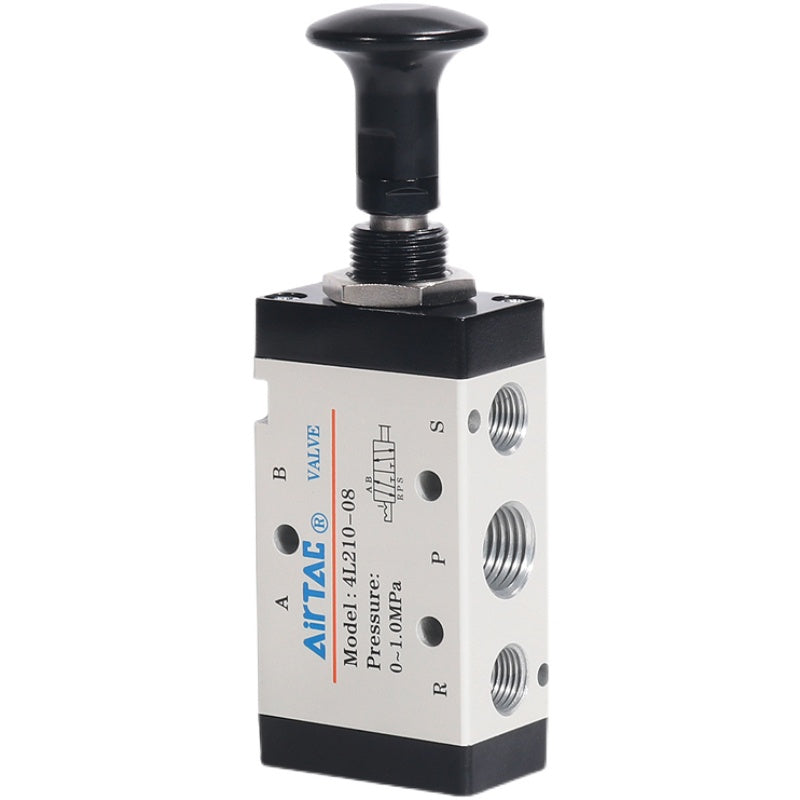

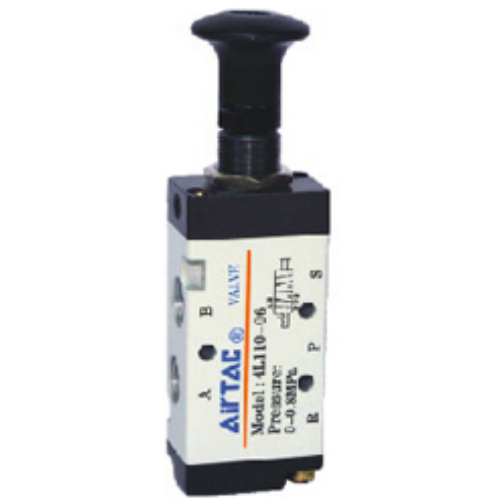

Airtac 4L 2-Position 5-Way Manual Pull Valve 4L210-06
2、Spool-type structure features compact dimensions, lightweight construction, and excellent sealing performance for easy installation/maintenance;
3、Special bore finishing process minimizes friction resistance while extending service life;
4、Lubrication-free operation eliminates maintenance requirements;
5、Multi-position installation capability enables flexible mounting configurations.
Category: Manual Pull Valves , Brand: AIRTAC , Series: 4L 5/2-Way
AirTAC 4L210-06 5/2-Way Manual Lever Valve Technical Details
- Model: 4L210-06 (4L series)
- Valve type: 5-port 2-position (5/2) manual override
- Operation method: Mechanical lever actuation
- Port thread: PT1/4 (G1/4 optional)
- Effective area ratio: 1:1.2
- Operating pressure range: 0.2–0.8 MPa (29–116 PSI)
- Max flow capacity: 750 NL/min (ANR)
- Seal material: Oil-resistant NBR (Nitrile)
- Body material: Die-cast aluminum alloy (anodized)
- Temperature range: -20℃ to 80℃ (-4°F to 176°F)
- Weight: 298g ±5g
- Dimensions: 60mm(L) × 40mm(W) × 80mm(H)
- Port configuration: 5 ports (P: pressure, A/B: outlets, R/S: exhausts)
- Actuation force: ≤15N lever operation
- Response time: Instantaneous mechanical switching
- Protection class: IP40 (dust protected)
Robust manual override valve designed for emergency operation and system debugging. Features positive mechanical locking in both positions with tactile feedback. The chrome-plated lever allows 180° rotation with dust-proof boot. Compatible with ISO 5599-1 mounting pattern for easy integration.
- Production line emergency stop systems
- Pneumatic cylinder manual positioning
- Maintenance override in automated machinery
- Training simulators requiring manual control
- Safety interlocks in material handling systems
Installation guidelines:
Mount in accessible locations with full lever swing clearance (minimum 100mm front space).
Use thread sealant on ports. Lubricate pivot point annually with ISO VG32 hydraulic oil.
Not suitable for vacuum applications.
| Property | Property Value |
|---|---|
| sku | 4L210-06 |
| Position | 5/2-way |
| Port | PT1/8 |
