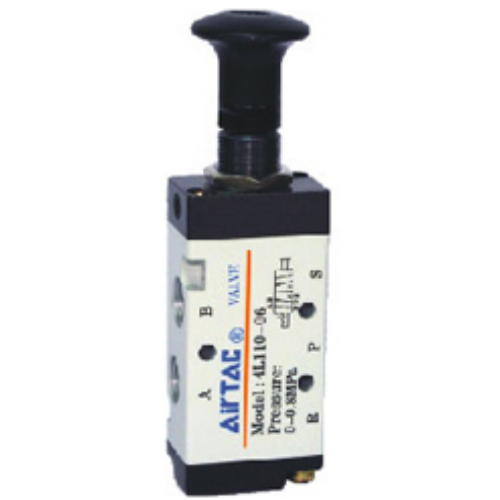

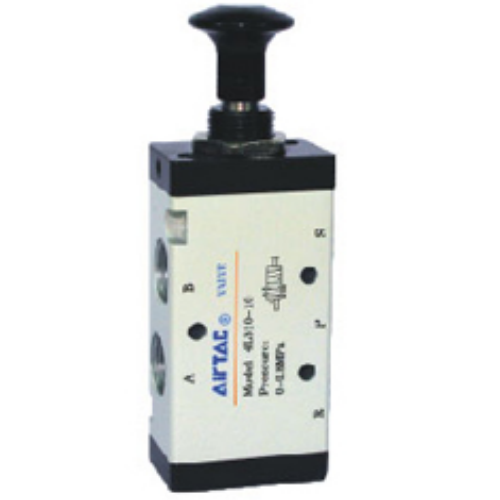

Airtac 4L 2-Position 5-Way Manual Pull Valve 4L210-08
2、Spool-type structure features compact dimensions, lightweight construction, and excellent sealing performance for easy installation/maintenance;
3、Special bore finishing process minimizes friction resistance while extending service life;
4、Lubrication-free operation eliminates maintenance requirements;
5、Multi-position installation capability enables flexible mounting configurations.
Category: Manual Pull Valves , Brand: AIRTAC , Series: 4L 5/2-Way

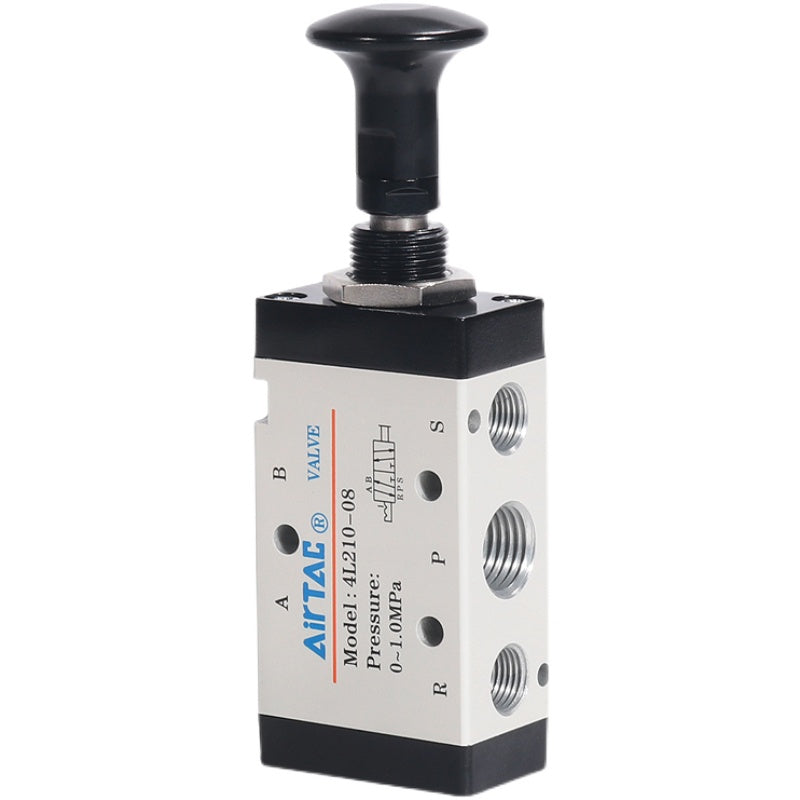

AirTAC 4L210-08 5/2-Way Manual Lever Valve Specifications
- Model: 4L210-08
- Type: 5/2-way manual lever operated (spring return)
- Port configuration: P (pressure), A/B (actuator ports), R/S (exhausts)
- Port size: PT1/8 (G1/8 optional)
- Operating pressure: 0.05–0.9 MPa
- Max flow rate: 850 l/min (ANR)
- Valve body material: Aluminum alloy (hard anodized)
- Seal material: High-grade NBR (nitrile rubber)
- Ambient temperature range: -10℃ to 60℃
- Manual operation force: ≤3.5N
- Weight: 235g ±5%
- Dimensions: 58mm(L) × 42mm(W) × 52mm(H)
- Mounting options: Sub-base or direct piping
- Lubrication: Pre-lubricated (oil mist lubrication optional)
Robust manual override valve with positive position lock mechanism, featuring dual exhaust ports for rapid cylinder movement. The ergonomic lever design allows single-finger operation with tactile feedback. Corrosion-resistant construction with 1 million cycle durability rating. Compatible with ISO 15407-1 standards.
- Emergency stop/override in automated production lines
- Jig and fixture positioning systems
- Pneumatic training equipment in technical schools
- Material handling system maintenance bypass
- Press machine safety override controls
Installation note:
For optimal performance, install with exhaust ports downward to prevent debris accumulation.
Requires 5μm filtered compressed air with max 0.1ppm oil content. Manual override position
should be accessible but protected from accidental activation.
| Property | Property Value |
|---|---|
| sku | 4L210-08 |
| Position | 5/2-way |
| Port | PT1/4 |
