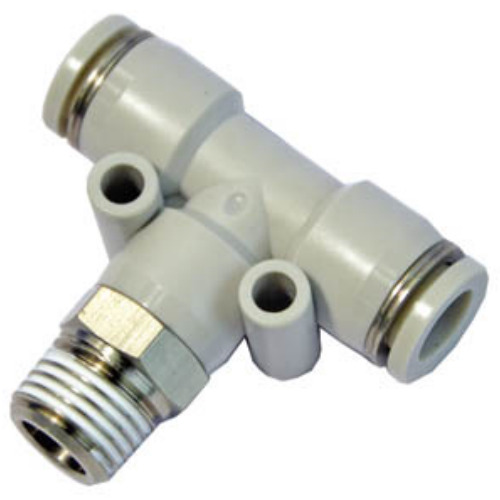

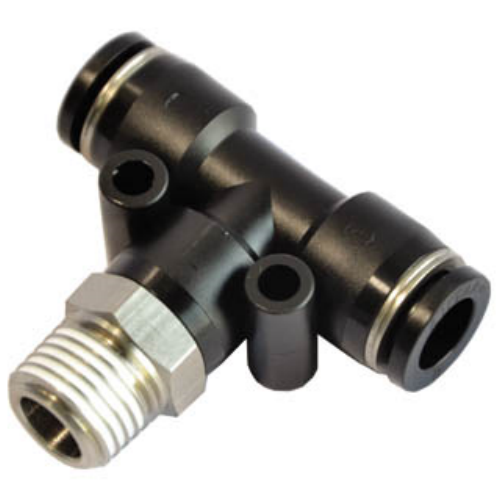

Airtac APB Straight Tee Fitting APB16-03
2、Superior flow performance enables equivalent capacity flow matching the tubing inner diameter;
3、Features quick-disconnect push-in tube connections with secure, durable hose retention mechanism;
4、Pre-applied thread sealant and M5 metric thread with integrated sealing washer ensure leak-proof threaded connections;
5、Nickel-plated brass construction enhances corrosion resistance and contamination prevention for expanded application scope.
Category: T-Type Tee Fittings , Brand: AIRTAC , Series: APB
AirTAC APB Series Positive Tee Connector APB16-03 Technical Details
- Model: APB16-03
- Type: Straight thread tee (equal distribution)
- Thread standard: PT1/8 (BSPP) female threads
- Material: Lead-free brass with nickel plating
- Pressure range: 0.05–1.5 MPa
- Temperature range: -20℃ to 80℃
- Proof pressure: 3.0 MPa
- Seal type: Metal-to-metal sealing with optional PTFE tape
- Surface hardness: ≥HV200
- Weight: 28g ±1g
- Dimensions: 19.5mm(L) × 16mm(W) × 16mm(H)
- Port angles: 90° branch configuration
- Flow coefficient: Cv≈0.15
Precision-engineered brass tee connector featuring triple chrome plating for enhanced corrosion resistance. The compact hexagonal body design allows tool tightening with 17mm wrench flats. Internal flow channels are machined with 0.01mm tolerance for leak-free performance in pneumatic systems.
- Branch line connections in FRL (Filter-Regulator-Lubricator) units
- Vacuum system manifold splitting
- Industrial robot pneumatic circuit distribution
- Medical gas line installations
- Compressed air tool manifolds
Installation guidelines:
Apply 1.5-2 wraps of PTFE tape clockwise on male threads.
Tighten to 12-15 N·m torque using calibrated wrench.
Avoid cross-threading - initial engagement must rotate freely by hand.
| Property | Property Value |
|---|---|
| sku | APB16-03 |
