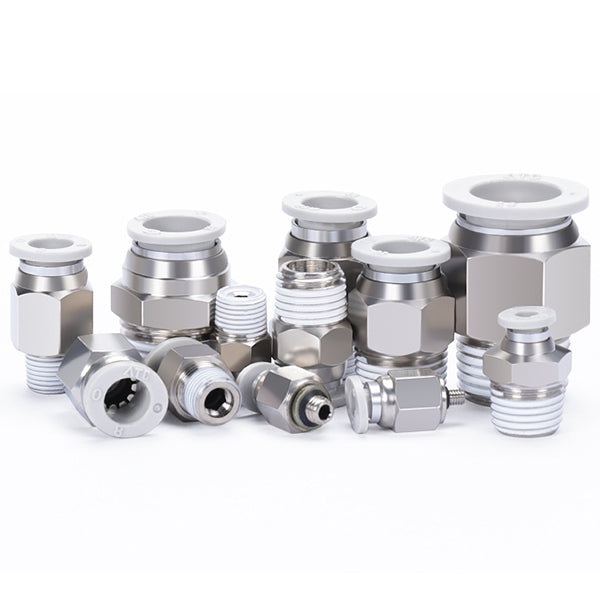

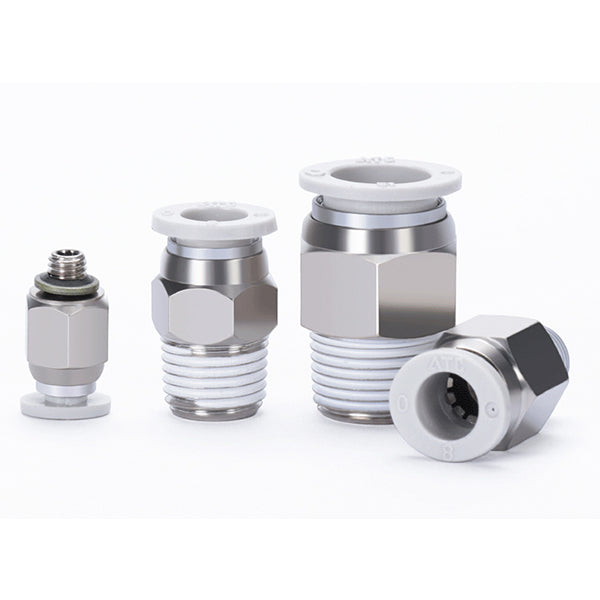

Airtac APC Threaded Quick Connect Coupling APC10-M12A
$3.84
Regular price
$11.34
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
APC10-M12A
Product type:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
Compact design enables space-saving installation with cost-effective performance. Features M5 metric thread integrated with O-ring and pre-applied sealant on threaded portion, ensuring leak-proof threaded connections.
Type: Male Threaded Straight Connector , Brand: Airtac , Series: APC
Installation note:
Insert tube fully until "click" sound is heard. For maintenance,
depress sleeve collar completely before tube removal. Avoid side-load
forces exceeding 15N during operation.
Type: Male Threaded Straight Connector , Brand: Airtac , Series: APC
AirTAC APC10-M12A Threaded Quick Connector Specifications
- Model: APC10-M12A
- Type: Push-to-connect threaded fitting (male thread)
- Body material: PBT (Polybutylene Terephthalate) + 30% GF
- Seal material: NBR (Nitrile Rubber)
- Thread specification: M12×1.5 male
- Tube compatibility: Ø10mm OD pneumatic tubing
- Max working pressure: 1.0 MPa (145 psi)
- Temperature range: -20℃ to 80℃ (-4°F to 176°F)
- Leakage rate: ≤5 bubbles/min (ISO 6952 test standard)
- Certification: RoHS compliant
- Weight: 12g ±0.5g
- Dimensions: 30mm(L) × 15mm(Diameter) × 15mm(Hex width)
High-flow pneumatic connector with 360° rotatable sleeve design for flexible hose routing. Features anti-vibration teeth for secure tube retention and color-coded collar (standard blue) for quick identification. The brass-threaded insert ensures durable mating with equipment ports.
Typical Applications:
- Pneumatic cylinder port connections
- Air tool quick-disconnect systems
- Packaging machine air distribution
- Robotic arm pneumatic circuits
- CNC machine tool cooling lines
Installation note:
Insert tube fully until "click" sound is heard. For maintenance,
depress sleeve collar completely before tube removal. Avoid side-load
forces exceeding 15N during operation.
| Property | Property Value |
|---|---|
| sku | APC10-M12A |
| Insert Tube | <10mm> |
| Threaded Port | M12A |
