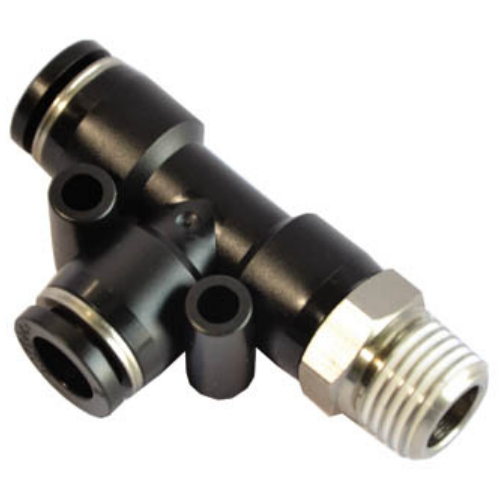

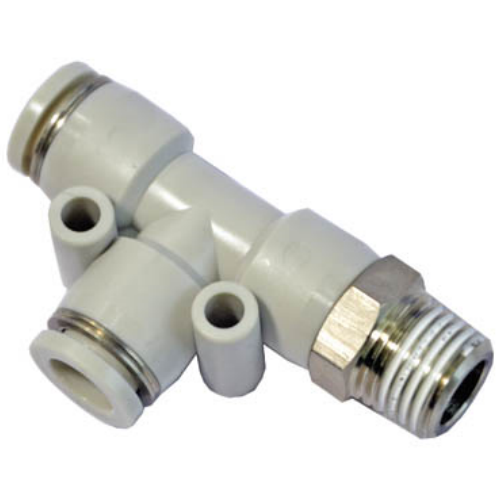

Airtac APD T-Side Port Tee Fitting APD12-01
2、Superior flow performance enabling throughput equivalent to the inner diameter of connected tubing;
3、Tool-free insertion/extraction design ensures efficient tube connection with secure and durable sealing;
4、Pre-applied thread sealant on M5 metric threads with integrated sealing washer guarantees leak-proof integrity;
5、Nickel-plated brass construction provides corrosion and contamination resistance for expanded application scope.
Category: T-Port Tee Connectors , Brand: Airtac , Series: APD
AirTAC APD T-Style Tee Connector APD12-01 Technical Details
- Model: APD12-01
- Type: T-style pneumatic tee connector (straight thread)
- Port configuration: 3-way equal diameter
- Thread standard: PT1/8 (BSPP) / NPT1/8 optional
- Material: Brass (nickel-plated surface)
- Max working pressure: 1.0 MPa
- Temperature range: -20℃ to 80℃
- Seal material: NBR (nitrile rubber)
- Weight: 15g ±0.5g
- Dimensions: 25mm(L) × 18mm(W) × 18mm(H)
- Surface roughness: Ra ≤1.6μm
- Pressure drop: ≤0.02 MPa @ 0.5 MPa input
- Vibration resistance: 10-55Hz @ 1.5mm amplitude
Precision-machined tee connector with triple O-ring sealing structure, designed for leak-free branching in compact pneumatic systems. Features 360° rotatable ports for flexible piping alignment and corrosion-resistant nickel plating for humid environments. Compatible with ISO 1179-2 standards.
- Modular pneumatic circuit distribution
- Tooling machine air supply networks
- Robotic end-effector air line splitting
- Laboratory instrument gas routing
- Packaging machine actuator control lines
Mounting guidance:
Apply 2-3Nm torque during installation. Use thread sealant only on male threads.
Avoid overtightening - maximum 1.5 full turns after hand-tight. Compatible with
tubing OD: 4mm or 6mm (requires matching ferrule).
| Property | Property Value |
|---|---|
| sku | APD12-01 |
