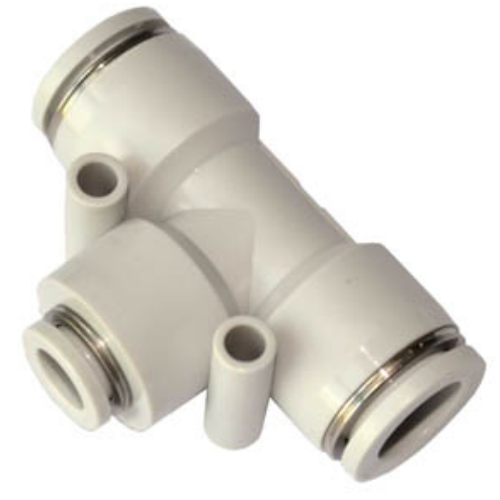

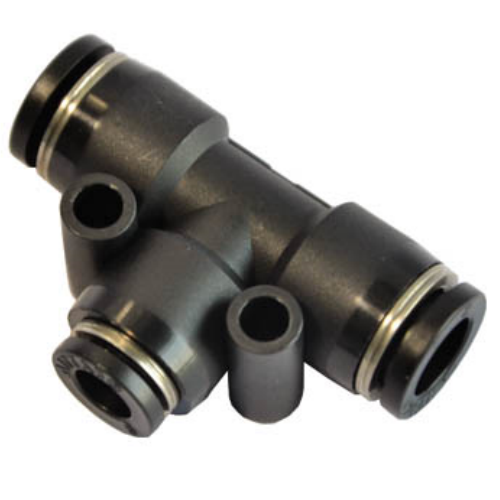

Airtac APEG Reducing Tee Fitting APEG10-6
2、Comprehensive model specifications for extensive application across pneumatic systems;
3、Optimized flow geometry maintains equivalent flow capacity to connected tubing's inner diameter;
4、Tool-free push-to-connect design ensures secure tube retention with vibration-resistant durability.
Category: T-Type Reducing Tee Connectors , Brand: AirTAC , Series: APEG
AirTAC APEG Series Reducing Tee Fitting APEG10-6 Technical Details
- Model: APEG10-6 (Metric x Metric thread)
- Thread Standards: G1/8 (M10×1.0) x G1/8 (M10×1.0) x M6×1.0
- Material: Lead-free brass CW617N (RoHS compliant)
- Surface Treatment: Electroplated nickel (5-8μm thickness)
- Pressure Rating: 0.05-1.0 MPa (7-145 psi)
- Temperature Range: -20℃ to 120℃ (with NBR seals)
- Seal Material: Nitrile Rubber (NBR) standard, optional FKM
- Flow Coefficient: Cv≈0.15
- Weight: 28g ±1g
- Dimensions: 32mm (L) × 24mm (W) × 24mm (H)
- Port Orientation: 90° equal distribution
- Vibration Resistance: 10-55Hz, 1.5mm amplitude
- Certification: ISO 8434-1, DIN 3861
Precision-engineered reducing tee for multi-diameter pneumatic circuit branching. Features corrosion-resistant nickel plating and precision-machined threads for leak-free connections. The asymmetrical design allows compact installation in confined spaces while maintaining laminar flow characteristics.
- Branching compressed air lines with different diameter requirements
- Pneumatic tool interface conversion systems
- CNC machine tool air circuit distribution
- Packaging equipment pressure balancing networks
- Robotic actuator manifold systems
Installation protocol:
Apply 2-3 wraps of PTFE tape on male threads (do not over-tighten beyond 15N·m).
Use two wrenches during assembly - one to hold main body stationary while tightening connections.
Avoid installation in areas with direct exposure to cutting fluids or hydraulic oils.
| Property | Property Value |
|---|---|
| sku | APEG10-6 |
