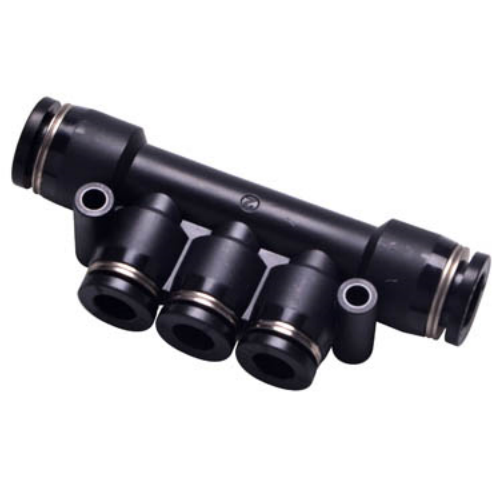

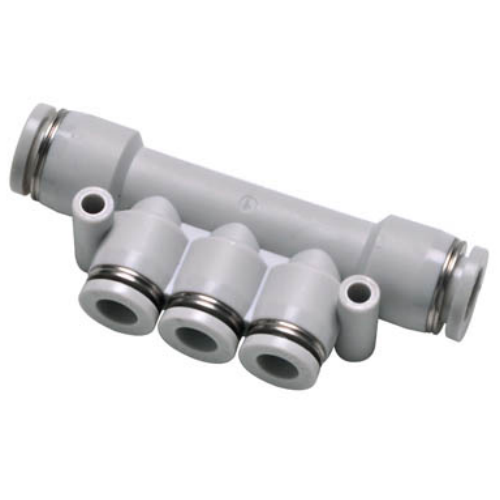

Airtac APKG 5-Port Reducer Adapter APKG12-10
2、Available in multiple models and specifications, extensively utilized in various pneumatic systems;
3、Features superior flow performance with throughput capacity equivalent to the tubing inner diameter;
4、Simplified insertion/removal operation with secure, reliable, and durable tubing connections.
Category: Threaded Pentaport Reducing Union , Brand: AIRTC , Series: PKG
AirTAC APKG12-10 Five-Way Reducing Connector Technical Details
- Model: APKG12-10
- Type: Five-way stepped reducing connector (male thread to tube)
- Primary interface: G1/8 (BSPP) external thread
- Secondary interface: Ø10mm tube push-in connection
- Material: Brass with nickel-plated finish
- Pressure rating: 0.05-1.0 MPa
- Temperature range: -20℃ to 80℃
- Seal material: NBR (Nitrile) O-rings
- Thread standard: ISO 228 (BSPP)
- Tube compatibility: PU, NY, PE (OD 10±0.3mm)
- Weight: 24.5g ±0.5g
- Dimensions: 30mm (L) × 12mm (major diameter) × 10mm (reduced section)
- Surface roughness: Ra ≤3.2μm
- Vibration resistance: ≤10Hz, 1.5mm amplitude
Precision-machined pneumatic adapter enabling secure transition between G1/8 threaded components and 10mm OD tubing systems. Features anti-rotation hex flats (8mm AF) for tool tightening and dual-stage sealing with embedded O-rings. The stepped design prevents over-insertion of tubing while maintaining laminar airflow.
- Pneumatic valve manifold interconnections
- Robotic end-effector air supply conversions
- Packaging machine air circuit modifications
- Compressed air distribution in tight spaces
- Medical device pneumatic system retrofits
Installation protocol:
Apply thread sealant only on male threads (not on tube side).
Use torque wrench with 1.2-1.5N·m tightening force.
Perform pressure test at 1.5x working pressure after installation.
| Property | Property Value |
|---|---|
| sku | APKG12-10 |
