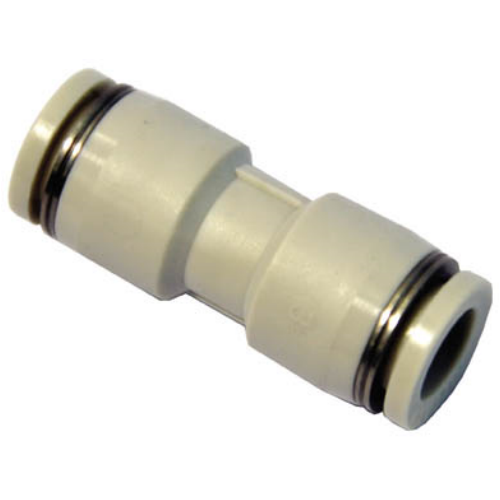

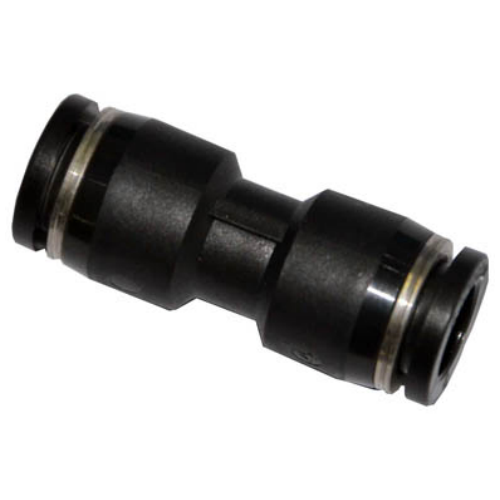

Airtac APU Straight Quick Plug Connector APU4
2、Available in multiple configurations and specifications, widely compatible with various pneumatic systems;
3、Superior flow performance achieves throughput capacity matching the inner diameter of connected tubing;
4、Features quick-connect/disconnect mechanism for efficient tube installation, ensuring secure leak-resistant connections with enhanced durability.
Category: Threaded Type One-way Flow Control Valve , Brand: AirTAC , Series: APU
AirTAC APU4 Push-to-Connect Straight Fitting Technical Details
- Model: APU4 (Standard Straight Type)
- Body material: Nickel-plated brass (C3604)
- Seal material: NBR (Nitrile rubber)
- Applicable tubing: PU/Nylon (OD 4mm ±0.1mm)
- Operating pressure: 0.05-1.0 MPa
- Temperature range: -20℃ to 80℃
- Thread specification: M5×0.8 (male thread both ends)
- Flow rate: 200 L/min (ANR)
- Leakage: ≤5 bubbles/min (ISO 6952 test)
- Vibration resistance: 1.5mm amplitude (10-60Hz)
- Protection rating: IP40
- Certifications: RoHS compliant, REACH SVHC-free
- Weight: 24.5g ±0.3g
- Dimensions: 22mm(L) × 16mm(W) × 16mm(H)
High-flow pneumatic connector with 360° rotatable design for flexible piping layouts. Features triple-locking teeth mechanism ensuring secure tube retention under vibration. The nickel plating provides corrosion resistance in humid environments. Compatible with ISO 14743 and JIS B8381 standards.
- Robotic arm pneumatic tool changers
- PCB handling vacuum systems
- Food packaging machine air circuits
- Dental chair pneumatic controls
- Semiconductor cleanroom equipment
- Cut tubing square (90°±2°) using dedicated cutter
- Insert tube fully until tactile "click" is heard
- Verify connection by pulling with 50N force
- Maximum allowable misalignment: 3° angular/1mm lateral
Maintenance tip: Lubricate tube ends with silicone oil (JIS K2220 1.5cs) when used in high-cycle applications (>50,000 insertions). Replace O-ring if disconnection force drops below 15N.
| Property | Property Value |
|---|---|
| sku | APU4 |
