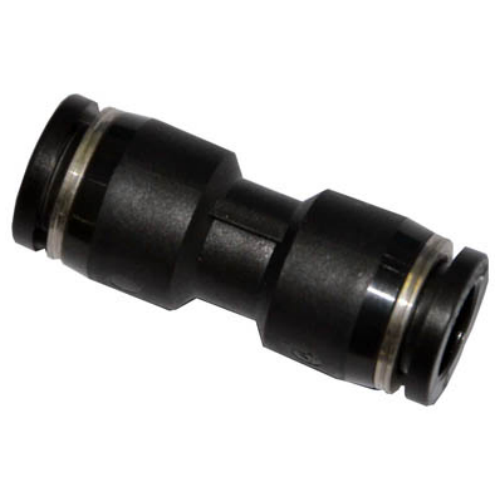

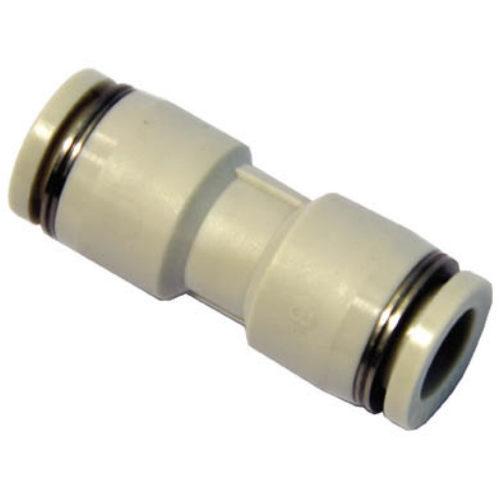

Airtac APU Straight Quick Plug Connector APU6
2、Available in multiple configurations and specifications, widely compatible with various pneumatic systems;
3、Superior flow performance achieves throughput capacity matching the inner diameter of connected tubing;
4、Features quick-connect/disconnect mechanism for efficient tube installation, ensuring secure leak-resistant connections with enhanced durability.
Category: Threaded Type One-way Flow Control Valve , Brand: AirTAC , Series: APU
AirTAC APU6 Straight Through Quick Connector Technical Details
- Model: APU6 Series (APU6M/APU6F variants)
- Thread standard: 1/8" BSPP (G1/8) or NPT1/8 optional
- Material: Nickel-plated brass body with PPS resin sleeve
- Seal material: HNBR (Hydrogenated Nitrile) with EPDM backup
- Operating pressure: 0.05-1.0 MPa (7-145 psi)
- Temperature range: -20℃ to 80℃ (continuous) / 120℃ peak (intermittent)
- Flow rate: 350 NL/min (at 0.5 MPa pressure drop)
- Leakage: <0.01 mL/min under 0.5 MPa air pressure
- Insertion force: ≤25N (with lubrication)
- Vibration resistance: 10-55Hz, 1.5mm amplitude
- Weight: 24g ±1g (male connector), 22g ±1g (female connector)
- Dimensions: 28mm(L) × 16mm(Dia) body / 42mm total length with fittings
- Certification: RoHS compliant, REACH SVHC <0.1%
High-flow push-to-connect coupler featuring dual-stage sealing and anti-pop-off sleeve lock. The 45° chamfered nozzle design enables single-handed operation even with gloved hands. Precision-machined internal O-ring groove prevents seal extrusion under pressure cycling. Optional dust cap (AS-6 accessory) available for dirty environments.
- Modular pneumatic tool connections in automotive assembly
- Quick-change vacuum gripper systems for pick-and-place robots
- Portable medical oxygen delivery systems
- Semiconductor wafer handling equipment
- Mobile hydraulic test bench interfaces
Installation protocol:
For maximum seal life, perform initial lubrication using MIL-G-23827 grease.
Avoid side-load forces exceeding 15N during connection. Replace O-rings every
50,000 cycles in high-velocity applications. Compatible with 6mm OD polyurethane
tubing (recommended wall thickness 1.5mm).
| Property | Property Value |
|---|---|
| sku | APU6 |
