Airtac BPCF Female Thread Straight Through Fitting BPCF1203
$6.27
Regular price
$13.77
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
BPCF1203
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description

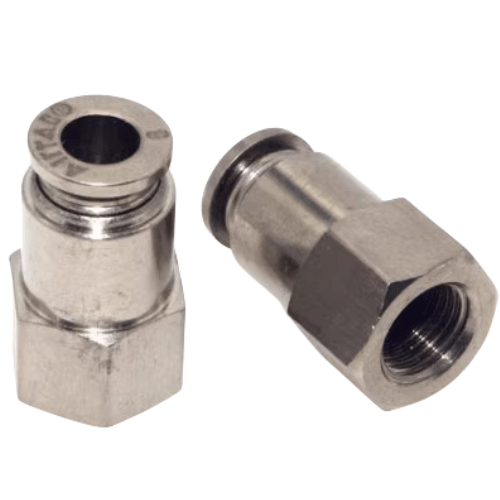

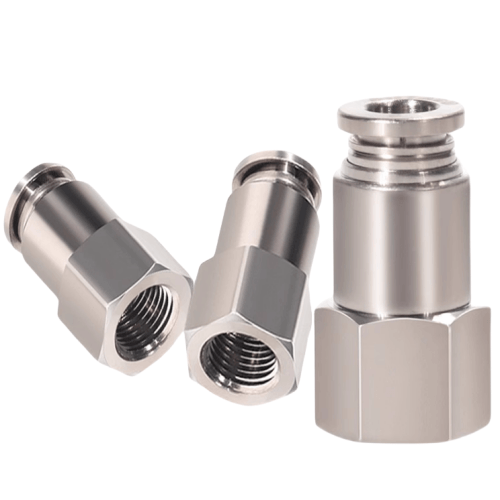

BPCF Female Threaded Metal Straight Connector
1. Full-metal threaded straight connector with copper-containing internal components; Available in multiple models/specifications for diverse pneumatic system applications;
2. Superior flow characteristics with capacity equivalent to tubing inner diameter;
3. Tool-free tube insertion/extraction mechanism ensures fast operation; Secure and durable polyurethane tube connection;
4. Integrated hermetic sealing design - M5 metric threads with integrated sealing washers guarantee leak-free threaded connections;
5. Nickel-plated brass construction prevents corrosion and contamination, ensuring extended service life;
6. Full-metal configuration enables reliable performance in high-temperature environments.
Category: Female Threaded Straight Connectors | Brand: AirTAC | Series: BPCF
Installation protocol:
Apply 1.5-2 wraps of PTFE tape clockwise on male threads.
Tighten to 3.5-4.5 N·m torque using backup wrench.
Pressure test recommended after installation.
Not compatible with hydrocarbon-based lubricants or acidic media.
Avoid side-load forces on connected tubing exceeding 15N.
1. Full-metal threaded straight connector with copper-containing internal components; Available in multiple models/specifications for diverse pneumatic system applications;
2. Superior flow characteristics with capacity equivalent to tubing inner diameter;
3. Tool-free tube insertion/extraction mechanism ensures fast operation; Secure and durable polyurethane tube connection;
4. Integrated hermetic sealing design - M5 metric threads with integrated sealing washers guarantee leak-free threaded connections;
5. Nickel-plated brass construction prevents corrosion and contamination, ensuring extended service life;
6. Full-metal configuration enables reliable performance in high-temperature environments.
Category: Female Threaded Straight Connectors | Brand: AirTAC | Series: BPCF
AirTAC BPCF1203 Metal Female Threaded Straight Connector
- Model: BPCF1203
- Thread Standard: Metric (M5×0.8 internal thread both ends)
- Material: Nickel-plated brass body
- Seal Material: NBR (Nitrile) O-rings
- Max Working Pressure: 1.6 MPa (232 psi)
- Burst Pressure: ≥4.8 MPa (696 psi)
- Temperature Range: -20℃ to 80℃ (-4°F to 176°F)
- Fluid Compatibility: Compressed air, inert gases
- Surface Treatment: Electroplated corrosion protection
- Weight: 48g ±2g
- Dimensions: 30mm(L) × 12mm(Dia) × 12mm(Through-hole)
- Standards: ISO 8434-1, RoHS compliant
- Thread Engagement: Minimum 4 full turns required
Heavy-duty straight connector with dual female threads, designed for high-vibration environments. Features precision-machined tapered threads for leak-free connections and reinforced sealing grooves. The nickel plating provides enhanced wear resistance against repeated assembly cycles.
Typical Applications:
- Pneumatic cylinder port connections
- Modular assembly in automation lines
- Compressed air distribution manifolds
- Robotic end-effector tooling air supply
- CNC machine tool pneumatic circuits
Installation protocol:
Apply 1.5-2 wraps of PTFE tape clockwise on male threads.
Tighten to 3.5-4.5 N·m torque using backup wrench.
Pressure test recommended after installation.
Not compatible with hydrocarbon-based lubricants or acidic media.
Avoid side-load forces on connected tubing exceeding 15N.
| Property | Property Value |
|---|---|
| sku | BPCF1203 |
| Port Size | 12mm |
| Connection Thread | PT3/8 |
