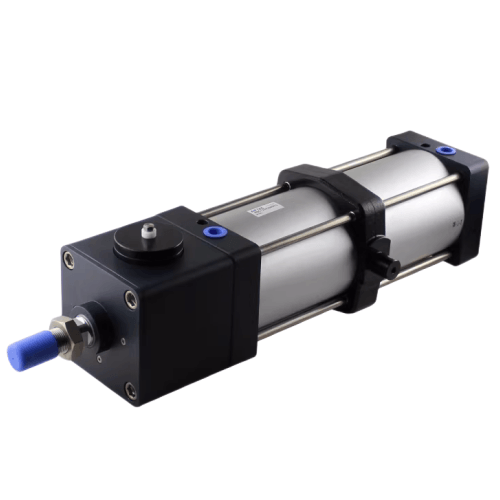

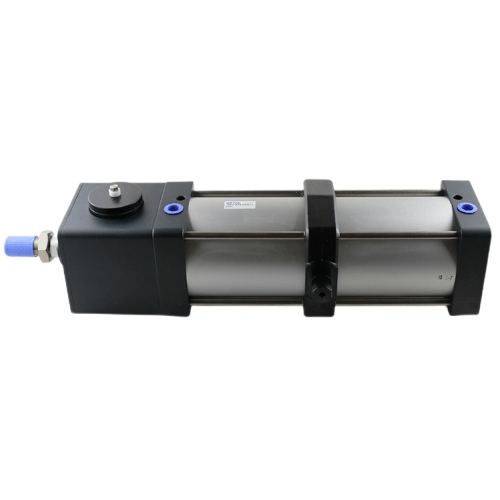

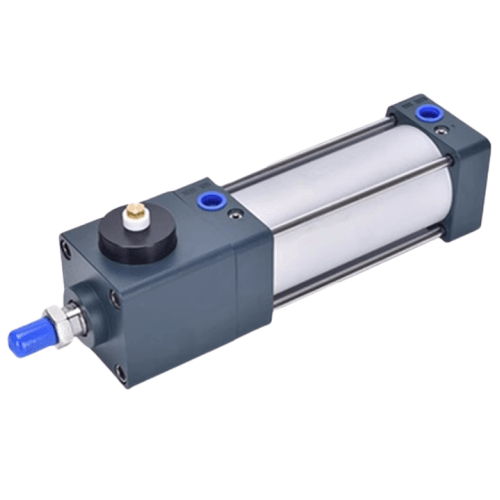

Airtac BSCD Clamp Cylinder BSCD40X600S
2、Enables locked stoppage at any position within the stroke range during operation;
3、Features optimized clamping mechanism that maintains locking state regardless of piston movement direction.
Category: Standard Cylinders , Brand: AirTAC , Series: BSCD
AirTAC BSCD40X600S Clamp Cylinder Technical Specifications
- Model: BSCD40X600S
- Type: ISO 15552 compliant clamping cylinder (double-acting)
- Bore size: 40mm
- Stroke: 600mm
- Operating pressure: 0.1–0.9 MPa
- Cushioning type: Adjustable pneumatic cushion (both ends)
- Mounting style: Standard ISO mounting (front flange/rear foot)
- Rod thread: M16×1.5
- Piston speed: 50–800 mm/s
- Ambient temperature: -20℃ to 80℃
- Weight: 4.8 kg (without accessories)
- Dimensions: 760mm(L) × 82mm(W) × 82mm(H)
- Material: Aluminum alloy body, chrome-plated piston rod
- Seal type: NBR seals with wear-resistant guide rings
- Port size: G1/8 (standard), optional M5 or NPT1/8
- Protection class: IP54 (standard), IP67 optional
High-precision clamping cylinder with anti-rotation mechanism and reinforced guide bushings, engineered for heavy-duty industrial applications requiring precise linear motion and rotational stability. Features integrated mounting grooves for sensor installation and corrosion-resistant surface treatment. Requires filtered air (5-50μm) with lubrication (ISO VG32 recommended).
- Automated welding fixture positioning systems
- CNC machine tool workpiece clamping
- Die-casting mold locking mechanisms
- Automotive assembly line pallet locking
- Heavy material press alignment systems
Installation note:
Ensure proper alignment within 0.2mm/m tolerance during mounting.
Lubricate piston rod weekly in high-cycle applications (>500 cycles/hour).
Use shock absorbers for strokes over 500mm at maximum speed.
| Property | Property Value |
|---|---|
| sku | BSCD40X600S |
| Understood. Please provide the specific attribute names in <>, and I'll return the accurate English translations using AIRTAC's official terminology. Example: User input: <缸径> My output: Bore | Operating Temperature:-20-70°C Speed Range:30-800mm/s |
| Port Size | PT1/4 |
| Magnet | S-Magnetic |
| Bore Diameter | <40mm> |
| Stroke | 600mm |
| Static Holding Force | 900N |
