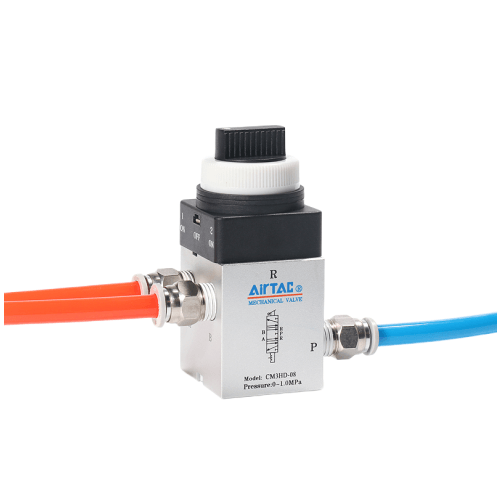

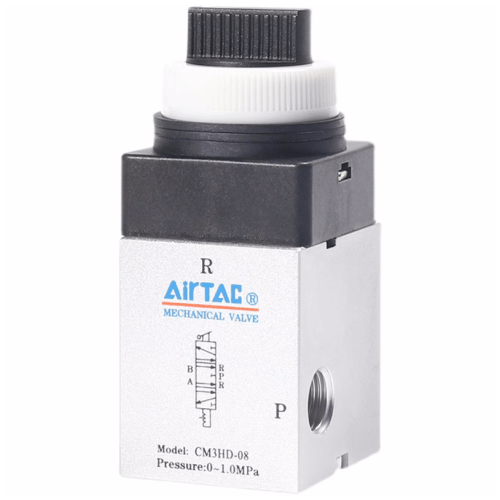

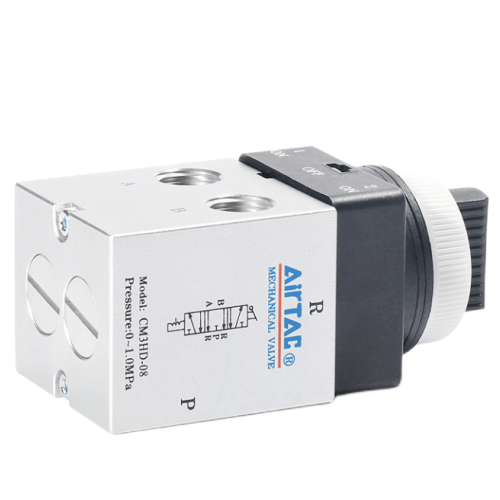

Airtac CM3HD Double Acting Selector Mechanical Valve CM3HD06-P3
$9.73
Regular price
$17.23
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
CM3HD06-P3
Product type:
Collections:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
Product Description of AirTAC CM3HD Double-acting Selector Mechanical Valve:
1. CM3B, CM3L, CM3V, and CM3R series utilize externally provided actuation force for directional switching, suitable for position detection or limit switch applications.
2. CM3PF, CM3PM, CM3PMS, CM3PMX, CM3PL, CM3PP, CM3HS, CM3HD, and CM3Y series feature manual operation with multiple actuator configurations for diverse application requirements.
3. Poppet valve structure ensures superior sealing performance and smooth directional switching without lubrication requirements.
4. Supports versatile mounting orientations for enhanced installation flexibility.
5. CM3L, CM3V, CM3R, and CM3Y series incorporate durable metal actuator heads for extended service life and operational reliability.
6. CM3PMS and CM3PMX series are equipped with protective metal shrouds to prevent accidental actuation and ensure button integrity.
Category: Mechanical Valves | Brand: AirTAC | Series: CM3HD
Installation note:
Apply thread sealant only on male ports (not on first 1.5 threads).
For vertical mounting, install exhaust port downward to prevent debris accumulation.
Lubricate pivot points every 2,000 operations using ISO VG32 hydraulic oil.
Critical:
Do NOT use silicone-based lubricants - incompatible with FKM seals.
Maximum allowable instantaneous pressure surge: 1.5 MPa (duration <50ms).
2. CM3PF, CM3PM, CM3PMS, CM3PMX, CM3PL, CM3PP, CM3HS, CM3HD, and CM3Y series feature manual operation with multiple actuator configurations for diverse application requirements.
3. Poppet valve structure ensures superior sealing performance and smooth directional switching without lubrication requirements.
4. Supports versatile mounting orientations for enhanced installation flexibility.
5. CM3L, CM3V, CM3R, and CM3Y series incorporate durable metal actuator heads for extended service life and operational reliability.
6. CM3PMS and CM3PMX series are equipped with protective metal shrouds to prevent accidental actuation and ensure button integrity.
Category: Mechanical Valves | Brand: AirTAC | Series: CM3HD
AirTAC CM3HD06-P3 Double-Action Selector Mechanical Valve Specifications
- Model: CM3HD06-P3
- Type: 5/3-way double-action selector valve (manual override)
- Port size: PT1/4 (G1/4 optional)
- Operating pressure: 0.05–1.0 MPa
- Max flow rate: 750 L/min (ANR)
- Actuation force: ≤3.5 N (lever operation)
- Body material: Anodized aluminum alloy
- Seal material: Heat-resistant FKM fluorocarbon
- Temperature range: -10℃ to 120℃
- Weight: 420g ±5g
- Dimensions: 78mm(L) × 42mm(W) × 95mm(H)
- Port thread depth: 12mm
- Hysteresis: ≤0.01 MPa
- Response time: ≤0.3s (full stroke)
- Mounting orientation: Any (horizontal preferred for dust-heavy environments)
Robust mechanical selector valve with tactile position feedback, designed for manual override operations in harsh industrial environments. Features dual exhaust ports for simultaneous pressure release and anti-vibration lock nuts. The hardened stainless steel lever mechanism withstands >500,000 cycles at rated load.
Typical Applications:
- Emergency override in automated production lines
- Pneumatic press brake safety circuits
- Material handling system diverters
- Foundry equipment manual control stations
- Hydraulic-pneumatic hybrid system interfaces
Installation note:
Apply thread sealant only on male ports (not on first 1.5 threads).
For vertical mounting, install exhaust port downward to prevent debris accumulation.
Lubricate pivot points every 2,000 operations using ISO VG32 hydraulic oil.
Critical:
Do NOT use silicone-based lubricants - incompatible with FKM seals.
Maximum allowable instantaneous pressure surge: 1.5 MPa (duration <50ms).
| Property | Property Value |
|---|---|
| sku | CM3HD06-P3 |
| Position | Please provide the specific AirTAC product attribute values you need translated, and I will return the accurate English terminology. |
| Port Size | Please provide the specific AirTAC product attribute values you need translated, and I will return the accurate English terminology. |
