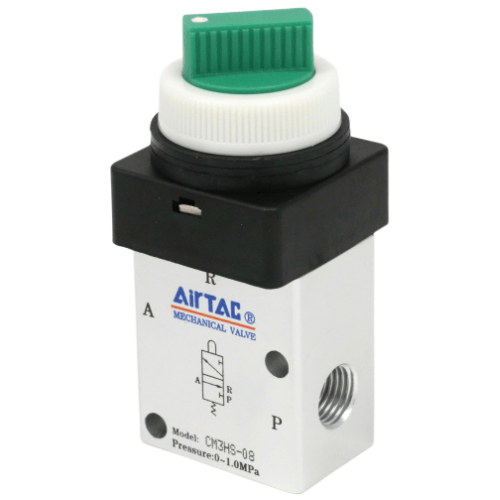

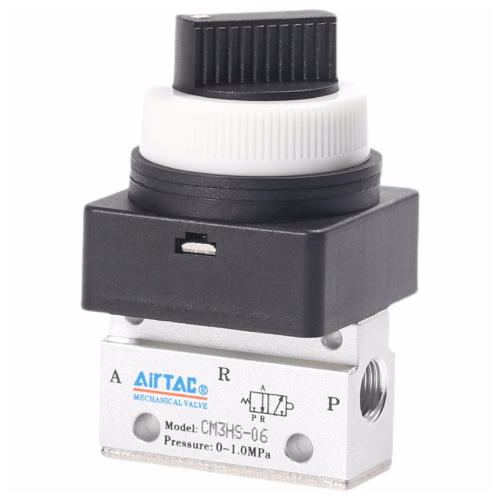

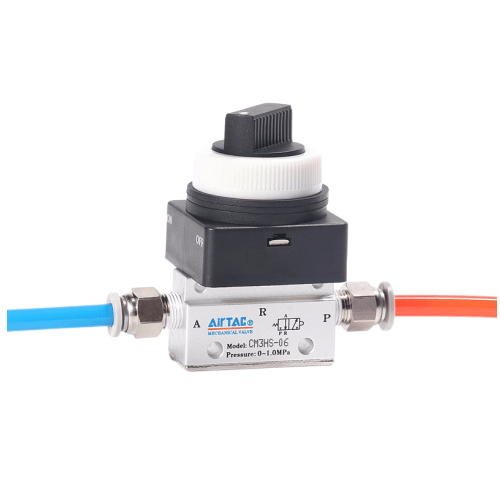

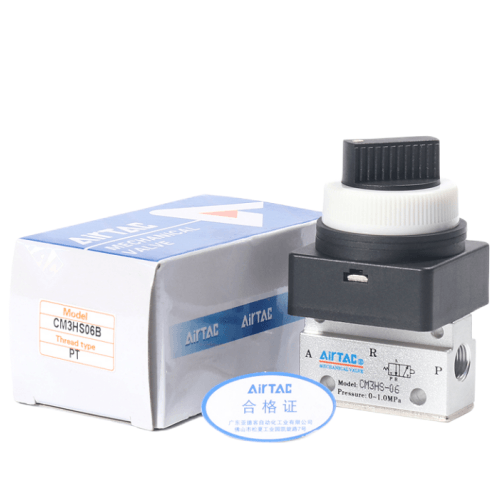

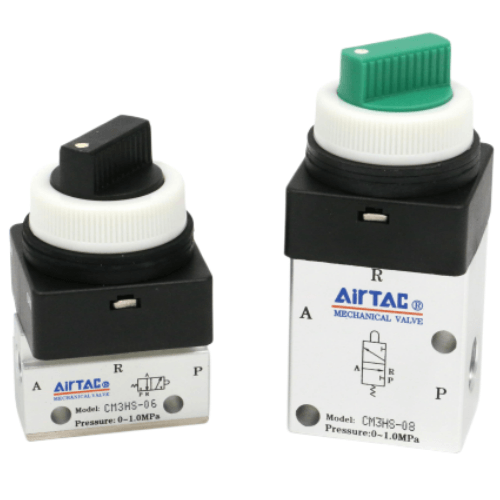

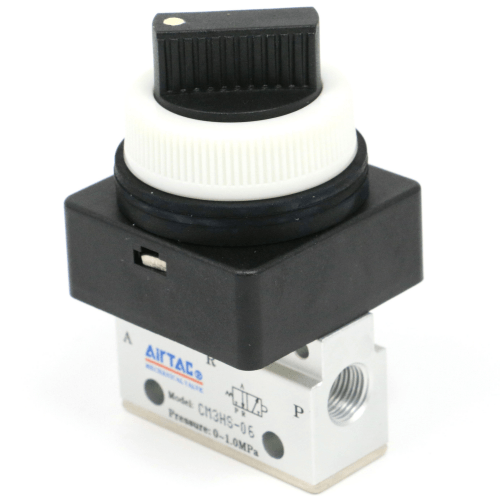

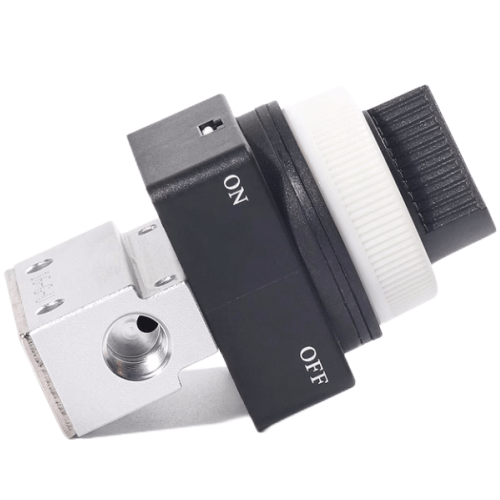

Airtac CM3HS Selector Mechanical Valve CM3HS06BG
2. CM3PF, CM3PM, CM3PMS, CM3PMX, CM3PL, CM3PP, CM3HS, CM3HD, and CM3Y series feature manual operation with diversified actuator head configurations for optimal adaptability in varied working conditions;
3. Poppet valve design ensures excellent sealing performance, smooth directional switching, and oil-free operation;
4. Multiple mounting orientations enable flexible installation and system integration;
5. CM3L, CM3V, CM3R, and CM3Y series incorporate metal actuator heads for extended service life and enhanced reliability;
6. CM3PMS and CM3PMX series are equipped with metal protective covers to safeguard pushbuttons against accidental actuation and mechanical impacts, ensuring fail-safe operation.
Category: Mechanical Valves , Brand: Airtac , Series: CM3HS
AirTAC CM3HS06BG Selector Mechanical Valve Technical Details
- Model: CM3HS06BG
- Type: 3-position selector valve (Mechanical spring return)
- Port size: G1/8 (ISO228-1 standard)
- Operating pressure range: 0.15–0.8 MPa (21.7–116 PSI)
- Valve body material: Nickel-plated brass (C3604)
- Seal material: NBR/FKM optional
- Operating temperature: -20℃ to 70℃ (NBR) / -10℃ to 100℃ (FKM)
- Installation orientation: Any (360° mountable)
- Weight: 210g ±5g
- Dimensions: 52mm(L) × 34mm(W) × 58mm(H)
- Port thread depth: 10mm (minimum engagement 7.5mm)
- Actuation force: 25N max (manual lever operation)
- Protection rating: IP65 (dust-tight & water jet resistant)
Three-position mechanical selector valve with positive center detent, designed for manual flow path switching in harsh environments. Features anti-vibration structure with stainless steel spring and wear-resistant cam mechanism. Requires 5-40μm filtered compressed air (lubricated or non-lubricated).
- Production line fixture clamping sequence control
- Pneumatic tool safety isolation circuits
- Material handling system diverter valves
- Hydraulic system pilot pressure selection
- Emergency stop override systems
Maintenance note:
Lubricate pivot points with ISO VG32 hydraulic oil every 50,000 cycles.
Avoid side-loading the manual lever - apply force perpendicular to
lever axis for smooth operation.
| Property | Property Value |
|---|---|
| sku | CM3HS06BG |
| Position | 3-Port 2-Position |
| Port Size | PT1/8 |
