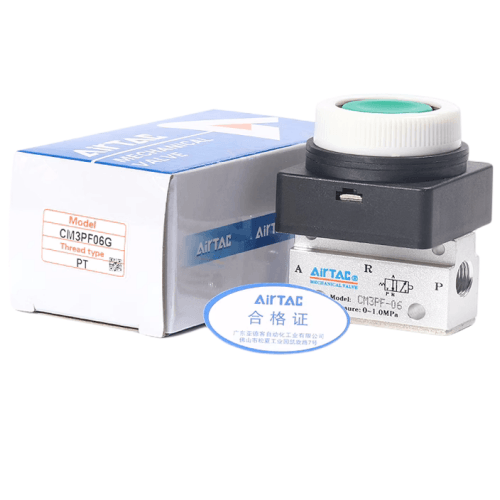

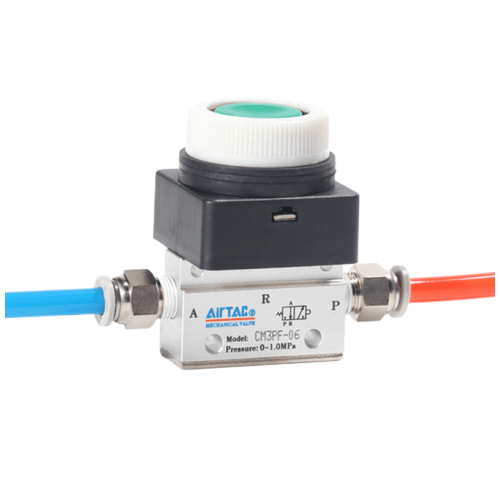

Airtac CM3PF Flat Push Button Mechanical Valve CM3PF05G
1. CM3B, CM3L, CM3V, and CM3R series require external force for directional switching, suitable for position detection or limit switch applications.
2. CM3PF, CM3PM, CM3PMS, CM3PMX, CM3PL, CM3PP, CM3HS, CM3HD, and CM3Y series feature manual operation with multi-configuration actuator heads for diverse operational conditions.
3. Shut-off type structure ensures excellent sealing performance, responsive direction switching, and lubrication-free operation.
4. Multi-position mounting capability enables flexible installation configurations.
5. CM3L, CM3V, CM3R, and CM3Y series incorporate metal actuator heads for enhanced durability and operational stability.
6. CM3PMS and CM3PMX series integrate metal protective covers to safeguard button caps and prevent accidental activation from external forces.
Category: Mechanical Valves | Brand: AirTAC | Series: CM3PF
AirTAC CM3PF05G Flat-Head Push Button Mechanical Valve Specifications
- Model: CM3PF05G
- Type: 3/2-way manual reset mechanical valve (normally closed)
- Port size: G1/8 (ISO228 standard)
- Operating pressure: 0.15–0.8 MPa (21.7–116 PSI)
- Max flow rate: 450 NL/min (ANR)
- Valve body material: Nickel-plated brass
- Seal material: NBR (Nitrile rubber)
- Button type: Flat-head mushroom-style with mechanical lock
- Reset type: Manual twist-release mechanism
- Operating temperature: -5℃ to 70℃
- Weight: 215g ±5g (including accessories)
- Dimensions: 40mm(L) × 25mm(W) × 62mm(H)
- Mounting: Direct panel mounting with M18×1.5 thread
- Actuation force: 25-35N (emergency stop compliant)
Industrial-grade emergency stop valve featuring a positive-lock flat button design with 360° accessibility. The chrome-plated steel button head provides corrosion resistance and tactile feedback, while the dual-stage sealing system prevents accidental release. Designed for ISO 13850 safety compliance with anti-vibration construction.
- Machinery emergency stop systems (ESTOP)
- Production line manual override stations
- Pneumatic press safety interlocks
- Packaging equipment jam release systems
- Training simulators for industrial controls
Installation notes:
Requires 50mm minimum clearance around button for emergency access.
Use thread sealant on mounting connections. Test mechanical lock
engagement monthly - proper operation requires audible "click"
when fully depressed. Compatible with 10-28mm panel thickness.
| Property | Property Value |
|---|---|
| sku | CM3PF05G |
| Position | 3-Port 2-Position |
| Port Size | M5 |
