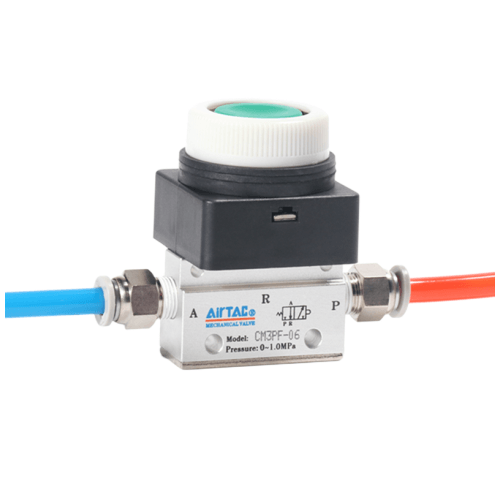

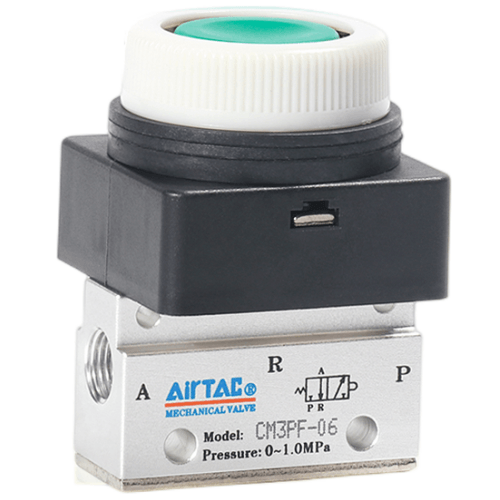

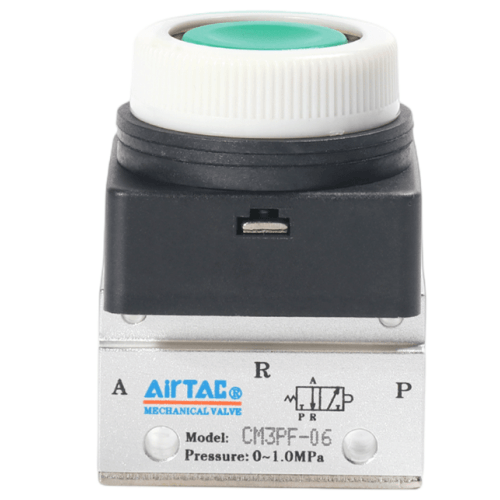

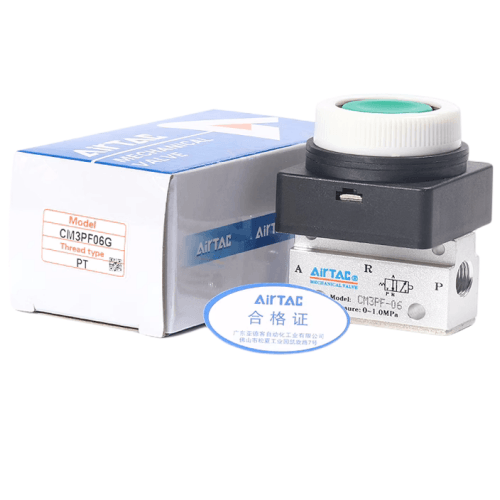

Airtac CM3PF Flat Push Button Mechanical Valve CM3PF05Y
$21.16
Regular price
$28.66
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
CM3PF05Y
Product type:
Collections:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
CM3PF Flat-Button Mechanical Valve (AirTAC CM3 Series
1. CM3B, CM3L, CM3V, and CM3R series require external force for directional switching, suitable for position detection or limit switch applications.
2. CM3PF, CM3PM, CM3PMS, CM3PMX, CM3PL, CM3PP, CM3HS, CM3HD, and CM3Y series feature manual operation with multi-configuration actuator heads for diverse operational conditions.
3. Shut-off type structure ensures excellent sealing performance, responsive direction switching, and lubrication-free operation.
4. Multi-position mounting capability enables flexible installation configurations.
5. CM3L, CM3V, CM3R, and CM3Y series incorporate metal actuator heads for enhanced durability and operational stability.
6. CM3PMS and CM3PMX series integrate metal protective covers to safeguard button caps and prevent accidental activation from external forces.
Category: Mechanical Valves | Brand: AirTAC | Series: CM3PF
Installation note:
Apply silicone-free grease to stem annually. Ensure button travel path clearance of 15mm.
For vertical mounting, install drain port downward to prevent debris accumulation.
1. CM3B, CM3L, CM3V, and CM3R series require external force for directional switching, suitable for position detection or limit switch applications.
2. CM3PF, CM3PM, CM3PMS, CM3PMX, CM3PL, CM3PP, CM3HS, CM3HD, and CM3Y series feature manual operation with multi-configuration actuator heads for diverse operational conditions.
3. Shut-off type structure ensures excellent sealing performance, responsive direction switching, and lubrication-free operation.
4. Multi-position mounting capability enables flexible installation configurations.
5. CM3L, CM3V, CM3R, and CM3Y series incorporate metal actuator heads for enhanced durability and operational stability.
6. CM3PMS and CM3PMX series integrate metal protective covers to safeguard button caps and prevent accidental activation from external forces.
Category: Mechanical Valves | Brand: AirTAC | Series: CM3PF
AirTAC CM3PF05Y Flat-Head Push Button Mechanical Valve Specifications
- Model: CM3PF05Y
- Type: 3/2-way normally closed (manual reset)
- Port size: PT1/4 (G1/8 optional)
- Operating pressure: 0.1–0.8 MPa
- Operating temperature: -20℃ to 80℃
- Actuation force: 3.5N ±0.5N
- Body material: Aluminum alloy (anodized)
- Seal material: NBR/FKM optional
- Weight: 215g ±5g
- Dimensions: 54mm(L) × 34mm(W) × 68mm(H)
- Mounting type: Panel mounting (12mm cutout)
- Mechanical life: ≥500,000 cycles
- Pressure resistance: 1.2 MPa (burst pressure)
Manual override valve with ergonomic flat-head design for tactile feedback and dust resistance. Features dual-stage sealing with redundant O-rings and anti-rotation stem design. Compatible with ISO 15407-1 standards for industrial durability.
Typical Applications:
- Emergency stop systems in production lines
- Pneumatic fixture manual override
- Training equipment for technical schools
- Mobile hydraulic service units
- Cleanroom environment controls
Installation note:
Apply silicone-free grease to stem annually. Ensure button travel path clearance of 15mm.
For vertical mounting, install drain port downward to prevent debris accumulation.
Fluid Compatibility:
- Compressed air (ISO 8573-1:2010 Class 3)
- Inert gases (N₂, CO₂)
- Non-lubricated operation supported
| Property | Property Value |
|---|---|
| sku | CM3PF05Y |
| Position | 3-Port 2-Position |
| Port Size | M5 |
