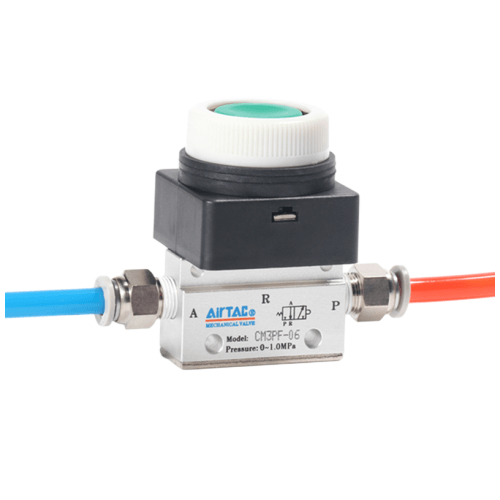

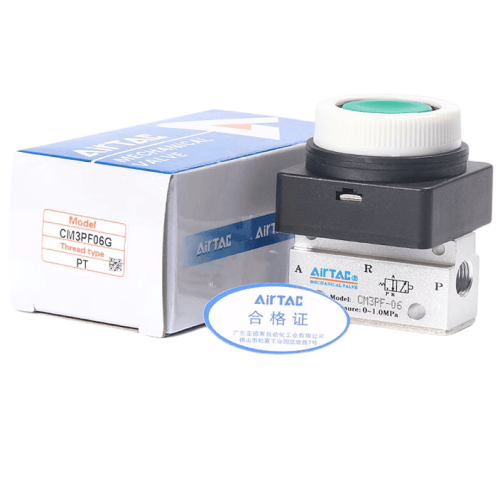

Airtac CM3PF Flat Push Button Mechanical Valve CM3PF06-P1
1. CM3B, CM3L, CM3V, and CM3R series require external force for directional switching, suitable for position detection or limit switch applications.
2. CM3PF, CM3PM, CM3PMS, CM3PMX, CM3PL, CM3PP, CM3HS, CM3HD, and CM3Y series feature manual operation with multi-configuration actuator heads for diverse operational conditions.
3. Shut-off type structure ensures excellent sealing performance, responsive direction switching, and lubrication-free operation.
4. Multi-position mounting capability enables flexible installation configurations.
5. CM3L, CM3V, CM3R, and CM3Y series incorporate metal actuator heads for enhanced durability and operational stability.
6. CM3PMS and CM3PMX series integrate metal protective covers to safeguard button caps and prevent accidental activation from external forces.
Category: Mechanical Valves | Brand: AirTAC | Series: CM3PF
AirTAC CM3PF06-P1 Flat-Head Push Button Mechanical Valve Specifications
- Model: CM3PF06-P1
- Type: 3/2-way normally closed (manual reset)
- Port size: PT1/8 (G1/8 optional)
- Operating pressure: 0.05–0.7 MPa
- Operating force: 3.5N±1N (button press)
- Body material: PA66+GF25 (30% glass fiber reinforced)
- Seal material: HNBR (hydrogenated nitrile)
- Temperature range: -10℃ to 80℃
- Weight: 85g±2g
- Dimensions: 38mm(L) × 26mm(W) × 54mm(H)
- Mounting type: Panel mounting (compatible with 1-5mm panel thickness)
- Actuation type: Mechanical latching mechanism
- Cycle life: ≥500,000 operations
- Protection rating: IP67 (dust/water resistant)
Compact manual override valve with tactile feedback, featuring anti-vibration lock mechanism and ergonomic low-profile design. The chrome-plated brass stem and self-lubricating guide bush ensure smooth operation. Includes dual-color status indicator (red/green) for visual position confirmation.
- Emergency stop override in automated production lines
- Manual mode switching for CNC machine tools
- Pneumatic system maintenance bypass control
- Prototype equipment debugging stations
- Cleanroom compatible machinery (low particle emission)
Installation note:
Ensure minimum 15mm clearance below panel for full button travel.
Apply thread sealant (PTFE tape recommended) on port connections.
For vertical mounting, orient exhaust port downward to prevent debris accumulation.
| Property | Property Value |
|---|---|
| sku | CM3PF06-P1 |
| Position | Please provide the specific AirTAC product attribute values you need translated, and I will return the accurate English terminology. |
| Port Size | Please provide the specific AirTAC product attribute values you need translated, and I will return the accurate English terminology. |
