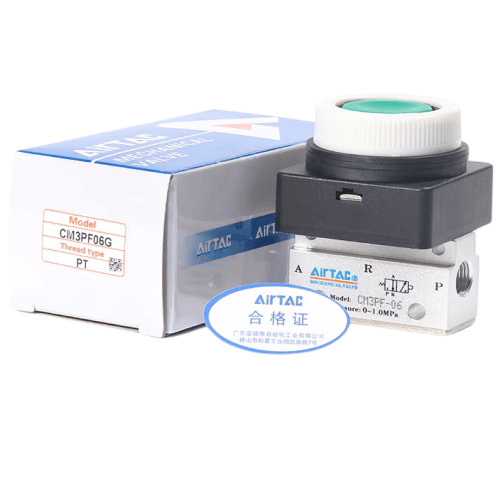

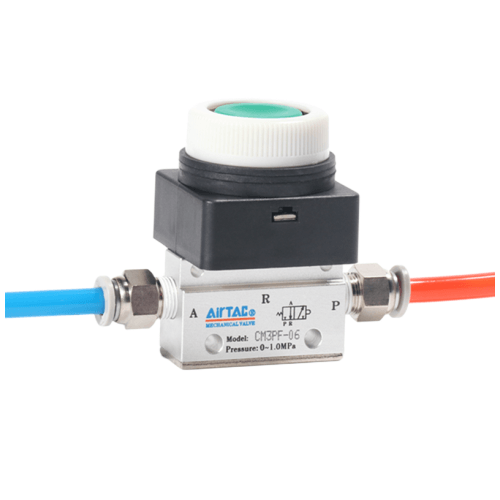

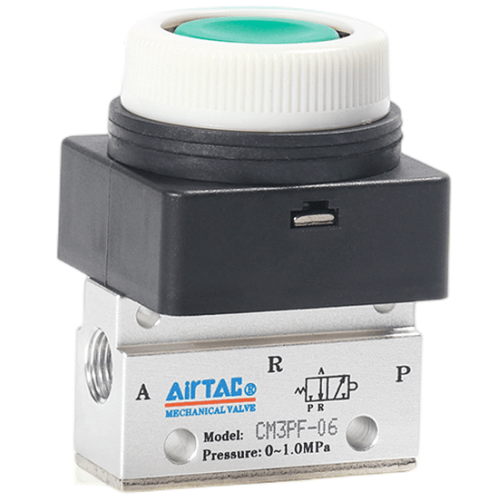

Airtac CM3PF Flat Push Button Mechanical Valve CM3PF06-P2
$9.73
Regular price
$17.23
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
CM3PF06-P2
Product type:
Collections:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
CM3PF Flat-Button Mechanical Valve (AirTAC CM3 Series
1. CM3B, CM3L, CM3V, and CM3R series require external force for directional switching, suitable for position detection or limit switch applications.
2. CM3PF, CM3PM, CM3PMS, CM3PMX, CM3PL, CM3PP, CM3HS, CM3HD, and CM3Y series feature manual operation with multi-configuration actuator heads for diverse operational conditions.
3. Shut-off type structure ensures excellent sealing performance, responsive direction switching, and lubrication-free operation.
4. Multi-position mounting capability enables flexible installation configurations.
5. CM3L, CM3V, CM3R, and CM3Y series incorporate metal actuator heads for enhanced durability and operational stability.
6. CM3PMS and CM3PMX series integrate metal protective covers to safeguard button caps and prevent accidental activation from external forces.
Category: Mechanical Valves | Brand: AirTAC | Series: CM3PF
Installation note:
Requires minimum 6mm panel thickness for secure mounting. Apply thread sealant only on male ports,
avoiding contamination of internal flow paths. For horizontal mounting, ensure button orientation
faces downward to prevent debris accumulation.
1. CM3B, CM3L, CM3V, and CM3R series require external force for directional switching, suitable for position detection or limit switch applications.
2. CM3PF, CM3PM, CM3PMS, CM3PMX, CM3PL, CM3PP, CM3HS, CM3HD, and CM3Y series feature manual operation with multi-configuration actuator heads for diverse operational conditions.
3. Shut-off type structure ensures excellent sealing performance, responsive direction switching, and lubrication-free operation.
4. Multi-position mounting capability enables flexible installation configurations.
5. CM3L, CM3V, CM3R, and CM3Y series incorporate metal actuator heads for enhanced durability and operational stability.
6. CM3PMS and CM3PMX series integrate metal protective covers to safeguard button caps and prevent accidental activation from external forces.
Category: Mechanical Valves | Brand: AirTAC | Series: CM3PF
AirTAC CM3PF06-P2 Flat-Head Push Button Mechanical Valve Specifications
- Model: CM3PF06-P2
- Type: 3/2-way normally closed (mechanical actuation)
- Port size: PT1/8 (G1/8 optional)
- Operating pressure range: 0.15–0.8 MPa (21.7–116 PSI)
- Actuation force: 3.5N ±0.5N (button press)
- Flow coefficient (Cv): 0.45
- Seal material: NBR (Nitrile rubber), Viton optional
- Temperature range: -5℃ to 80℃ (NBR seals)
- Body material: Aluminum alloy (anodized surface)
- Response time: ≤50ms (full stroke actuation)
- Weight: 168g ±3g
- Dimensions: 48mm(L) × 34mm(W) × 52mm(H)
- Port thread depth: 9.5mm (PT1/8)
- Protection rating: IP67 (dust/water resistant)
- Cycle life: ≥500,000 operations
Manual override valve with tactile feedback, featuring a low-profile design for panel mounting in confined spaces. The hardened stainless steel spring and wear-resistant guide structure ensure precise mechanical engagement. Compatible with ISO 15407-1 standards, it supports both air and vacuum applications when using appropriate seals.
Typical Applications:
- Emergency stop systems in assembly line equipment
- Manual override for automated pneumatic circuits
- Compact control panels for semiconductor manufacturing tools
- Mobile hydraulic service units requiring manual air control
- Safety interlocks in food processing machinery
Installation note:
Requires minimum 6mm panel thickness for secure mounting. Apply thread sealant only on male ports,
avoiding contamination of internal flow paths. For horizontal mounting, ensure button orientation
faces downward to prevent debris accumulation.
Maintenance:
Lubricate pivot points with ISO VG32 pneumatic oil every 6 months in continuous operation.
Replace button cap if tactile feedback becomes inconsistent after 100,000+ cycles.
| Property | Property Value |
|---|---|
| sku | CM3PF06-P2 |
| Position | Please provide the specific AirTAC product attribute values you need translated, and I will return the accurate English terminology. |
| Port Size | Please provide the specific AirTAC product attribute values you need translated, and I will return the accurate English terminology. |
