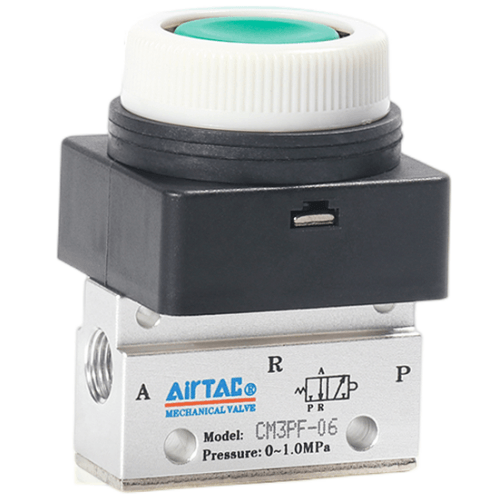

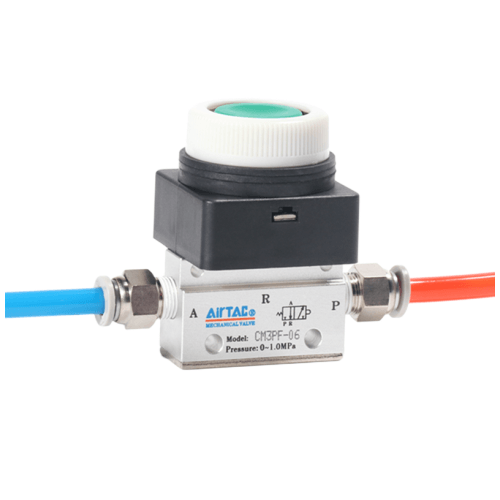

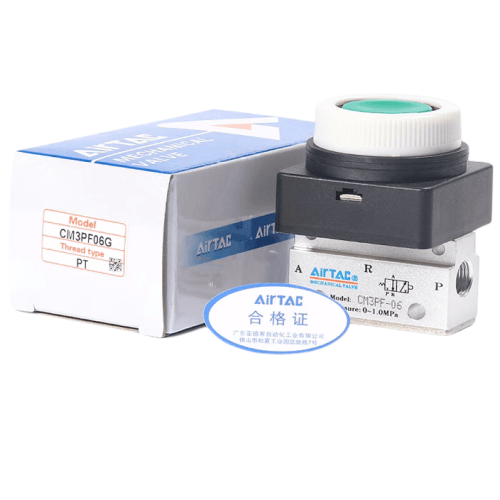

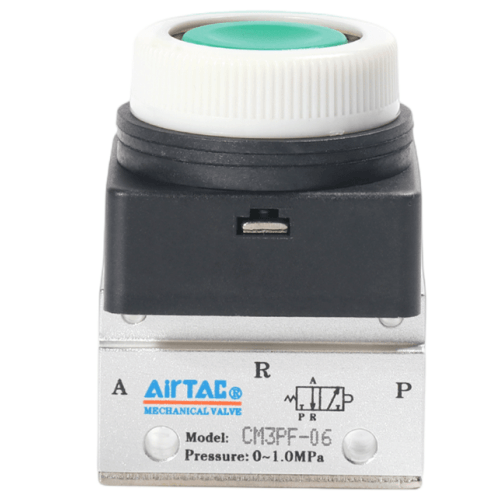

Airtac CM3PF Flat Push Button Mechanical Valve CM3PF06-P3
1. CM3B, CM3L, CM3V, and CM3R series require external force for directional switching, suitable for position detection or limit switch applications.
2. CM3PF, CM3PM, CM3PMS, CM3PMX, CM3PL, CM3PP, CM3HS, CM3HD, and CM3Y series feature manual operation with multi-configuration actuator heads for diverse operational conditions.
3. Shut-off type structure ensures excellent sealing performance, responsive direction switching, and lubrication-free operation.
4. Multi-position mounting capability enables flexible installation configurations.
5. CM3L, CM3V, CM3R, and CM3Y series incorporate metal actuator heads for enhanced durability and operational stability.
6. CM3PMS and CM3PMX series integrate metal protective covers to safeguard button caps and prevent accidental activation from external forces.
Category: Mechanical Valves | Brand: AirTAC | Series: CM3PF
AirTAC CM3PF06-P3 Flat-Head Push Button Mechanical Valve Specifications
- Model: CM3PF06-P3
- Type: 3/2-way mechanical valve (spring return)
- Port size: PT1/8 (G1/8 thread standard)
- Operating pressure: 0.05–0.7 MPa
- Manual override: Flat-head push button with 5mm stroke
- Body material: Anodized aluminum alloy
- Seal material: NBR (Nitrile rubber)
- Temperature range: -5℃ to 80℃
- Weight: 220g ±5g
- Dimensions: 58mm(L) × 36mm(W) × 38mm(H)
- Protection rating: IP54 (dust and water splash resistant)
- Mounting orientation: Any position (vertical recommended)
Robust manual override valve with ergonomic flat actuator design for precise tactile control. Features corrosion-resistant construction with hardened stainless steel internal components. Requires no electrical connection, making it ideal for emergency stops or maintenance operations. Compatible with ISO 15407-1 standards.
- Emergency stop systems in production lines
- Manual override for automated machinery
- Pneumatic training equipment
- Food processing manual control stations
- Packaging machine safety interlocks
Installation note:
Apply thread sealant on port connections. For horizontal mounting,
ensure button axis alignment with operator access direction.
Lubricate plunger quarterly with ISO VG32 hydraulic oil.
| Property | Property Value |
|---|---|
| sku | CM3PF06-P3 |
| Position | Please provide the specific AirTAC product attribute values you need translated, and I will return the accurate English terminology. |
| Port Size | Please provide the specific AirTAC product attribute values you need translated, and I will return the accurate English terminology. |
