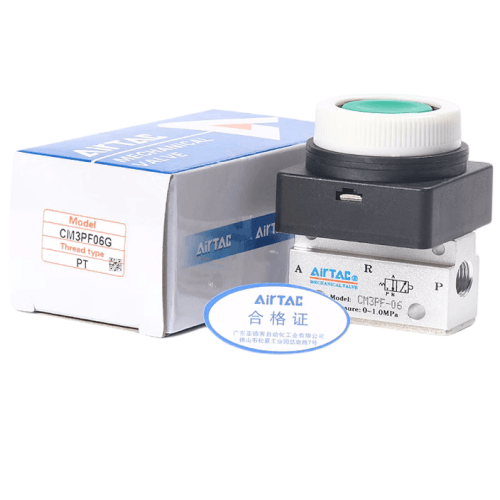

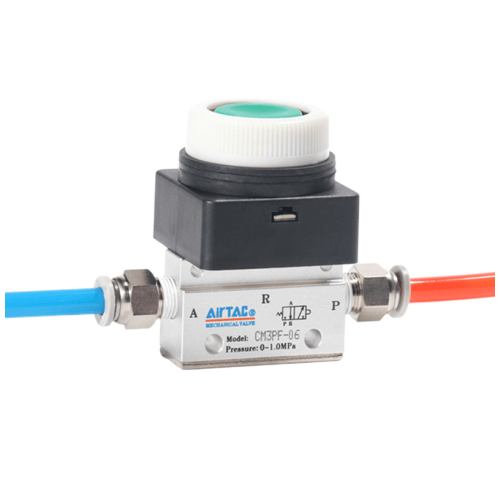

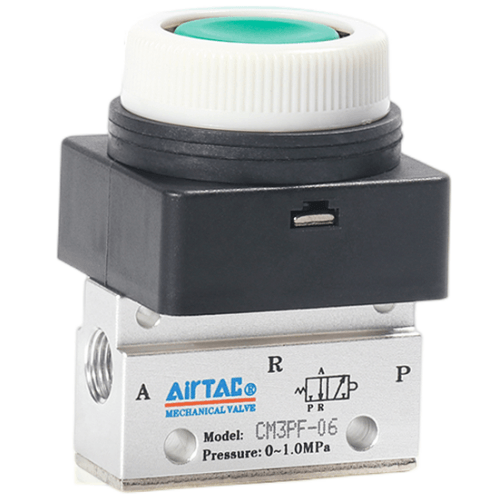

Airtac CM3PF Flat Push Button Mechanical Valve CM3PF06-P4
$9.73
Regular price
$17.23
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
CM3PF06-P4
Product type:
Collections:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
CM3PF Flat-Button Mechanical Valve (AirTAC CM3 Series
1. CM3B, CM3L, CM3V, and CM3R series require external force for directional switching, suitable for position detection or limit switch applications.
2. CM3PF, CM3PM, CM3PMS, CM3PMX, CM3PL, CM3PP, CM3HS, CM3HD, and CM3Y series feature manual operation with multi-configuration actuator heads for diverse operational conditions.
3. Shut-off type structure ensures excellent sealing performance, responsive direction switching, and lubrication-free operation.
4. Multi-position mounting capability enables flexible installation configurations.
5. CM3L, CM3V, CM3R, and CM3Y series incorporate metal actuator heads for enhanced durability and operational stability.
6. CM3PMS and CM3PMX series integrate metal protective covers to safeguard button caps and prevent accidental activation from external forces.
Category: Mechanical Valves | Brand: AirTAC | Series: CM3PF
Installation note:
Mount in accessible locations with minimum 15mm clearance for button depression.
Use Loctite 243 on mounting threads. Perform monthly seal inspections in high-cycle applications.
1. CM3B, CM3L, CM3V, and CM3R series require external force for directional switching, suitable for position detection or limit switch applications.
2. CM3PF, CM3PM, CM3PMS, CM3PMX, CM3PL, CM3PP, CM3HS, CM3HD, and CM3Y series feature manual operation with multi-configuration actuator heads for diverse operational conditions.
3. Shut-off type structure ensures excellent sealing performance, responsive direction switching, and lubrication-free operation.
4. Multi-position mounting capability enables flexible installation configurations.
5. CM3L, CM3V, CM3R, and CM3Y series incorporate metal actuator heads for enhanced durability and operational stability.
6. CM3PMS and CM3PMX series integrate metal protective covers to safeguard button caps and prevent accidental activation from external forces.
Category: Mechanical Valves | Brand: AirTAC | Series: CM3PF
AirTAC CM3PF06-P4 Flat-Head Push Button Mechanical Valve Specifications
- Model: CM3PF06-P4
- Type: 3/2-way manual reset mechanical valve (push button operation)
- Port size: PT1/8 (G1/8 optional)
- Operating pressure range: 0.05–0.8 MPa
- Max flow rate: 350 L/min (ANR)
- Actuation force: 3.5–4.5 N
- Body material: Nickel-plated brass
- Seal material: HNBR rubber (-20℃ to 80℃)
- Weight: 215g ±5g
- Dimensions: 54mm(L) × 34mm(W) × 40mm(H)
- Port thread depth: 9mm
- Mechanical life: ≥500,000 cycles
- Protection rating: IP67 (dust/water resistant)
Manual override valve with ergonomic flat-head design for tactile feedback and emergency operation. Features dual-stage sealing with wear compensation and anti-vibration lock nut. Compatible with ISO 15407-1 standards. Requires lubrication-free air (ISO 8573-1 class 3.4.3).
Typical Applications:
- Emergency stop systems in production lines
- Pneumatic cylinder manual override control
- Test bench pressure regulation
- Mobile hydraulic service units
- Semiconductor handling equipment
Installation note:
Mount in accessible locations with minimum 15mm clearance for button depression.
Use Loctite 243 on mounting threads. Perform monthly seal inspections in high-cycle applications.
| Property | Property Value |
|---|---|
| sku | CM3PF06-P4 |
| Position | Please provide the specific AirTAC product attribute values you need translated, and I will return the accurate English terminology. |
| Port Size | Please provide the specific AirTAC product attribute values you need translated, and I will return the accurate English terminology. |
