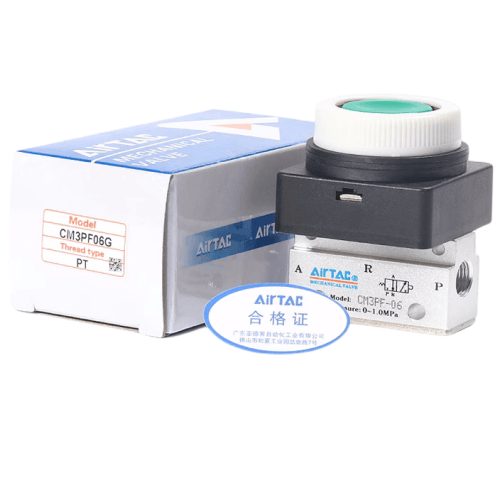

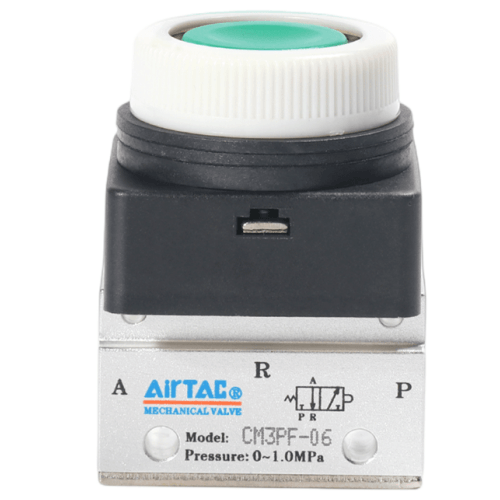

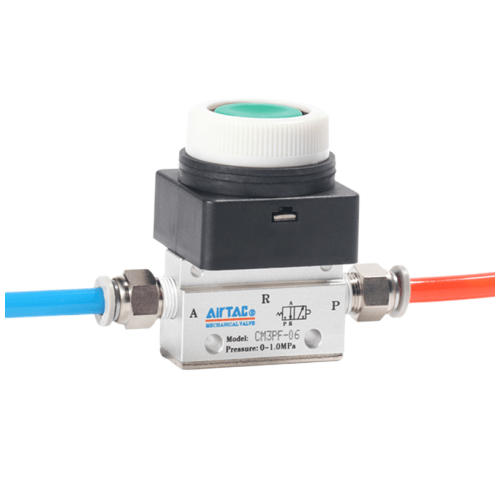

Airtac CM3PF Flat Push Button Mechanical Valve CM3PF06B
1. CM3B, CM3L, CM3V, and CM3R series require external force for directional switching, suitable for position detection or limit switch applications.
2. CM3PF, CM3PM, CM3PMS, CM3PMX, CM3PL, CM3PP, CM3HS, CM3HD, and CM3Y series feature manual operation with multi-configuration actuator heads for diverse operational conditions.
3. Shut-off type structure ensures excellent sealing performance, responsive direction switching, and lubrication-free operation.
4. Multi-position mounting capability enables flexible installation configurations.
5. CM3L, CM3V, CM3R, and CM3Y series incorporate metal actuator heads for enhanced durability and operational stability.
6. CM3PMS and CM3PMX series integrate metal protective covers to safeguard button caps and prevent accidental activation from external forces.
Category: Mechanical Valves | Brand: AirTAC | Series: CM3PF
AirTAC CM3PF06B Flat-Head Push Button Mechanical Valve Specifications
- Model: CM3PF06B
- Type: 3/2-way normally closed (manual push-button operation)
- Port size: PT1/8 (G1/8 thread standard)
- Operating pressure range: 0.1–0.8 MPa
- Max flow rate: 750 L/min (ANR)
- Actuation force: 3.5N ±0.5N
- Button stroke: 3.5mm ±0.3mm
- Seal material: NBR (Nitrile rubber)
- Body material: PBT resin (UL94 V-0 rated)
- Temperature range: -20℃ to 70℃ (no freezing)
- Weight: 180g ±5g
- Dimensions: 50mm(L) × 30mm(W) × 35mm(H)
- Mounting options: Panel mount (requires 16.5mm cutout diameter)
- Electrical rating: N/A (purely mechanical operation)
- Mechanical life: ≥500,000 cycles
- Protection rating: IP65 (when properly installed)
Manual override valve with tactile feedback, featuring a low-profile design for space-constrained installations. The chrome-plated brass stem and stainless steel spring ensure corrosion resistance in humid environments. Integrated O-ring prevents dust ingress during operation. Requires manual reset after actuation.
- Emergency stop systems in automated production lines
- Manual override for pneumatic clamping fixtures
- Maintenance bypass in packaging machinery
- Training equipment for pneumatics education
- Safety interlocks in woodworking machines
- Process control override in semiconductor handling systems
Installation notes:
- Mount with 0.5-1.5Nm torque using included M5 mounting nuts
- Ensure button axis alignment within ±3° of vertical
- Apply thread sealant (PTFE tape) on port connections
- Clean button mechanism monthly with IPA for smooth operation
| Property | Property Value |
|---|---|
| sku | CM3PF06B |
| Position | 3-Port 2-Position |
| Port Size | PT1/8 |
