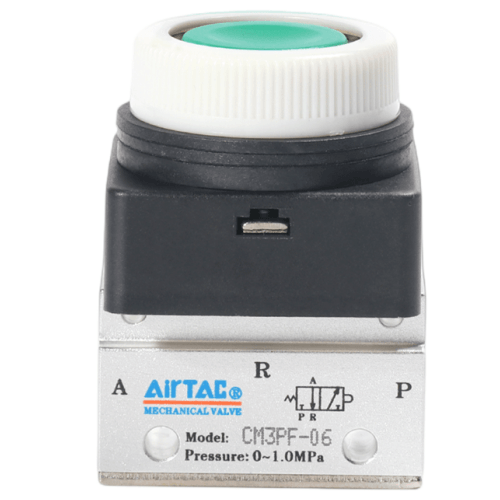

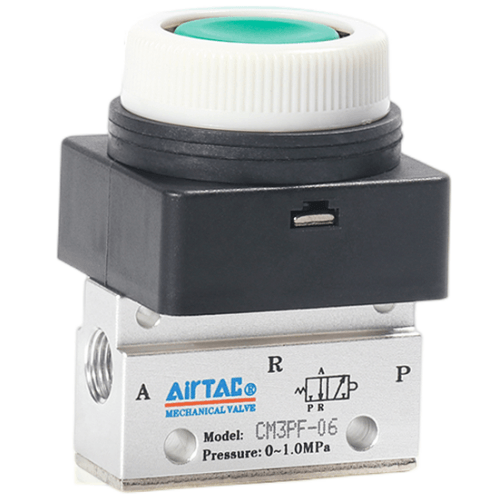

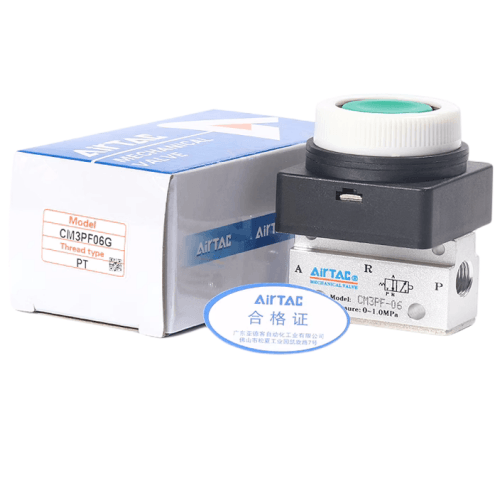

Airtac CM3PF Flat Push Button Mechanical Valve CM3PF06G
1. CM3B, CM3L, CM3V, and CM3R series require external force for directional switching, suitable for position detection or limit switch applications.
2. CM3PF, CM3PM, CM3PMS, CM3PMX, CM3PL, CM3PP, CM3HS, CM3HD, and CM3Y series feature manual operation with multi-configuration actuator heads for diverse operational conditions.
3. Shut-off type structure ensures excellent sealing performance, responsive direction switching, and lubrication-free operation.
4. Multi-position mounting capability enables flexible installation configurations.
5. CM3L, CM3V, CM3R, and CM3Y series incorporate metal actuator heads for enhanced durability and operational stability.
6. CM3PMS and CM3PMX series integrate metal protective covers to safeguard button caps and prevent accidental activation from external forces.
Category: Mechanical Valves | Brand: AirTAC | Series: CM3PF
AirTAC CM3PF06G Flat-Head Push Button Mechanical Valve Specifications
- Model: CM3PF06G
- Type: 3/2-way manual reset mechanical valve (spring return)
- Port size: PT1/8 (G1/8 thread standard)
- Operating pressure range: 0.05–1.0 MPa
- Button type: Mushroom head with emergency stop design
- Body material: Anodized aluminum alloy (black finish)
- Seal material: Heat-resistant NBR (Nitrile rubber)
- Temperature range: -10℃ to 80℃ (with intermittent peaks up to 120℃)
- Actuation force: 25N ± 3N
- Mounting style: Panel mount (10mm thickness max)
- Weight: 220g ±5g
- Dimensions: 48mm(D) × 48mm(W) × 85mm(H)
- Port orientation: Axial flow design (in-line connection)
- Protection rating: IP67 (dust/water resistant)
- Cycle life: ≥500,000 operations
Industrial-grade emergency stop valve featuring a lockable flat actuator with twist-to-release functionality. The chrome-plated steel spring ensures reliable reset action, while the dual O-ring design prevents leakage in high-vibration environments. Requires manual reset after activation.
- Safety circuits in injection molding machines
- Emergency stop systems for conveyor belts
- Press machine safety interlocks
- Robotic cell emergency shutdown
- Packaging line safety stations
Installation guidelines:
Mount with M5 fasteners (not included) using the 43mm × 43mm mounting pattern.
Ensure proper grounding when used in ESD-sensitive environments.
Lubricate pivot points every 6 months with ISO VG32 hydraulic oil.
| Property | Property Value |
|---|---|
| sku | CM3PF06G |
| Position | 3-Port 2-Position |
| Port Size | PT1/8 |
