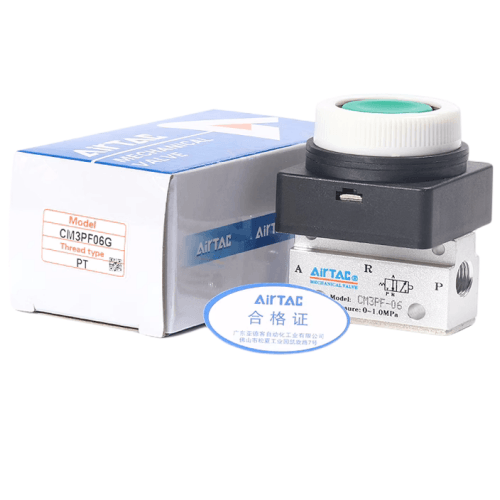

Airtac CM3PF Flat Push Button Mechanical Valve CM3PF06R
1. CM3B, CM3L, CM3V, and CM3R series require external force for directional switching, suitable for position detection or limit switch applications.
2. CM3PF, CM3PM, CM3PMS, CM3PMX, CM3PL, CM3PP, CM3HS, CM3HD, and CM3Y series feature manual operation with multi-configuration actuator heads for diverse operational conditions.
3. Shut-off type structure ensures excellent sealing performance, responsive direction switching, and lubrication-free operation.
4. Multi-position mounting capability enables flexible installation configurations.
5. CM3L, CM3V, CM3R, and CM3Y series incorporate metal actuator heads for enhanced durability and operational stability.
6. CM3PMS and CM3PMX series integrate metal protective covers to safeguard button caps and prevent accidental activation from external forces.
Category: Mechanical Valves | Brand: AirTAC | Series: CM3PF

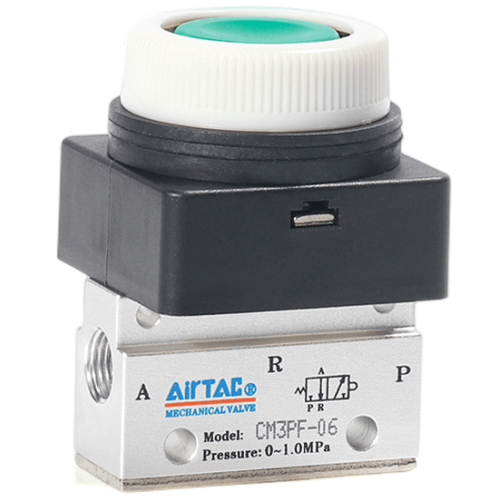

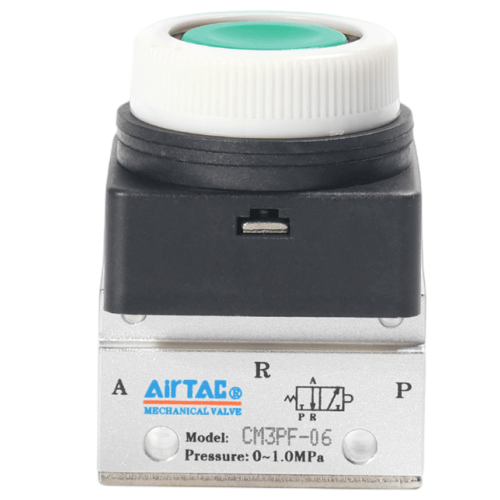

AirTAC CM3PF06R Flat-Head Push Button Mechanical Valve Specifications
- Model: CM3PF06R
- Type: 2-position 3-way manual reset valve (push button operation)
- Port size: G1/8 (ISO228 standard)
- Thread type: Parallel (BSPP)
- Operating pressure: 0.15–0.8 MPa (21.7–116 PSI)
- Max flow rate: 450 NL/min (ANR)
- Operating force: ≤25N (button actuation)
- Weight: 195g ±5g
- Dimensions: 53mm(L) × 34mm(W) × 44mm(H)
- Body material: Aluminum alloy (anodized surface)
- Seal material: HNBR rubber (-20℃ to 80℃)
- Temperature range: -20℃ to 80℃ (non-freezing)
- Port orientation: Axial flow design

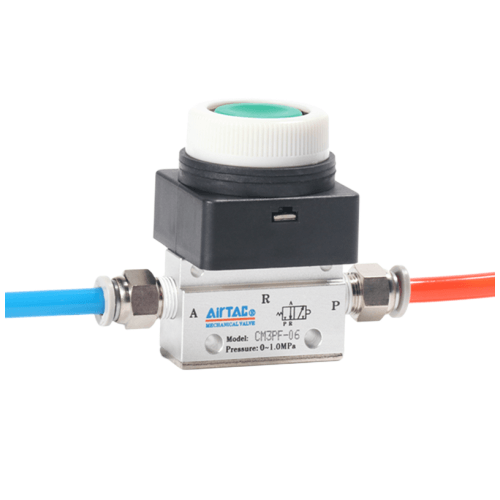

- Mounting options: Direct piping or subplate mounting
- Response time: Instant mechanical actuation
- Protection rating: IP65 (dust-tight & low-pressure water jet resistant)
Robust mechanical valve featuring a flush-mounted button with tactile feedback, designed for emergency stops or manual override in pneumatic systems. The through-hole flow path minimizes pressure drop, while the anti-corrosion coating ensures durability in humid environments. Includes a positive-lock mechanism to prevent accidental actuation.
- Safety circuits in automated production lines
- Manual override in packaging machinery
- Emergency air release in hydraulic power units
- Pneumatic training equipment in technical schools
- Process control systems in food processing (FDA-compliant seal option available)
Installation note:
For vertical mounting, ensure button faces accessible direction. Lubricate O-rings with silicone grease (MIL-G-81322E compliant) during assembly. Maximum recommended cycling: 60 operations/minute.
Do not use with aggressive media (e.g., chlorine gas). For vacuum applications, specify VM-series variant. Always install downstream filter (5μm or finer).
| Property | Property Value |
|---|---|
| sku | CM3PF06R |
| Position | 3-Port 2-Position |
| Port Size | PT1/8 |
