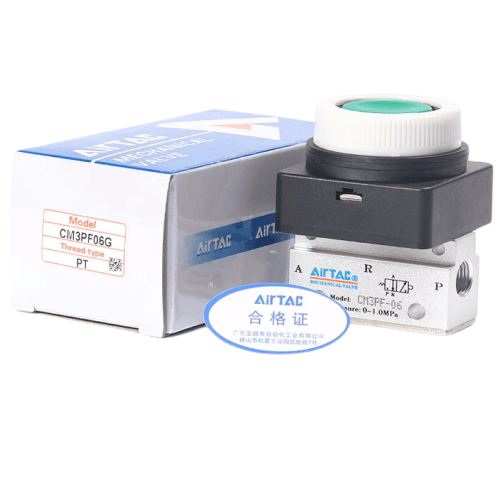

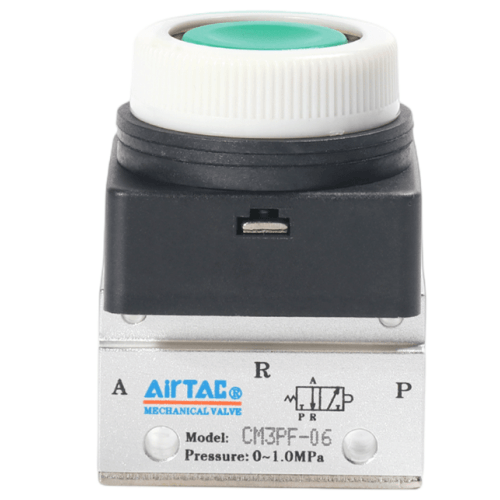

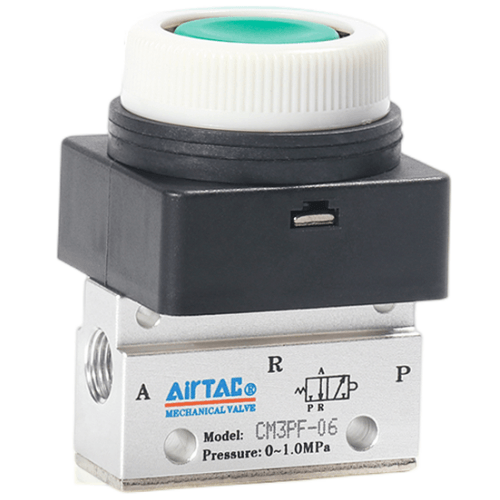

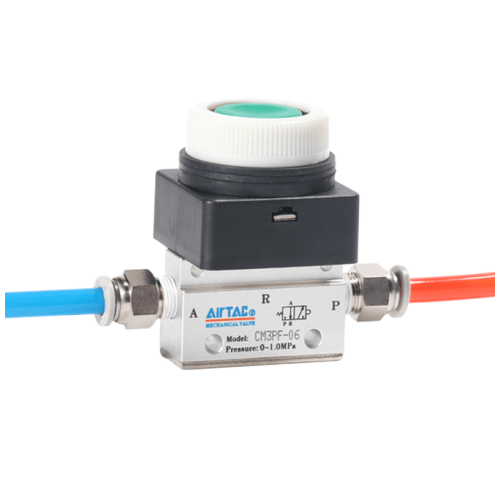

Airtac CM3PF Flat Push Button Mechanical Valve CM3PF08GG
1. CM3B, CM3L, CM3V, and CM3R series require external force for directional switching, suitable for position detection or limit switch applications.
2. CM3PF, CM3PM, CM3PMS, CM3PMX, CM3PL, CM3PP, CM3HS, CM3HD, and CM3Y series feature manual operation with multi-configuration actuator heads for diverse operational conditions.
3. Shut-off type structure ensures excellent sealing performance, responsive direction switching, and lubrication-free operation.
4. Multi-position mounting capability enables flexible installation configurations.
5. CM3L, CM3V, CM3R, and CM3Y series incorporate metal actuator heads for enhanced durability and operational stability.
6. CM3PMS and CM3PMX series integrate metal protective covers to safeguard button caps and prevent accidental activation from external forces.
Category: Mechanical Valves | Brand: AirTAC | Series: CM3PF
AirTAC CM3PF08GG Flat-Head Push Button Mechanical Valve Specifications
- Model: CM3PF08GG
- Type: 3-position (3P) 5-way mechanical valve with detent
- Port size: G1/8 (ISO228 standard)
- Operating pressure: 0.2–0.8 MPa (29–116 PSI)
- Max flow rate: 750 L/min (ANR)
- Actuation force: 30N ±5N
- Temperature range: -5℃ to 70℃ (no icing)
- Body material: Aluminum alloy (anodized finish)
- Seal material: Heat-resistant NBR (Nitrile rubber)
- Mounting style: Sub-base or direct piping
- Weight: 320g ±5g (excluding accessories)
- Dimensions: 52mm(L) × 40mm(W) × 76mm(H)
- Port thread depth: 10mm (full engagement recommended)
- Cycle life: ≥1,000,000 operations
- Compliance: RoHS 2.0 compliant
Manual override valve with positive center position lock, featuring tactile feedback and dust-resistant plunger design. The chrome-plated steel button head provides corrosion resistance in humid environments. Requires 5-40μm filtered compressed air with ISO 8573-1:2010 Class 3.4.3 air quality.
- Emergency stop systems in assembly lines
- Manual mode override in automated pneumatic circuits
- Position locking for clamping fixtures
- Mobile equipment control panels (cranes, lifts)
- Educational training rigs for mechatronics
Installation note:
Apply thread sealant (PTFE tape recommended) on port threads.
For vertical mounting, ensure button orientation faces downward
to prevent debris accumulation. Lubricate O-rings with silicone grease
during maintenance.
| Property | Property Value |
|---|---|
| sku | CM3PF08GG |
| Position | 3-Port 2-Position |
| Port Size | PT1/4 |
