Airtac CM3PF Flat Push Button Mechanical Valve CM3PF08RG
$24.41
Regular price
$31.91
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
CM3PF08RG
Product type:
Collections:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
CM3PF Flat-Button Mechanical Valve (AirTAC CM3 Series
1. CM3B, CM3L, CM3V, and CM3R series require external force for directional switching, suitable for position detection or limit switch applications.
2. CM3PF, CM3PM, CM3PMS, CM3PMX, CM3PL, CM3PP, CM3HS, CM3HD, and CM3Y series feature manual operation with multi-configuration actuator heads for diverse operational conditions.
3. Shut-off type structure ensures excellent sealing performance, responsive direction switching, and lubrication-free operation.
4. Multi-position mounting capability enables flexible installation configurations.
5. CM3L, CM3V, CM3R, and CM3Y series incorporate metal actuator heads for enhanced durability and operational stability.
6. CM3PMS and CM3PMX series integrate metal protective covers to safeguard button caps and prevent accidental activation from external forces.
Category: Mechanical Valves | Brand: AirTAC | Series: CM3PF
Operation note:
Apply maximum 0.6Nm torque during installation. For frequent manual operation (>50 cycles/hour),
periodic lubrication of the plunger shaft is recommended. Avoid side-loading the button during actuation.
1. CM3B, CM3L, CM3V, and CM3R series require external force for directional switching, suitable for position detection or limit switch applications.
2. CM3PF, CM3PM, CM3PMS, CM3PMX, CM3PL, CM3PP, CM3HS, CM3HD, and CM3Y series feature manual operation with multi-configuration actuator heads for diverse operational conditions.
3. Shut-off type structure ensures excellent sealing performance, responsive direction switching, and lubrication-free operation.
4. Multi-position mounting capability enables flexible installation configurations.
5. CM3L, CM3V, CM3R, and CM3Y series incorporate metal actuator heads for enhanced durability and operational stability.
6. CM3PMS and CM3PMX series integrate metal protective covers to safeguard button caps and prevent accidental activation from external forces.
Category: Mechanical Valves | Brand: AirTAC | Series: CM3PF

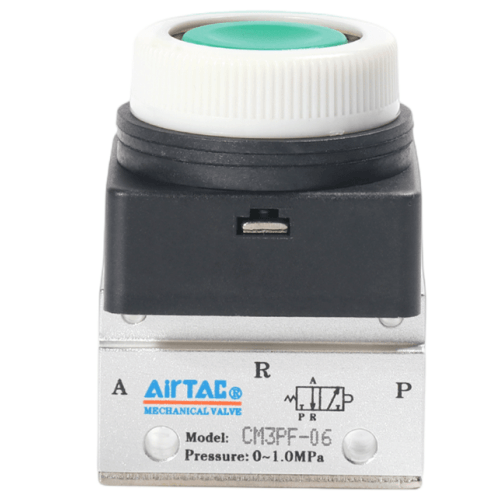

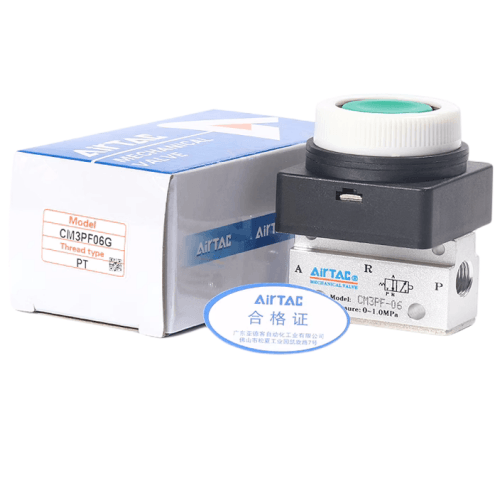

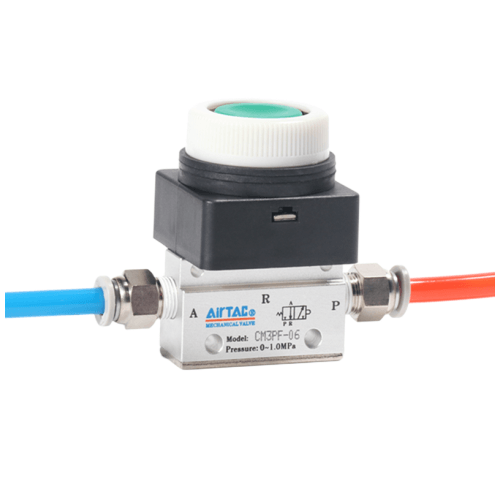

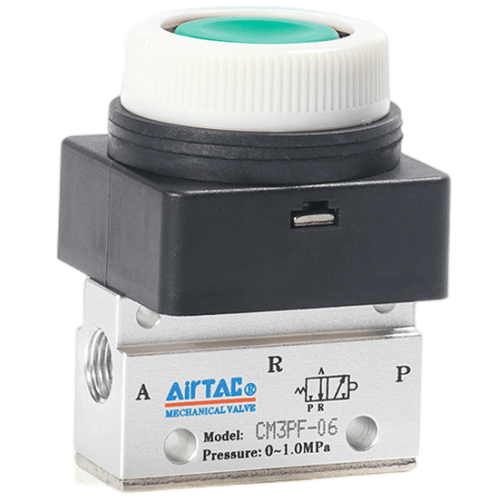

AirTAC CM3PF Flat Head Push Button Mechanical Valve CM3PF08RG Specifications
- Model: CM3PF08RG
- Type: 3/2-way mechanical valve (spring return)
- Operation: Manual push-button actuation
- Port size: PT1/8 (G1/8 thread standard)
- Operating pressure: 0.05–0.8 MPa
- Max flow rate: 750 L/min (ANR)
- Body material: Aluminum alloy (hard anodized)
- Seal material: HNBR rubber (oil & heat resistant)
- Temperature range: -10℃ to 80℃
- Weight: 285g ±5g
- Dimensions: 52mm(L) × 34mm(W) × 68mm(H)
- Port connection: ISO 228/1 standard
- Actuation force: 3.5N ±0.5N
- Protection rating: IP67 (dust/water resistant)
- Cycle life: ≥500,000 operations
Robust manual override valve with tactile feedback, featuring anti-corrosion treatment and ergonomic button design. The chrome-plated steel spring ensures consistent return force across temperature variations. Includes dust-proof cap for port protection during storage.
Typical Applications:
- Emergency stop systems in production lines
- Pneumatic fixture manual override
- Training rigs for industrial automation education
- Mobile hydraulic equipment test benches
- Compressed air system maintenance bypass
Operation note:
Apply maximum 0.6Nm torque during installation. For frequent manual operation (>50 cycles/hour),
periodic lubrication of the plunger shaft is recommended. Avoid side-loading the button during actuation.
Compatibility:
Compatible with ISO 8573-1:2010 Class 3 compressed air (max 5mg/m³ oil content).
Not suitable for vacuum applications or aggressive gases.
| Property | Property Value |
|---|---|
| sku | CM3PF08RG |
| Position | 3-Port 2-Position |
| Port Size | PT1/4 |
