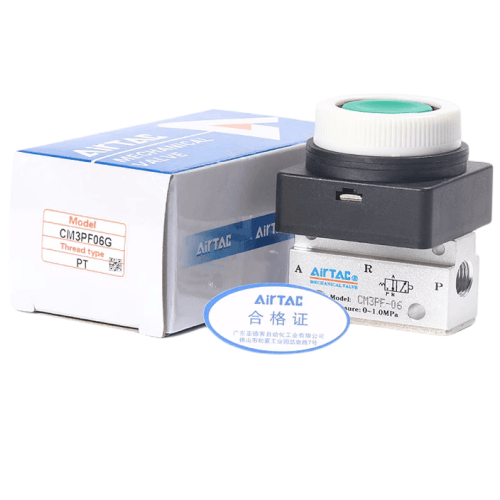

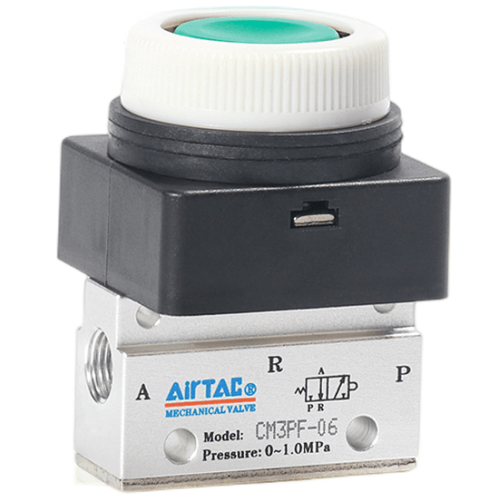

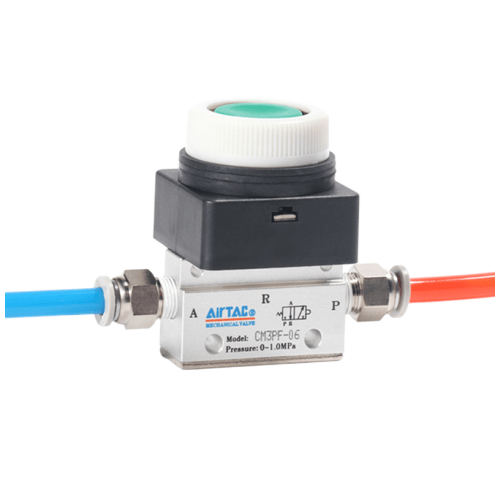

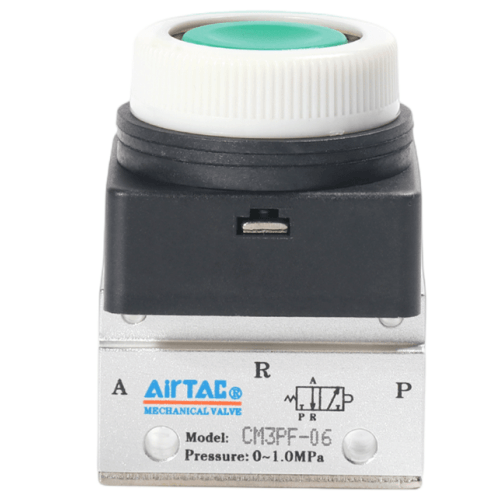

Airtac CM3PF Flat Push Button Mechanical Valve CM3PF08Y
1. CM3B, CM3L, CM3V, and CM3R series require external force for directional switching, suitable for position detection or limit switch applications.
2. CM3PF, CM3PM, CM3PMS, CM3PMX, CM3PL, CM3PP, CM3HS, CM3HD, and CM3Y series feature manual operation with multi-configuration actuator heads for diverse operational conditions.
3. Shut-off type structure ensures excellent sealing performance, responsive direction switching, and lubrication-free operation.
4. Multi-position mounting capability enables flexible installation configurations.
5. CM3L, CM3V, CM3R, and CM3Y series incorporate metal actuator heads for enhanced durability and operational stability.
6. CM3PMS and CM3PMX series integrate metal protective covers to safeguard button caps and prevent accidental activation from external forces.
Category: Mechanical Valves | Brand: AirTAC | Series: CM3PF
AirTAC CM3PF08Y Flat-Head Push Button Mechanical Valve Specifications
- Model: CM3PF08Y
- Type: 3/2-way manual reset mechanical valve (push button operation)
- Port size: PT1/8 (G1/8 optional)
- Operating pressure: 0.05–0.7 MPa
- Operating medium: Filtered compressed air (lubricated or non-lubricated)
- Flow capacity: 450 L/min (ANR)
- Button stroke: 3.5±0.5mm
- Actuation force: 4.5N max
- Weight: 220g ±5%
- Dimensions: 38mm(L) × 34mm(W) × 50mm(H)
- Body material: Anodized aluminum alloy
- Seal material: HNBR (hydrogenated nitrile) for improved chemical resistance
- Temperature range: -10℃ to 80℃ (with silicone seals optional for -20℃ to 120℃)
- Protection rating: IP67 (dust tight and protected against temporary immersion)
- Mounting: Direct panel mounting with M5 threaded holes
Industrial-grade manual override valve featuring tactile feedback and positive lock mechanism. The flat-head design prevents accidental actuation while allowing glove-friendly operation. Features double-seal construction with wear compensation for extended service life in high-cycle applications. Compatible with ISO 15407-1 standards for pneumatic valve mounting.
- Emergency stop override in automated production lines
- Manual material positioning in CNC machine tools
- Safety circuit testing in packaging machinery
- Process override in semiconductor handling equipment
- Maintenance bypass in automotive assembly jigs
Operation guidance:
Press firmly until audible click confirms valve actuation. For vertical mounting,
ensure button faces accessible direction. Perform monthly seal inspections
in high-humidity environments. Not recommended for continuous duty cycles
exceeding 5 operations/minute.
| Property | Property Value |
|---|---|
| sku | CM3PF08Y |
| Position | 3-Port 2-Position |
| Port Size | PT1/4 |
